Home > Products > Marine Auxiliary Machinery > 2CY Series Marine Hydraulic Gear Oil Pump
2CY Series Marine Hydraulic Gear Oil Pump
- 800 Set / Sets per Month
- chongqing
- T/T Credit Card
Product Details
| Brand Name: | BOCHI | Place of Origin: | Chongqing, China | Model Number: | 2CY |
| Power: | Electric | ||||
| Usage: | Oil | Theory: | Rotary Pump | Standard or Nonstandard: | Standard |
| Structure: | Gear Pump | Pressure: | High Pressure |
Packaging Details
As customer required">Gear Oil Pump: Paked in wooden case,
As customer required
Product Description

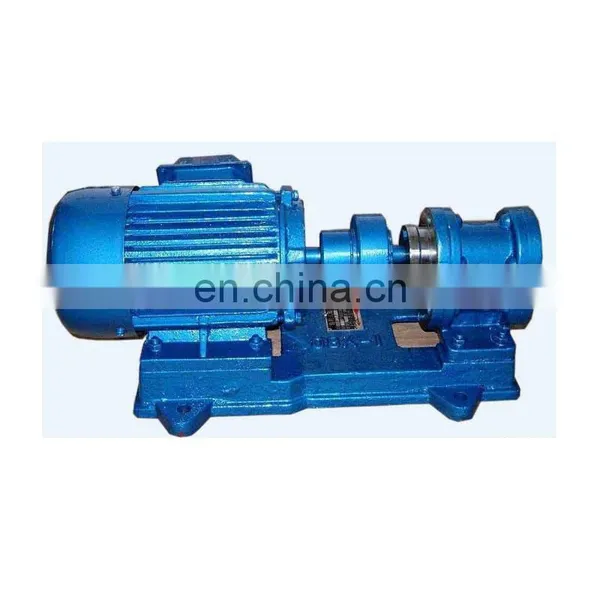

2CY Series Marine Gear Oil Pump
2CY gear lubrication pump is for oil or equivalent liquid without solids and fiber with normal temperature below 300°C. It is mainly used as oil delivering pump or boost pump in oil system.
Stainless steel type can be used for conveying weak corrosive liquid and food beverage.
High pressure: max 2.5Mpa
Copper gear can be used for transptation of low flash point liquid E.g.: gasoline, benzene.
Stainless steel type is suitable for weak corrosive liquid and beverage.
Normally temperature of liquid should not be over 70 celsius degree.
High temperature material can resist liquid with temperature no more than 300 degree.
Crude oil, lubricants, diesel oil, oil-type liquid.
| Model | Type | Motor | Flow | Speed | Exhaust Pressure | Npshr | Efficiency | ||
| Type | Power(kw) | m3/h | L/min | r/min | Mpa | m | % | ||
| BMMAETEGP001 | 2CY-1.08/2.5 | Y100L1-4 | 2.2 | 1.08 | 18 | 1420 | 2.5 | 5.5 | 58 |
| BMMAETEGP002 | 2CY-2.1/2.5 | Y100L2-4 | 3 | 2.1 | 35 | 1420 | 2.5 | 5.5 | 58 |
| BMMAETEGP003 | 2CY-3/2.5 | Y112M-4 | 4 | 3 | 50 | 1440 | 2.5 | 5.5 | 59 |
| BMMAETEGP004 | 2CY-4.2/2.5 | Y132S-4 | 5.5 | 4.2 | 70 | 1440 | 2.5 | 5.5 | 62 |
| BMMAETEGP005 | 2CY-7.5/2.5 | Y132M-4 | 7.5 | 7.5 | 125 | 1440 | 2.5 | 5.5 | 63 |
| BMMAETEGP006 | 2CY-12/2.5 | Y160L-4 | 15 | 12 | 200 | 1460 | 2.5 | 5.5 | 61 |
| BMMAETEGP007 | 2CY-21/2.5 | Y200L-4 | 30 | 21 | 350 | 1440 | 2.5 | 5.5 | 60 |
BOCHI CORPORATION is a total solution provider with his head office in Chongqing. We are able to provide value added services and qualified marine equipments.
1. Punctual delivery time:
- We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
- Shipping notice/ insurance to you as soon as your order is shipped.
2. After sales service:
- After receive the goods, We accept ur feedback at first time.
- We could provide installation guide, if you have need, we could give you global service.
- Our Sales are 24-hours online for ur request
3. Professional sales:
- We value every inquiry sent to us, ensure quick competitive offer.
- We cooperate with customer to bid tenders. Provide all necessory docuement.
- We are a sales team, with all techinical support from engineer team.
Bochi Have many global clients, we offer professional service to them. With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.
