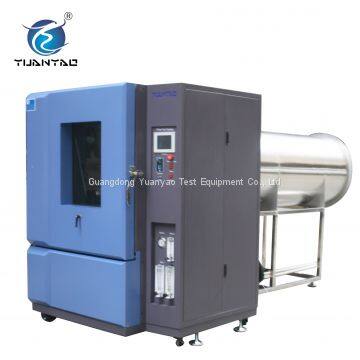

IPX4 LED lamp water resistance testing equipment(YSRT-IPX4)
Introduction&Application:
IPX4 LED lamp water resistance testing equipment simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
Feature:
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.

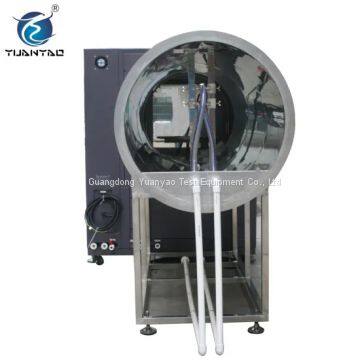

2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4. Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.
Technical parameters: See the label.
Except IPX4 LED lamp water resistance testing equipment, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
| Specification | |||||
| Model | YSRT-1728-A | YSRT-1728-E(IEC-529)(CNS14165) | |||
| Internal Dim.WHD(mm) | 1200×1200×1200 | 1200×1200×1200 | |||
| External Dim.WHD(mm) | 1750×1850×1300 | 1750×1850×1300 | |||
| Water Temp. | Normal | Normal | |||
|
Spray Type |
Total water flow(L/min) |
R1 | 1.8 | IP×1 | With in 1--1.5mm/min(In drip box) |
| R2 | 3.2 | IP×2 | With in 3--3.5mm/min(In drip box) | ||
| S1 | 24.5 | IP×3 | angle±600,R:400mm,1.1L/min | ||
| S2 | 39.2 | IP×4 | angle±1800,R:400mm,1.8L/min | ||
|
Preesure of spray nozzle (kgf/cm 2 ) |
R1 | 0.1 | 1.Flow rate of the water=0.07L/min 2.IP×3,Radius:400mm,Number or open holes=16,total water flow:1:1L/min. 3.IP×4,Radius:400mm,Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm.(For IP×3,IPx4) |
||
| R2 | 0.3 | ||||
| S1 | 1 | ||||
| S2 | 3 | ||||
| (RPM)Test Specimen Frame | 17RPM | 1RPM | |||
|
Spray Nozzle Rotation Speed |
23RPM |
Swing 60°from vertical for 4 seconds at one time Swing 180°from vertical for 12 seconds at one time |
|||
|
Material |
Interior | SUS#304 | |||
| Exterior | |||||
| Other Components | Chamber lamp.Wiper casters with Adjusters |
Chamber lamp.Wiper,casters with Adjusters | |||
| Power Source[K.W] | AC 1Ψ 220V 60/50Hz 4KW | ||||
