Chinese Factory Toughened Glass Tempering Furnace Manufacturers

FOB Price

USD $150,000 - $250,000 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card
Delivery Detail90 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Lever	Place of Origin	China
Model Number	LV-TFQ1830	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 YEAR
Weight	30000KGS	Dimension(LWH)	18406 * 2740 * 2500mm
Production Capacity	98%	Condition	New
Voltage	380V, 415V,440V	Power(W)	according to size
Machine Type	Glass Tempering Furnace

Product Description

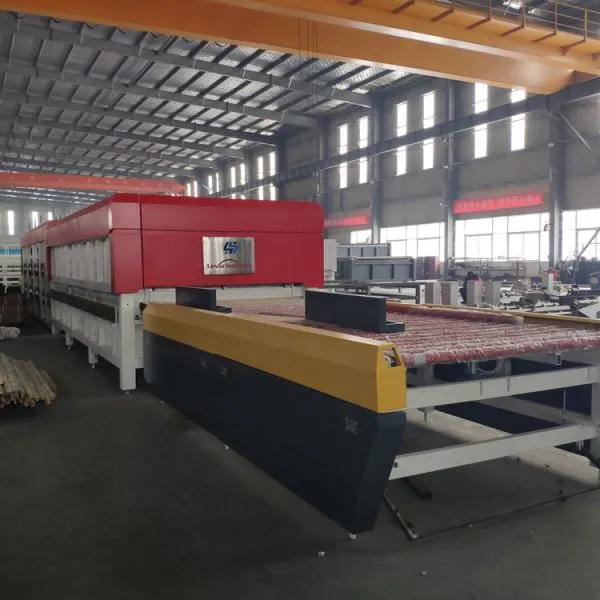

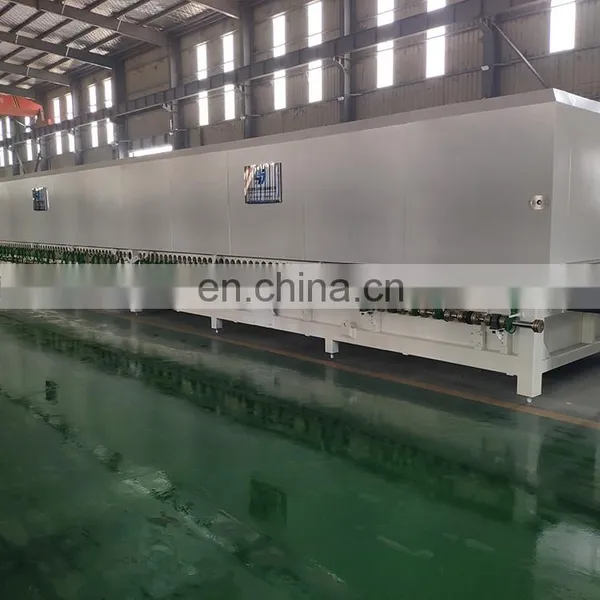

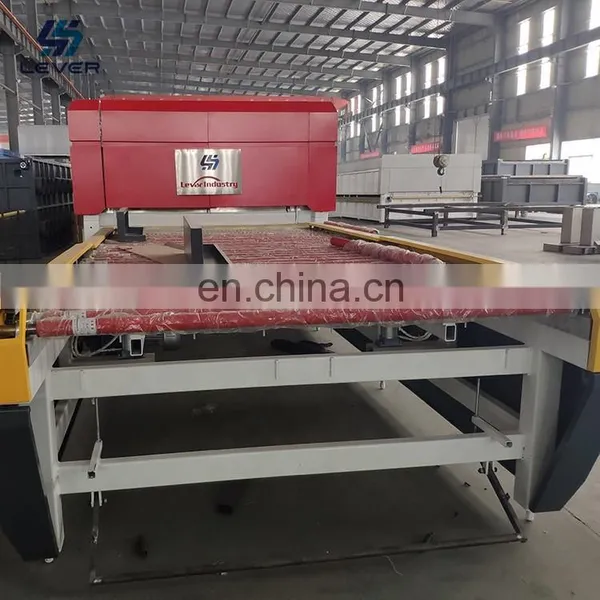

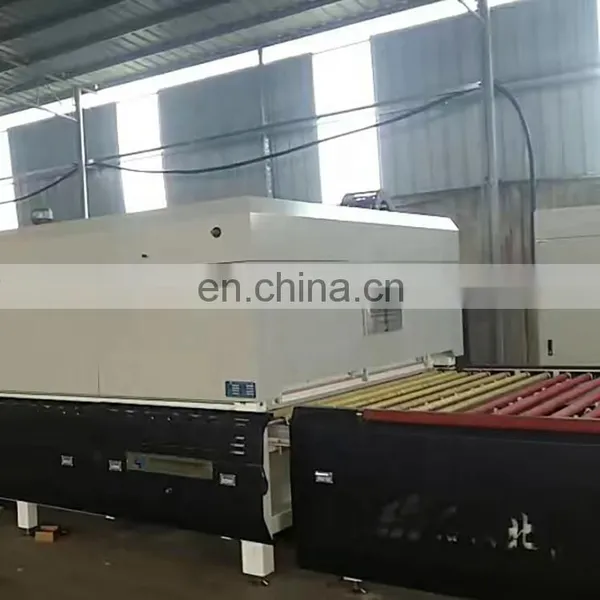

Horizontal Rollers Flat Glass Tempering Furnace Toughened Plant for offline Low-e coated glass

Product Description

Q Series Forced Fans Convection Flat Glass Tempering furnace

Lever Q series Forced Fans Convection Flat Glass Tempering furnace is a plant specially used to produce the offline coated Low-e flat tempered glass and thermal strengthened glass with high quality and good performance, which mainly used in the fields of architecture (doors, windows), shower room, home appliance, garden fence, elevator, furniture, etc.

Popular Machine model for your option in below, also customized available.

Model	Flat Tempered Glass (mm)
Model	Max. Size (mm)	Min. Size(mm)	Thickness (mm)	Capacity 5mm (Loads/Hour)
LV-TF0812	800x1200	100x150	3-19	15-16
LV-TF1225	1200X2500	100x250	3-19	15-16
LV-TF1525	1500X2500	100x250	3-19	15-16
LV-TF1742	1700X4200	100x250	3-19	15-16
LV-TF1836	1800X3600	100x250	4-19	15-16
LV-TF2036	2000X3600	150x280	4-19	15-16
LV-TF2242	2200X4200	150x280	4-19	15-16
LV-TF2436	2440X3660	150x280	4-19	15-16
LV-TF2442	2440X4200	150x320	5-19	15-16
LV-TF2450	2440X5000	150x280	4-19	15-16
LV-TF2860	2800X6000	200x350	5-19	15-16
LV-TF3060	3000X6000	200x350	5-19	15-16
LV-TF3360	3300X6000	200x500	5-19	15-16
LV-TF3380	3300X8000	200x500	5-19	14-15
LV-TF33120	3300X12000	200x500	5-19	14-15

Our Advantages

Our machines' advantage compared to others,
* Multiple belt driving for ceramic rollers.
* Our heating elements adopt the gapless design heating (parallelogram shape), which could make the heating more even and improve
the finished product rate and better product quality.
* We use helical gear type reducer for driving, more reliable & stable running. Others use cheap cycloidal needle type reducer.
* use the same top quality insulating materials for whole heating oven (inner side and outer side), save energy consumption.
* Independent Nozzles for upper quench.
* More air inlets in quenching section, which guarantee more homogeneous air blowing.
