Servicio Post-venta Buen Precio Maquina Templadora De Vidrio

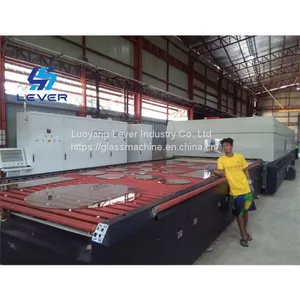

Servicio Post-venta Buen Precio Maquina Templadora De Vidrio thumbnail-1
Servicio Post-venta Buen Precio Maquina Templadora De Vidrio photo-1
US$ 150,000 - 250,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lever
Place of Origin:
China
Model Number:
LV-TFQ1830
Contact Supplier Request Quote Chat Now
Luoyang Lever Industry Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
90 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lever
Place of Origin China
Model Number LV-TFQ1830
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 YEAR
Weight 30000KGS
Dimension(L*W*H) 18406 * 2740 * 2500mm
Production Capacity 98%
Condition New
Voltage 380V, 415V,440V
Power(W) according to size
Machine Type Glass Tempering Furnace

Horizontal Rollers Flat Glass Tempering Furnace Toughened Plant for offline Low-e coated glass

Product Description
Q Series Forced Fans Convection Flat Glass Tempering furnace
Lever Q series Forced Fans Convection Flat Glass Tempering furnace is a plant specially used to produce the offline coated Low-e flat tempered glass and thermal strengthened glass with high quality and good performance, which mainly used in the fields of architecture (doors, windows), shower room, home appliance, garden fence, elevator, furniture, etc.
Popular Machine model for your option in below, also customized available.
Model
Flat Tempered Glass (mm)
Max. Size (mm)
Min. Size(mm)
Thickness
(mm)
Capacity 5mm
(Loads/Hour)
LV-TF0812
800x1200
100x150
3-19
15-16
LV-TF1225
1200X2500
100x250
3-19
15-16
LV-TF1525
1500X2500
100x250
3-19
15-16
LV-TF1742
1700X4200
100x250
3-19
15-16
LV-TF1836
1800X3600
100x250
4-19
15-16
LV-TF2036
2000X3600
150x280
4-19
15-16
LV-TF2242
2200X4200
150x280
4-19
15-16
LV-TF2436
2440X3660
150x280
4-19
15-16
LV-TF2442
2440X4200
150x320
5-19
15-16
LV-TF2450
2440X5000
150x280
4-19
15-16
LV-TF2860
2800X6000
200x350
5-19
15-16
LV-TF3060
3000X6000
200x350
5-19
15-16
LV-TF3360
3300X6000
200x500
5-19
15-16
LV-TF3380
3300X8000
200x500
5-19
14-15
LV-TF33120
3300X12000
200x500
5-19
14-15
Our Advantages
Our machines' advantage compared to others,
* Multiple belt driving for ceramic rollers.
* Our heating elements adopt the gapless design heating (parallelogram shape), which could make the heating more even and improve
the finished product rate and better product quality.
* We use helical gear type reducer for driving, more reliable & stable running. Others use cheap cycloidal needle type reducer.
* use the same top quality insulating materials for whole heating oven (inner side and outer side), save energy consumption.
* Independent Nozzles for upper quench.
* More air inlets in quenching section, which guarantee more homogeneous air blowing.

Product Tags: Tempered glass making machine , glass toughening machine , toughened glass making machine
