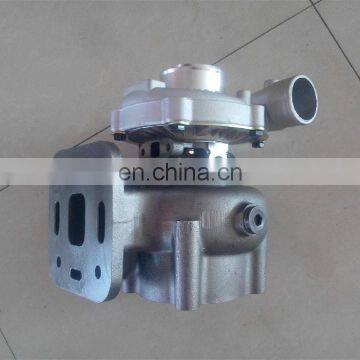

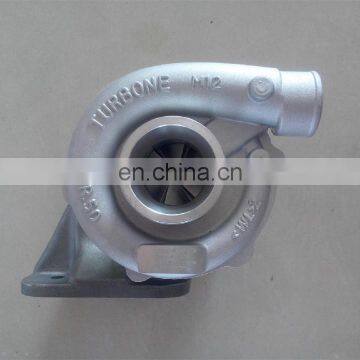

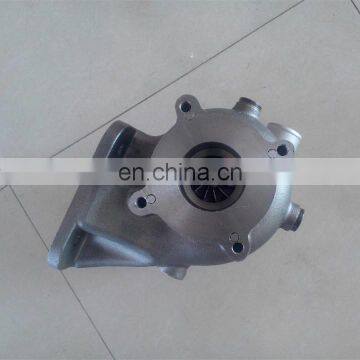

HX40M Turbo 3536621 3802829 6BTA Turbocharger for Cummins Marine 6BTAM B-series Engine
US$ 200 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Junfeng TURBO
Place of Origin:
Jiangsu, China
Model Number:
HX40M
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Turbo Charger H1C 3522900 3802290 J908293 4BTA Turbocharger for Cummins Industrial Engine Elite With 4TA-390 Diesel Engine PartsUS$ 50 - 350MOQ: 1 Set -
H1C Turbo 3522900 3802290 J919133 4BTA Turbocharger for Cummins 3.9L Diesel EngineUS$ 50 - 350MOQ: 1 Set
-
Turbo H1C 3522900 3802290 3528743 4BTA Turbocharger for Cummins Industrial Engine Elite With 4TA-390 Diesel Engine PartsUS$ 50 - 350MOQ: 1 Set
-
1988-04 Chrysler Various H1C Turbo 3526739 3528771, 3528772US$ 50 - 500MOQ: 1 Set
-
TURBO CHARGER WH1E 3530994 3802256 THE HIGHT QUALITYUS$ 20 - 300MOQ: 1 Set
Brand Name
Junfeng TURBO
Place of Origin
Jiangsu, China
Model Number
HX40M
Warranty
3 Miles
HX40M Turbo 3536621 3802829 6BTA turbocharger for Cummins Marine 6BTAM B-series Engine
Product Description
| Part Number | 3536621 |
| Previous Part Number | 3536620 |
| Description | Marine |
| OE number | 3802829 |
| CHRA | 4027283 NEW IN STOCK |
| Turbo Model | HX40M, HX40-L8294T/J16S3 |
| Engine | 6BTAM, B-series |
| Displacement | 5.9L, 5900 ccm, 6L Cylinders |
| KW | 280/315/355 HP |
| NSN | 2950-01-484-8749, 2950014848749 |
| Fuel | Diesel |
| Engine Manufacturer | Cummins |
| Angle α (compressor housing) | 241 |
| Angle β (turbine housing) | 301 |
| Bearing Housing | 3532632/4027869 NEW IN STOCK |
| Turbine Wheel | 3536624 NEW IN STOCK |
| Comp. Wheel | 3599591 (Ind. 60. mm, Exd. 83. mm, 8+8, super-back) NEW IN STOCK |
| Back plate | 3530923 (1154351300) NEW IN STOCK |
| Heat shield Number | 3519302 (1152301340) NEW IN STOCK |
| Repair Kit | 3575169 (1153035750) NEW IN STOCK |
| Turbine Housing (Water-Cooled) | 3537678 |
| Compressor Cover | 3536623 |
| Gasket (turbine inlet) | 210849 (Stainless Steel) |
| Gasket (turbine outlet) | 210850 (Inox Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
Application
1995-06 Cummins Marine with 6BTAM Engine
Product Show
Material Description
Factory Information
Package
Packaging Details: Neutral Carton, one turbo in one carton
Delivery Detail: within 7 days after your payment arrives
