2008-14 BMW Z4 (E89), X1 (E84), 5 Touring (F11), 5 (F10), 3 (F30), 1 (F20)TD04 Turbo 49477-02003
Product Description
| Part Number | 49477-02003 |
| Previous Version | 49U77-02003, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005, 49477-02006, 49477-02007, 49477-02008, 49477-02051, 49477-02052, 49477-02053, 49477-02054, 49477-02055, 49477-02056, 49477-02057, 49477-02058 |
| OE number | 11657588938, 11657635803, 7588938, 7588938-09, 7588938-10, 7588938-11, 7588938AI07, 7588938AI08, 7588938AI10, 7588938AI11, 7588938AI12, 7588938AI13, 7588938AI14, 11657630462, 11657634486, 11657635804, 11657642469, 763448602, 7635803, 7642469, 8635804 |
| RPM Max | 4250/5550 |
| MHI | 49U77-02003, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005, 49477-02006, 49477-02007, 49477-02008, 49477-02051, 49477-02052, 49477-02053, 49477-02054 49477-02055, 49477-02056, 49477-02057, 49477-02058 |
| Description | BMW Z4 28 i (E89), Z4 20 i (E89), X3 20 i (F25), X1 20 i (E84), X1 28 i (E84), 528 i (F10/F11), 520 i (F10/F11), 328 i (F30), 320 i (F30), 125 i (F20), Peugeot 508 2.2 HDi FAP 205 |
| CHRA | Pending (49477-09000) |
| Turbo Model | TD04, TD04LR6, TD04LR6-04HR*15TK31-6.0T |
| Engine | N20B20, DW12C |
| Displacement | 2.0 L, 1997 ccm |
| KW | 135/150/180/218/245 HP |
| RPM Max | 4250/5550 |
| Fuel | Gas |
| Bearing housing | Oil & water cooled system |
| Compressor side | TRIM 60 A/R 0.56 |
| Turbine side | TRIM 78 A/R 0.51 |
| Actuator | 49477-19812/49477-19806/49477-19811 |
| NOTE | Complete with actuator |
Applications
2012-02 BMW 320i (F30, F35, F80) with N20B20 Engine
2012-02 BMW 320i (F30, F35, F80) with N20B20 Engine
2011-11 BMW 320i xDrive (F30, F35, F80) with N20B20 Engine
2011-10 BMW 328i (F30, F35, F80) with N20B20 Engine
2011-10 BMW 328i (F30, F35, F80) with N20B20 Engine
2011-10 BMW 328i xDrive (F30, F35, F80) with N20B20 Engine
2012-06 BMW 328i Touring (F31) with N20B20 Engine
2011-09 BMW 520i (F10, F18) with N20B20 Engine
2011-09 BMW 520i (F10, F18) with N20B20 Engine
2011-09 BMW 528i (F10, F18) with N20B20 Engine
2011-09 BMW 528i xDrive (F10, F18) with N20B20 Engine
2011-09 BMW 520i Touring (F11) with N20B20 Engine
2011-09 BMW 528i Touring (F11) with N20B20 Engine
2011-09 BMW 528i xDrive Touring (F11) with N20B20 Engine
2011-09 BMW X1 sDrive 20i (E84) with N20B20 Engine
2011-09 BMW X1 xDrive 20i (E84) with N20B20 Engine
2011-04 BMW X1 xDrive 28i (E84) with N20B20 Engine
2011-09 BMW X3 xDrive 20i (F25) N20B20 Engine
2011-08 BMW X3 xDrive 28i (F25) with N20B20 Engine
2011-09 BMW Z4 sDrive 20i (E89) with N20B20 Engine
2011-09 BMW Z4 sDrive 28i (E89) with N20B20 Engine
2011- Peugeot 508 2.2L, HDi FAP 205 with DW12C Engine

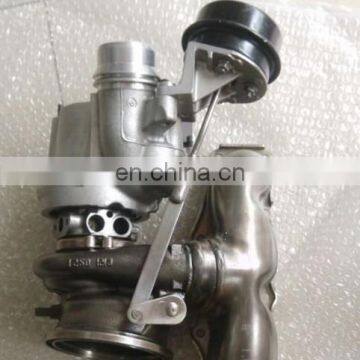

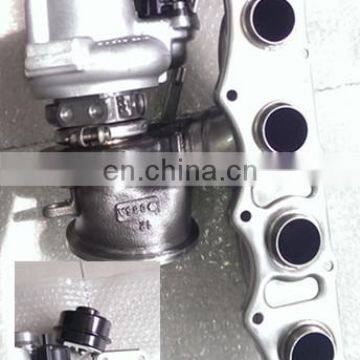

Product Show
shipping and package
Factory information
AS FOR DETAILED INFORMATION ,PLS.VISIT OUR WEBSITE gzjunfeng.en.china.cn
