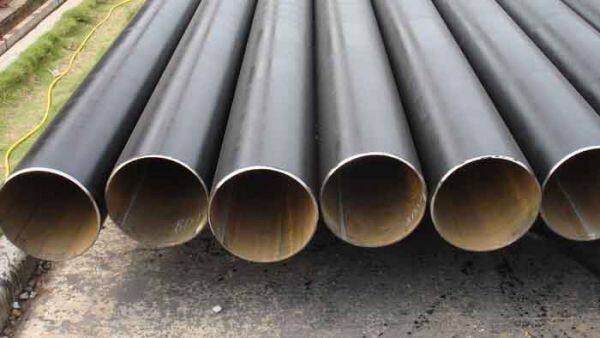

WELDED CARBON STEEL PIPE|ERW Electrical-resistance welding|ASTM A53 Grade B|Specification 16” 406.4mm x 6.35mm|made by Hebei Changfeng Steel Tube

Commodity: ERW carbon welded steel pipe(electrical-resistance welding)
Material description: ASTM A53/A53M  GR.B ASME B36.10.

Specification: 16” SCH10 DN400 406.4mm x 6.35mm
Unit Length: 5.8 meters - 12 Meters.

ASTM A53/A53M is standard specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless.This specification covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8 to NPS 26(dn6-DN650).The tubing shall undergo a seamless or welding process. Tension, bend, and flattening tests shall be performed to make sure that it must adhere to the mechanical properties of the standard. The hydrostatic test shall be applied, without leakage through the weld seam or the pipe body. Nondestructive electric test shall be made to make sure that the full volume of the pipe must be in accordance with the standard. The purchaser shall have the right to perform any of the inspections and tests set forth in this specification where deemed necessary to ensure that the pipe conforms to the specified requirements.

This specification covers the following types and grades:

1 Type F—Furnace-butt-welded, continuous welded Grade A,

2 Type E—Electric-resistance-welded, Grades A and B, and

3 Type S—Seamless, Grades A and B.

Keywords

Black Steel Pipes - Electric Resistance-Welded Steel Pipes - Furnace Butt-Welded Steel Pipes - Hot-Dip Galvanizing - Hot-Dip Process - Seamless Pipes And Tubes - Seamless Steel Pipes - Steel Pipes - Welded Pipes And Tubes - Welded Steel Pipes - Zinc Coated - Zinc-Coated Steel Pipes
