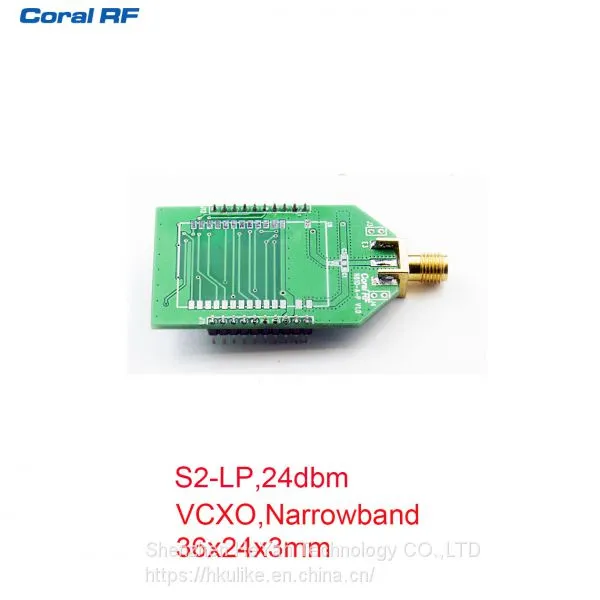

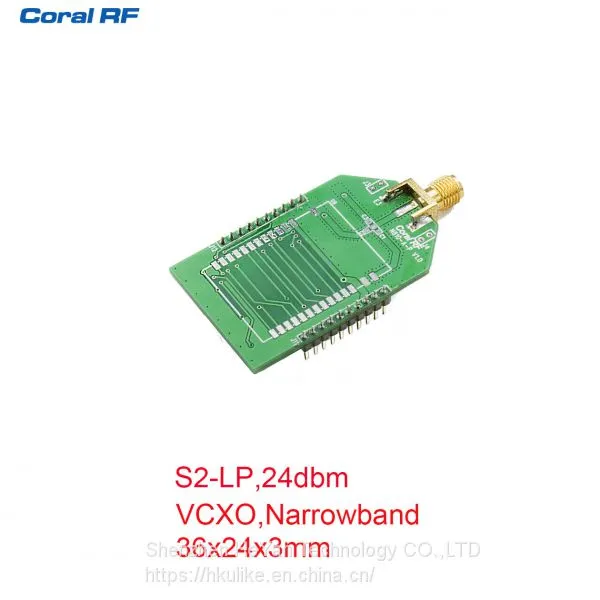

S2-LP Narrowband PA RF Module, 868Mhz, 915Mhz, SPI, Plug-in，24dbm
US$ 5 - 7
/ Piece
2 Pieces(Min. Order)
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
S2-LP Narrowband PA RF Module, 868Mhz, 915Mhz, SPI, Plug-in，24dbm
-
S2-LP Narrowband PA RF Module, 868Mhz, 915Mhz, SPI, Plug-in，24dbm
-
S2-LP Narrowband PA RF Module, 868Mhz, 915Mhz, SPI, Plug-in，24dbm
-
S2-LP Narrowband PA RF Moudule , 30DBM ,868Mhz,915Mhz, VCXO, SPI, High Quality
-
S2-LP Narrowband PA RF Moudule , 30DBM ,868Mhz,915Mhz, VCXO, SPI, High Quality
-
S2-LP Narrowband PA RF Moudule , 30DBM ,868Mhz,915Mhz, VCXO, SPI, High Quality
Product Details
| Brand Name | Coral RF | Place of Origin | China | |
| Model Number | N563-A-S-868M |
Product Description
Technical specifications
Hareware Information
Interfaces: SPI
Dimension: 48 x 30mm x 3mm
Operating voltage: 2 - 3.6V
PA Operating voltage: 3 - 6V
Operating temperature: -40°C to +80°C
VCXO DEV: 0.5PPM
Software
Asynchronous
Transparent mode
Low Power mode
Secure mode
Wireless Interface
RF pin,IPEX
Frequency: 860-960Mhz
Modulation: FSK,Narrowband
Consumption(Sleep) : 1uA
Consumption (RX): 10mA
Consumption (TX): 300mA(24dbm,3.3V)
RF chip: S2-LPQTR
Mounting: SMD
RSSI mode
Serial bootloader
Adjustable packet size
RF data rate: 1.2 - 500kbps
RF output power: up to 24dBm(3.3V)
RF sensitivity: -122dBm
Feq. Deviation: +/-1 Khz
