CC1120 Uart Narrowband RF Module 1W 30dbm 169Mhz,434Mhz,868Mhz,915Mhz，spi Module，sigfox
US$ 10 - 12
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T
- 7 days
You May Like
-
CC1120 Uart Narrowband RF Module 1W 30dbm 169Mhz,434Mhz,868Mhz,915Mhz，spi Module，sigfox
-
CC1120 UART Narrowband RF Module, 1W 24dbm, 169Mhz,434Mhz,868Mhz,915Mhz
-
CC1120 UART Narrowband RF Module, 1W 24dbm, 169Mhz,434Mhz,868Mhz,915Mhz
-
CC1120 UART Narrowband RF Module, 1W 24dbm, 169Mhz,434Mhz,868Mhz,915Mhz
-
CC1120 UART Narrowband RF Module, 1W 24dbm, 169Mhz,434Mhz,868Mhz,915Mhz
-
CC1120 SPI Narrowband RF Module, 14dbm, 169Mhz,434Mhz,868Mhz,915Mhz
Product Details
| Brand Name | Coral RF | Place of Origin | China | |
| Model Number | N513 |
Product Description
Technical specifications
Hareware Information
Interfaces: SPI,IIC,UART

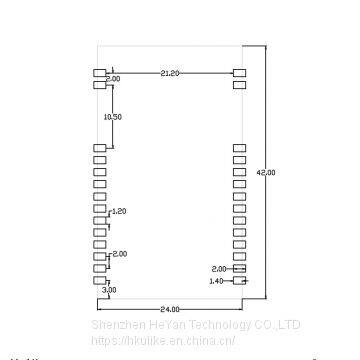

Dimension: 42 x 24mm x 3mm
Operating voltage: 2 - 3.6V
PA Operating voltage: 2 - 5V
Operating temperature: -30°C to +80°C
Consumption(Sleep) : 3uA
Consumption (RX): 35mA
Consumption (TX): 1400mA
RF chip: CC1120
Mounting: SMD
VCXO: +/- 0.5PPM
Software
Asynchronous Transparent
mode Low Power mode
Secure mode
RSSI mode
Serial bootloader
Adjustable packet size
Wireless Interface
RF pin，ipex
Frequency:162-174Mhz,384-464Mhz,860-960Mhz
Modulation: narrowvband FSK
RF data rate: 1 - 200Kbps
RF output power: up to 30dBm(3.3V)
RF sensitivity: -126dBm
dev:+/-1K
