Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Other Auto Engine Structure > G-Series G25-660 877895-5006S 871389-5011S Ceramic Dual Ball Bearing Turbo A/R 0.92

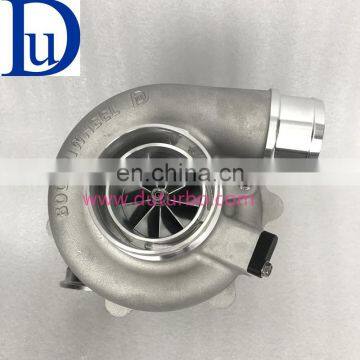

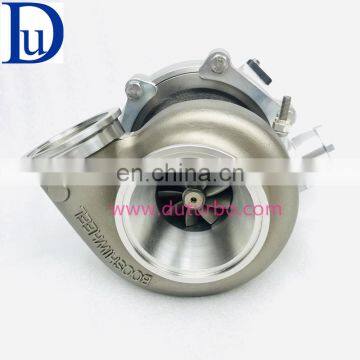

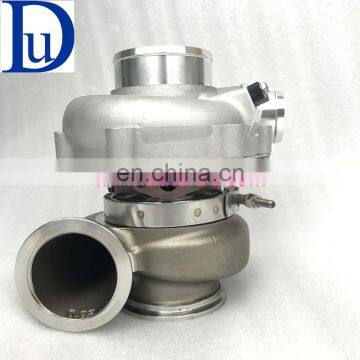

G-Series G25-660 877895-5006S 871389-5011S Ceramic Dual Ball Bearing Turbo A/R 0.92
US$ 400 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Junfeng
Place of Origin:
Jiangsu, China
Model Number:
G25-660
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genuine IHI New Twin Turbochargers RHF55B VU22 330499 VU21 330498 3.9T Turbo for Ferrari 488 V8 3.9L EngineUS$ 7,100 - 8,000MOQ: 1 Pair -
Booshiwheel G-SERIES Turbocharger G25-550 871389-5004S 877895-5003S Dual Ball Bearing Turbo A/R 0.72US$ 400 - 500MOQ: 1 Set
-
Booshiwheel 871388-5002S 877895-5001S G25-550 Dual Ball Bearing Turbo Turbine Housing AR 0.72US$ 200 - 350MOQ: 10 Sets
-
Booshiwheel GT25 871388-5002S 877895-5001S G25-550 Dual Ball Bearing Turbo Compressor HousingUS$ 50 - 100MOQ: 10 Sets
-
Genuine New Garrett GTX2560R 871388-5001S GT25R GTX-R Series Dual Ball Bearing TurbochargerUS$ 1,700 - 2,000MOQ: 1 Set
Brand Name
Junfeng
Place of Origin
Jiangsu, China
Model Number
G25-660
Warranty
30 Miles
Product Details
| Part Number | 877895-5006S |
| OE number | 877895-0006 |
| Year | 2018- |
| Description | for racing vehicles |
| CHRA | 871389-5011S |
| Turbo Model | G25 G25-660 |
| Displacement | 1.4L- 3.0L |
| Horsepower | 350-660 HP |
| turbine housing kit | 740902-0080 |
| inlet | T25 /T4 |
| outlet | V-BAND |
| turbine housing A/R | 0.92 |
| Compressor housing A/R | 0.70 |
| Turbine O.D.mm | 54.0 |
| Turbine I.D.mm | 49 |
| Turbine TRIM | 84 |
| Compressor TRIM | 65 |
| Actuator | 1.0 bar |
| compressor O.D.mm | 67 |
| Compressor I.D.mm | 54 |
| Cooled type | water cooled |
| turbine housing type | stainless steel |
| Condition | Brand new |
Turbo Drawing
Features:
- GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR 1055°C
- STAINLESS STEEL WASTEGATED AND NON WASTEGATED TURBINE HOUSING OPTION CAPABLE OF 1050°C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
COMPRESSOR MAP
EXHAUST FLOW CHART
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 54
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Alternate Garrett Product Code(s): 858161-5002S; 740902-0069
Material Descrption
Factory Information
Package
Packaging Details: Neutral Carton, one turbo in one carton
Delivery Detail: 2 days after your payment arrives
