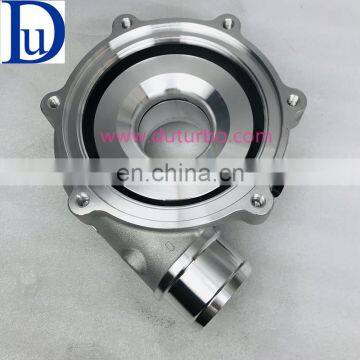

Booshiwheel GT25 871388-5002S 877895-5001S G25-550 dual ball bearing Turbo compressor housing

Product Details

 Turbo Drawing

Features:

• GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
• FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
• NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR 1055°C
• STAINLESS STEEL WASTEGATED AND NON WASTEGATED TURBINE HOUSING OPTION CAPABLE OF 1050°C
• OIL RESTRICTOR AND WATER FITTINGS INCLUDED

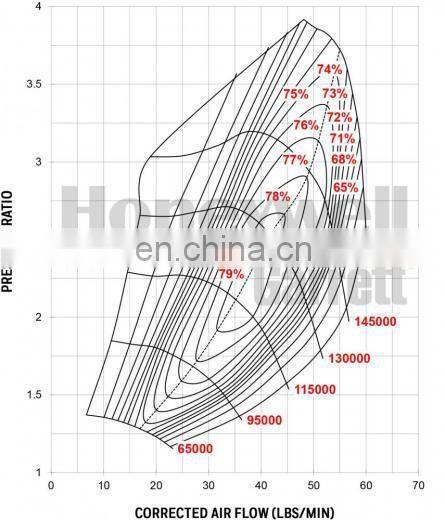

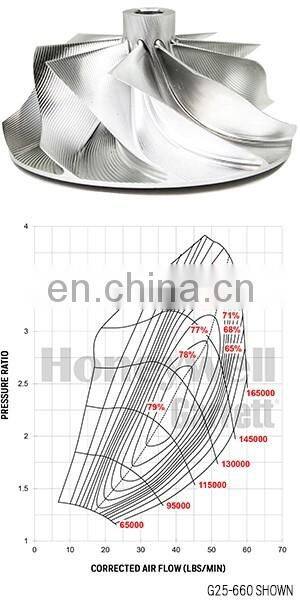

COMPRESSOR MAP

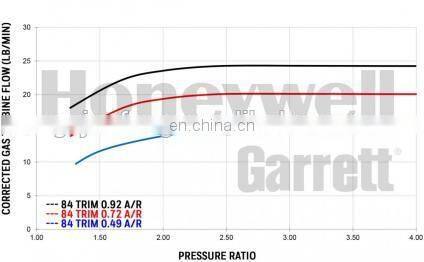

EXHAUST FLOW CHART

Pressure Ratio

Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 54
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN

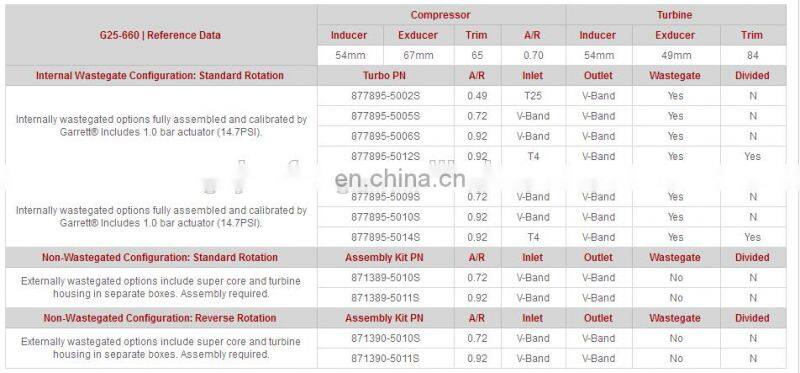

Alternate Garrett Product Code(s): 858161-5002S; 740902-0069

Material Descrption

Factory Information

Package

Packaging Details: Neutral Carton, one turbo in one carton

Delivery Detail: 2 days after your payment arrives
