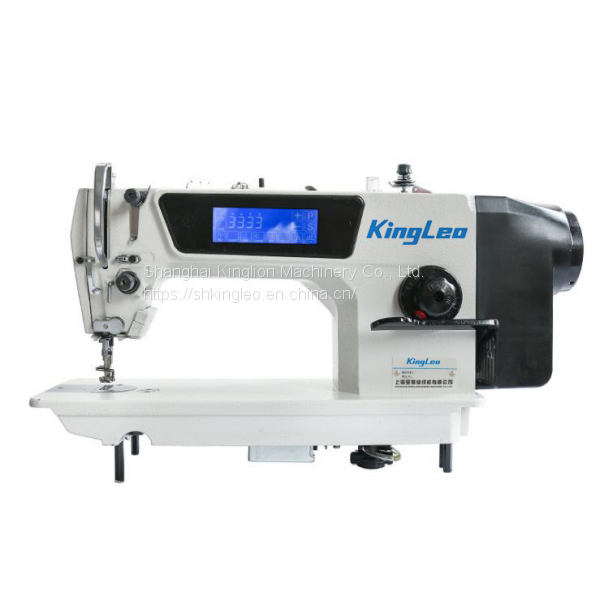

Integrated High Speed Directly Drive Single Needle Lockstitch Sewing Machine

Introduction

BSL-9009 series of integrated high speed computerized directly driven lockstitch sewing machine are equipped with European  technology. KSM-IQ integrated servo control system is the latest version of research and development, which is also with features of  beautiful shape, easy installation, complete functions, easy operation and stable performance. These series of machine adopt advanced  energy-saving technology, which reduce the cost by large degree. It is your first choice for investment.

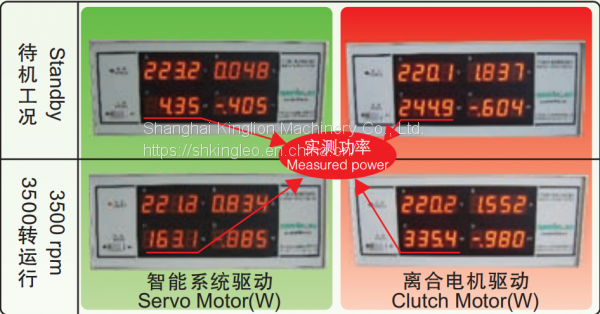

Energy-saving advantage comparison diagram

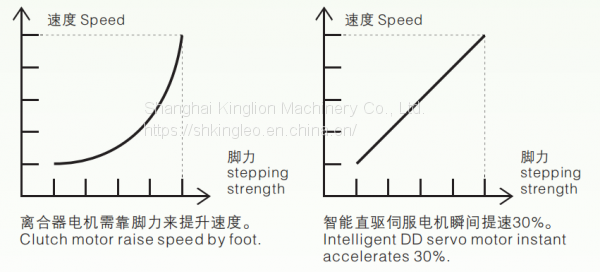

KSM intelligence control system adopt vector control, which keep the motor working under optimal situation.  The average power only 100W result from it can output according to the thickness of fabric.  In the case of 25% working efficiency, BSL-9009 can save energy by 70% compared with normal clutch motor  driven by V belt.

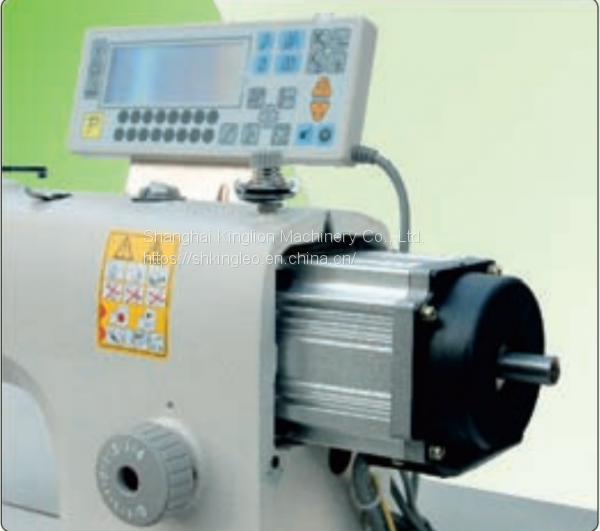

With functions of automatic thread trimming, automatic  reverse feeding, automatic thread wiper (Optional),  automatic presser foot lifter (Optional), automatic up and  down stop position, segmented sewing, fixed length  sewing,automatic reinforcement at the beginning and  ending stitches, bobbin thread counter etc.. CP-101  operation panel makes the operation and parameter  regulation more easier, sewing time-saving and laborsaving.

Features

1.Wide working voltage range. This system can work stably long time under AC 150~280V voltage and can adapt to bad power supply environment.

2.This machine was designed with optimized heat dissipation for excellent cooling performance, can work stably under high temperature long time.

3.Precise control of external electric magnet realize beautiful stitch effect by regulating the parameter.

4.Anti-interference: Aluminum alloy shell has strong jamproof ability, which ensure the machine runs stably

5.Swith machine quickly, the system can be restarted quickly without waiting.

6.16 segments of fixed length stitch and the quantity of stitches of each segment can be adjusted.

7.Comprehensive software and hardware protection, intelligent self-checking and error report system.

8.Easy speed control from 0 to 5000rpm, precise up and down needle stop correction (±3。)

9.Using unique dust-proof design, extended life and improved reliability.

10.With bottom thread counting function, which helps operators improve productivity.

11.Automatic needle up positioning when it is powered up.

12.Operation panel easy for parameter setting.

13.Compact size, light weight, low noise, low vibration and high efficiency.

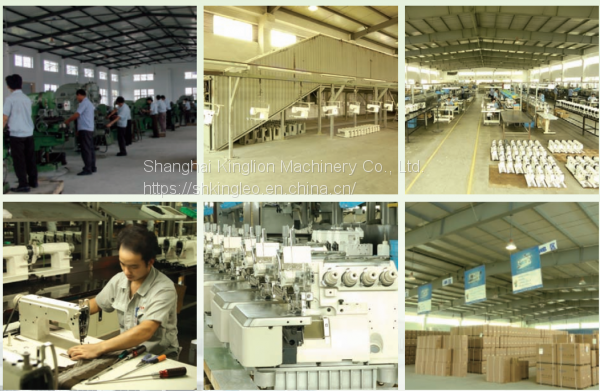

About US

Shanghai Kinglion Sewing Machine Co., Ltd. is located in International economy  and cultural famous city--Shanghai, covering an area of more than 8.22 acre. It is  only 15 minutes drive from Shanghai Hongqiao International Airport, nearly HuNing and JiaJin freeway, it has very convenient traffic, The company is a modern  enterprise with quality personnel, advanced technology, strict management and  excellent facility. It has established its perfect systems of Research and  Development, Design and manufacturing, Inspection and Testing, international  Marketing and After-service, which has met the requirement of ISO9001: 2008  international quality system and Germany Rheinland TUV & CE requirement. it has  high quality and performance, widely meet the requirement which has famous  brand factory.

Since our company establishment, we have opened up hundreds distributors in the domestic market,  directly users amount more than tens of thousands, covering major domestic garment production base.  Products are exported to more than hundred countries and regions, having established a perfect sales  and service network.
