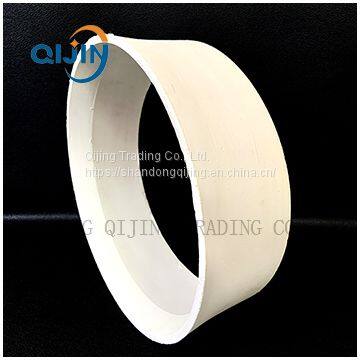

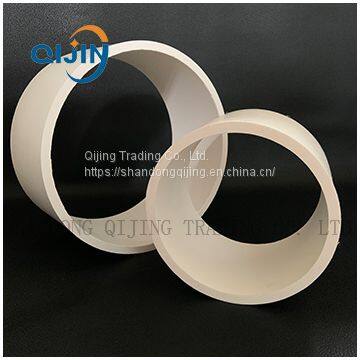

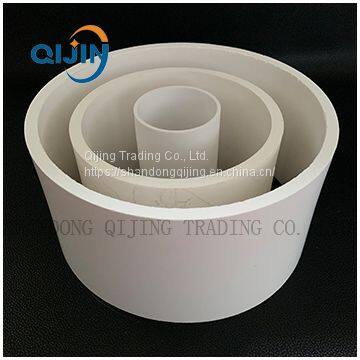

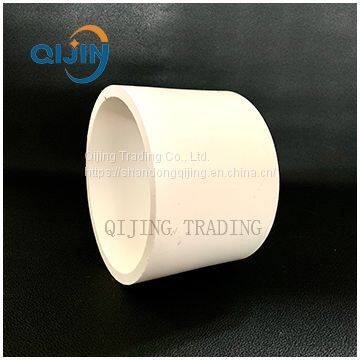

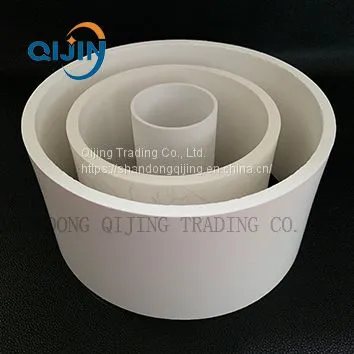

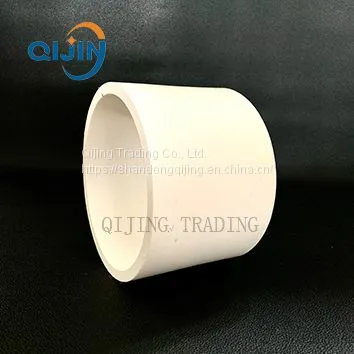

Steel Pipe with Lining for Pneumatic Conveying System

   Qijing industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries. As an abrasive material and corrosive medium.
    Qijing Industrial Ceramics is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, and is suitable for different high-temperature pipeline inner diameters.



 Ceramic pipes includes :

  - alumina ceramic straight pipe
  - ceramic pipe cone
  - ceramic bend elbow pipe liner
  - ceramic Y-shape pipe
  - ceramic T-shape pipe
  - ceramic curved pipe tile liner
  - ceramic arc pipe tile liner
  - ceramic lined steel pipeline
  - custom ceramic pipe


Ceramic pipe advantages:

1. High hardness

2. Superior abrasion

3. Corrosion and chemical resistance

4. Light weight

5. Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.

6. Good fluidity : Smooth surface ensure the free flow of material without  blocking



pipe sizes :



 >>> Application :

--  mining industry
--  Cement industry
--  Coal handling industry
--  Steel industry
--  Port industry
--  Power plant


Points to note for transport and installation
Matters needing attention for transportation and installation of ceramic pipe
1. The ceramic composite pipe has high hardness and good toughness, but it should be put gently in the process of transportation and installation to avoid serious collision, especially to avoid direct contact with metal instruments or impact on the ceramic layer on the end surface.

2. The qijing  bending pipe is installed with directivity. When the bending pipe is installed, the direction indicated by the arrow on the surface of the bending pipe should be consistent with the flow direction of the conveying medium.

3. When installing the pipe, the pipe should be aligned with the center line and level should be adjusted to make sure that both ends meet accurately.The displacement of both ends should be controlled within 1.0mm.

4. When the flexible pipe joint is used to connect and install the pipe, the inserted lengths of both ends of the flexible pipe joint shall be adjusted symmetrically.Since the thermal expansion coefficient of the composite pipe is about 1/3 of that of steel, the expansion clearance can be reduced by 3-5mm.

5. When using flange connection, the flange end shall be flush with the end of the composite pipe.

6. Due to the excellent welding performance of the composite pipe, the pipe connection can be conducted by welding. However, when welding, 45o-60o "V" type slope Angle is 2-4mm and gap is 0.8-1.2mm.



Packaging








FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15 days if the mould sizes are in stock. or it is 25 days if the mould sizes are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the stock sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: For new customers, 100% T/T in advance. For  regular customers, 30% T/T in advance ,balance after received the B/L copy


 package
