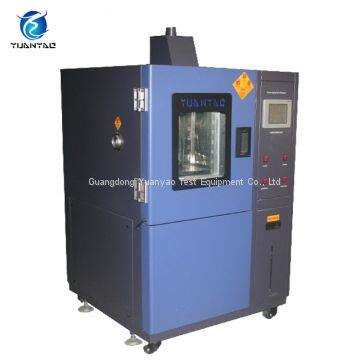

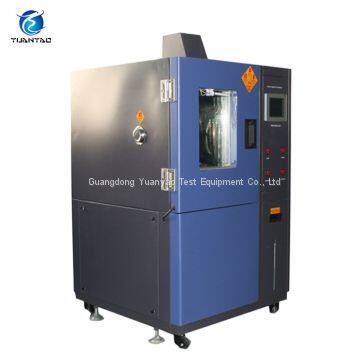

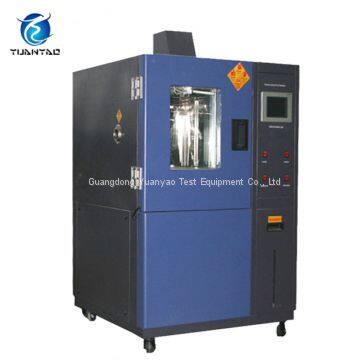

Ozone Test Chamber for Rubber & Plastic
1 Sample rotating speed: 1 time/min
2 Stainless steel
3 Ozone analyzer: Impoted
4 High quality and resonable price
Description
Ozone Test Chamber is a climate modeling equipments, suitable for testing compatibility of unvulcanized rubber and other products under non-direct light, exposing to ozone-containing air and certain environment. It can be applied to scientific research stitutes and plants to do aging test for sample.
Packing and Delivery
Packing: Wooden case, suitable for a long distance shipment
Delivery: In 15-20 working days after order confirmation
Specification
1. A certain amount of air processed
2.12 month warranty
3. Efficient ozone generator ozone gas
4. High qualty and resonable price
Features
1.5.5'' Touch panel controller, simple and friendly menu.
2. Unprecedented uniform exposure of all specimens using a rotating carousel.
3. Closed-loop servo control ensures highly stable ozone concentration levels.
4. Integrated ozone destructor with built-in safety interlocks
5. Ozone resistant wetted materials
6. With castors
7 Best after sales service: One year free parts maintenance.
Detailed Data
| Model | YOT-080 | YOT-150 | YOT-1000 |
| Inside dimensions W*H*D (cm) | 40*50*40 | 50*60*50 | 100*100*100 |
| Outside dimensions W*H*D (cm) | 90*140*95 | 100*150*105 | 150*190*155 |
| Temperature range | RT~80ºC | ||
| Temperature fluctuation | ±0.5ºC | ||
| Temperature uniformity | ±1.5ºC; Empty load, 30 mins after stanlization | ||
| Resolution | 0.01ºC | ||
| Ozone concentration | 0~1000PPHM, adjustable (Optional: 0~500ppm non-standard | ||
| ozone control precision | ±10% | ||
| Ozone production mode | Ozonator | ||
| Sample frame | Static and Dynamic fixtures | ||
| Sample frame speed | 360° rotation (1 circle/minute | ||
| Material | SUS#304 Stainless steel for inner chamber, cold rolled sheet + powder coating for external chamber | ||
| Insulation | PU | ||
| Circulation system | Cooling fan | ||
| Heating system | SUS# stainless steel high speed heater | ||
| Controlling system | Digital electrinic indicator + SSR+ PID | ||
| Refrigeration system | compressor + Fin type evaporator + air/water cooling system | ||
| Ozone concentration analyzer | Imported ozone concentration analyzer | ||
| Ozone generator | Silent discharge ozone generator | ||
| Other components | 1. Muti-layer vacuum glass obvervation window | ||
| 2. Controlling status indicator lamp 3. Chamber light | |||
| Safety protection device | 1. Over-heat protection 2. phase sequence protection 3. overload protection | ||
| Power supply | AC 1ψ220V; 3ψ380V 60/50Hz | ||
| Customization service | Non-standard or special requirements are all welcome | ||
