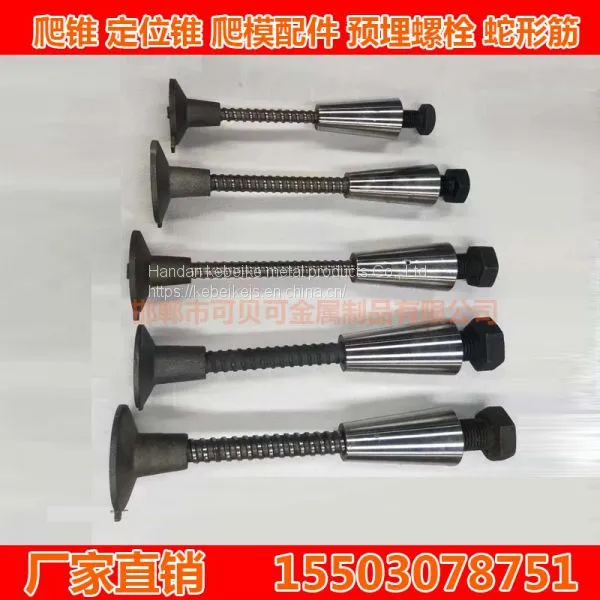

Help CenterCone Climbing Embedded Device
Related Products
-
17mm Tie Rod With Nut for Wall FormworkUS$ 0.1 - 10MOQ: 1 Short Ton -
18mm Tie Rod With Nut for Wall FormworkUS$ 0.1 - 10MOQ: 1 Short Ton
-
20mm Tie Rod With Nut for Wall FormworkUS$ 0.1 - 10MOQ: 1 Short Ton
-
15mm Good Quality High-Strength Tie Rod for Construction Formwork SystemUS$ 0.1 - 10MOQ: 1 Short Ton
-
20mm Good Quality High-Strength Tie Rod for Construction Formwork SystemUS$ 0.1 - 10MOQ: 1 Short Ton
Construction technology:
Anchor System Anchor Plate Accessories for Climbing Formwork
Our company produces a variety of formwork accessories, high quality, low price, can meet the needs of different formwork
The utility model provides a climbing cone pre-burying device, which comprises a pre-buried part and a force bolt connected to the pre-buried part. A reinforcing structure for connecting a climbing die is arranged between the pre-buried part and the bolt head of the force bolt. The reinforcing structure comprises a reinforcing plate and a reinforcing plate for connecting the reinforcing plate to the climbing die. The first side of the reinforcing plate is attached to the surface of the climbing die. The second side of the reinforcing plate opposite the first side faces the bolt head of the stressed bolt, and the area of the reinforcing plate is larger than the end area of the bolt head. The utility model solves the problem that the traditional climbing cone assembly is welded and fixed with the wall reinforcing bar, which causes the wall reinforcing bar to be easily damaged, and causes the hidden danger to the overall strength of the structure.
Composition of formwork system:
The board surface system includes: 18mm thick high strength plywood, woodworking I-beam H20, steel girdling and girdling clamp. The section height of the woodworking beam is 200 mm, the upper and lower wing width is 80 mm, the wing thickness is 40 mm, the web thickness is 40 mm, and the length is 2160 mm, and the zuida spacing is 425 mm; the distance between the two horizontal steel girdles is 1250 mm, and the distance between the bottom horizontal steel girdles and the bottom edge of the formwork is 350 mm; in order to form the circular shape of the cylinder external mold, the steel girdling and the woodworking beam are connected by the girdling clamp Two lifting points are arranged for vertical steel purlin to facilitate safe hoisting. The adjacent steel corrugations are located and connected by the formwork hinged parts between the formwork, so that the large shell formwork is connected as a whole.
