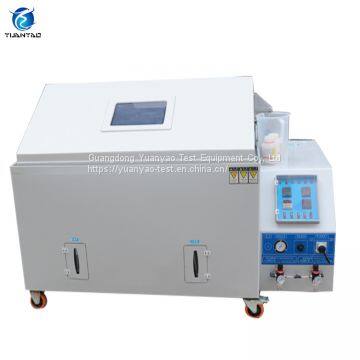

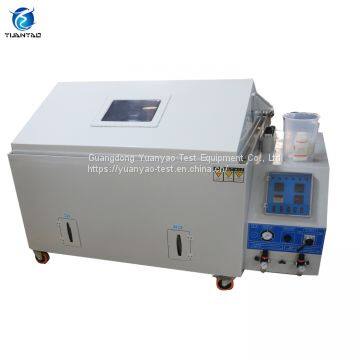

Industrial Lab Anti-Corrosion Test Machine Salt Spray Test Chamber
US$ 1500 - 3000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yuanyao
Place of Origin:
China
Model Number:
YSST-600
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
20 days
Related Products
-
Simulated Environmental Salt Spray Corrosion Test Machine (YSST-108)US$ 1500 - 3000MOQ: 1 Piece -
Salt Spray Corrosion Endurance Spray Corrosion Test MachineUS$ 1500 - 3000MOQ: 1 Piece
-
Salt Spray Resist Test Tester for Industry Product TestUS$ 1500 - 3000MOQ: 1 Piece
-
Salt Fog Tester Lab Test Machine Salt Spray Corrosion Test Chamber ManufacturerUS$ 1500 - 3000MOQ: 1 Piece
-
Lab Test Equipment Salt Corrosion Fog Spray Test ChamberUS$ 1500 - 3000MOQ: 1 Piece
Brand Name
Yuanyao
Place of Origin
China
Model Number
YSST-600
Type
Control Box
External Size
1900*1400*1300
Protection Level
Other
Industrial lab anti-corrosion test machine Salt spray test chamber
Introduction&Application:
Salt mist resistance test machinery uses salt fog corrosion way to test the reliability of materials and protective coating to resist salt fog corrosion.
It is widely applied to components and parts, electronic components, metal materials protective layer and other industrial products, etc.
Salt mist resistance test machinery uses salt fog corrosion way to test the reliability of materials and protective coating to resist salt fog corrosion.
It is widely applied to components and parts, electronic components, metal materials protective layer and other industrial products, etc.
Feature:
1 Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper acetate, etc.
2 Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
3 Have automatic demist device, can clear observe tested products after the experience is finished.
4 Three complete temperature control systems(Saturated air temperature, the temperature in the cabinet, the test liquid temperature) ensure the consistency and standards of the test.
5 Meet international test standards.
6 Customization is available & welcomed.
1 Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper acetate, etc.
2 Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
3 Have automatic demist device, can clear observe tested products after the experience is finished.
4 Three complete temperature control systems(Saturated air temperature, the temperature in the cabinet, the test liquid temperature) ensure the consistency and standards of the test.
5 Meet international test standards.
6 Customization is available & welcomed.
Technical parameters:
| Specification | |||||
| Model | YSST-108 | YSST-270 | YSST-600 | ||
| Internal Dim.WHD(mm) | 600*400*450 | 900*500*600 | 1200*500*1000 | ||
| External Dim.WHD(mm) | 1250*1050*910 | 1550*1210*1060 | 1900*1400*1300 | ||
| Temp. Range | Chamber | Room temp.-- 50ºC,±0.5ºC | |||
| Air | Room temp.--63ºC,±0.5ºC | ||||
| Salt | Room temp.--50ºC,±0.5ºC | ||||
| Saturated Air Pressure(Kg/m) | 0.8--2.0 | ||||
| Spray Volume(m/80cm/hr) | 0.5--3.0 | ||||
| PH | Salt | 6.5--7.2 | |||
| Cu(CH COOH) | 3.0--3.2 | ||||
| Exter,/Inter.Material | P.V.C & P.P | ||||
| Systems | Salt Spray Veicle | Air+acid(base)liquid | |||
| Heating | SUS#304 & #316stainless steel heater+taflon | ||||
| Controller | Hydrometer,salinomerer,fog collector,glassbar | ||||
| Other Components | Digital electronic control+S.S.R | ||||
| Savety Devices | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light | ||||
| Power Source[K.W] | AC 1Ψ 220V 60/50Hz | ||||
| 1.1 | 1.5 | 3.5 | |||
| Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400^^ | |||||
Except Salt mist resistance test machinery, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
