ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line

Eta Holding Co.,limited
ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line thumbnail-1
ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line thumbnail-2
ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line thumbnail-3
ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line thumbnail-4
ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line thumbnail-5
ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line photo-1

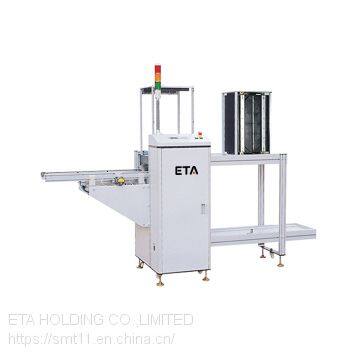

ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line photo-2

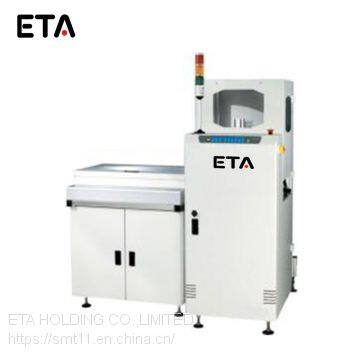

ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line photo-3

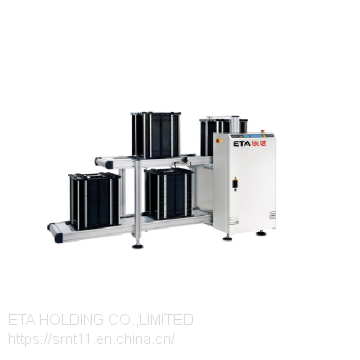

ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line photo-4

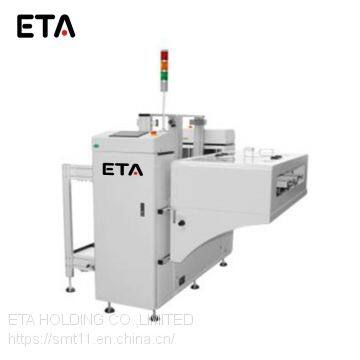

ETA SMT Loader Handling Machine Automatic Vacuum PCB Loader for PCBA Production Line photo-5
US$ 3000 - 7000 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Overseas Office:
Yes
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us


Product Description
Introduction:

1.Strong,firm and stable design.

2.'soft touch' LED control panel or touch screen can be selected.

3.Top&bottom pneumatic clamps to secure magazine rack.

4.No PCB breakage guaranty because of special gas circuit design.

5.Automatical diagnosing fault code display function.

6.Wear-resistant cable and have long service life.

7.Compatible SMEMA interface.

SMT Loader specification
Model
LD-M
LD-L
LD-LL
LD-XL
Dimension(mm)
1330*765*1250
1650*845*1250
1800*909*1250
1800*970*1250
PCB Size(mm)
50*50-330*250
50*50-445*330
50*50-530*390
50*50-530*460
Rack Size(mm)
355*320*563
460*400*563
535*460*563
535*530*563
Time Feed PCB
Seconds 6 Approx. or Specify
Indexing Pitch
10.20.30.40mm or Specify
Control System
PLC
Power
Max 300 VA
Air Supply
4-6bar, 10ltr/Min Max
Transport Height
900±20mm(or Customer Specified)
PCB Direction
L to R or R to L
Communication
SMEMA for Both In & Out
Power Supply
1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight
160 Kg
220 Kg
280 Kg
340 Kg

Certifications

Packing & Delivery

※ Standard Wooden Package withVacuum

Shipping Way:

※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:

※ 35 Days.

Our Company

ETA is the leading manufacturer for smt machines and solution with 24 years' experience in China.

And we are aslo the only Chinese SMT supplier for Huawei factory in China.

Successful Experience:
Eta's customer in 35 countries around the world
※ We have been helping customers to build a lot of new factories around the world.
※ Training more than 500 experts and technician for customers.
※ Became the most reliable Chinese partner for you.
