Product Description
INTRODUCTION

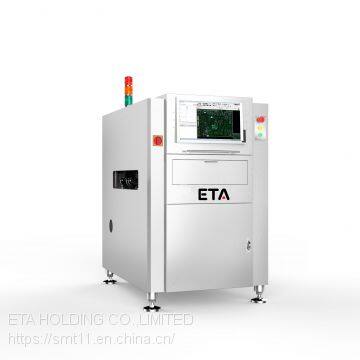

ETA-415 is multi-function SMT AOI machine,imported Screw guide,high precision,the color change color 3CCD camera to accurately
identify the various components of the total 0201 detection ability,CE standard of mechanical design and humanized, large pull
type operation pallet, can be placed with PCB operator and other items, automatic induction eecure screen and turn plate
automatically open to the use of more security equipment.
Features:

1.Fast programming design,Multi program running,Multi application design,High precision,High NG output.

2.Automatic barcode reading,Intellectralized coaxial light design,Multi mark(Bad Mark included).

3.Seamless connection between SPC and AOI,take measures to avoid problem according to the feedbacks,control the quality in time.

4.Using coaxial four-level illumination to make the part in the best status of brightness and softness,

5.High precision intellectualized camera read the barcode auto matically,with high speed and clearer images.

6.Good stability(GR&R

Model
ETA-415
Test Board
After Reflow Soldering
Camera
2M pixel intelligent digital industrial camera
Resolution/Range/Speed
15um/Pixel FOV:38*31mm, Test speed＜0.25sec/FOV
Operation System
Windows 7
Light
RGB ring tower LED light(Color light)
Program Mode
Auto CAD input,manual programming,component library
Remote Control
Offline programming,check and control remotely through network
Inspection Item
Component test,soldering test
Special Function
Read barcode,two sides of program test,multi board and multi progrma test
Mini Component
15um:0201chip&0.4pitch IC
SPC and Program Control
Statistic and analysis of all test data,can output excel,word,txt file
Operation System
Windows 7
Display Output
22inch LCD,OK/NG signal,send data file to Repair station(option)
PCB Size
50*50~430*330mm
PCB Thickness
0.5 ~ 5mm
Power
AC220 50/60Hz,＜0.5Kw
Dimension
890*960*1310mm

Certifications

Packing & Delivery

※ Standard Wooden Package withVacuum

Shipping Way:

※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:

※ 35 Days.

Our Company

ETA is the leading manufacturer for smt machines and solution with 24 years' experience in China.

And we are aslo the only Chinese SMT supplier for Huawei factory in China.

Successful Experience:
Eta's customer in 35 countries around the world
※ We have been helping customers to build a lot of new factories around the world.
※ Training more than 500 experts and technician for customers.
※ Became the most reliable Chinese partner for you.
