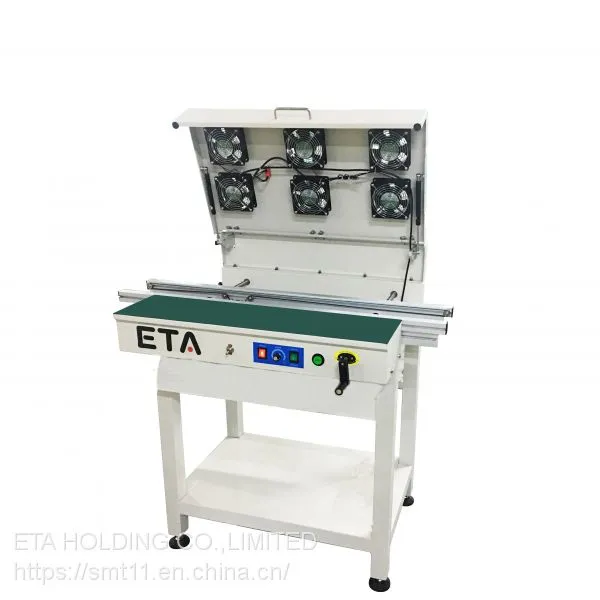

Multi Function SMT Vertical Buffer/ PCB Pusher Conveyor photo-5
US$ 800 - 1600 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Overseas Office:
Yes
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Introduction:

1.Modular design.
2.Solid design improves stability.
3.Inspection mode and automatic mode.
4.Inducing multi-zone position accuracy.
5.Ergonomic design, make your arms easy.
6.Custom machine length according to customer's requirement.
7.Variable speed control.
8.Compatible SMEMA interface.
*: Option: Dual rail

Product Name
Standard SMT link/inspection Conveyor
Rail Length(mm)
500 mm
1000 mm
1200 mm
2000 mm
Dimension (mm)
500*700*950
1000*700*950
1200*700*950
2000*700*950
PCB Width
50 to 350 mm
PCB Direction
L to R or R to L
Speed
Adjustable
Control System
PLC
Communication
SMEMA for both in & out
Power Supply
1 PH AC 220V 50/60Hz
(Option:110V to 380V)
Weight
70 Kg
95 Kg
105 Kg
150 Kg
------Features------
1. Modular design, optional assembly as per client’s requirement.
2. Rugged steel design, improves equipment stability .
3. Smooth stainless steel screw to adjust the width of the rail.
4. Variable speed control.
5. Circuit board testing mode.
6. Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7. Heavier bottom design, not easily shift.
8. Machine length can be customized.
9. Compatible with SMEMA interface.

Certifications

Packing & Delivery

※ Standard Wooden Package withVacuum

Shipping Way:

※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:

※ 35 Days.

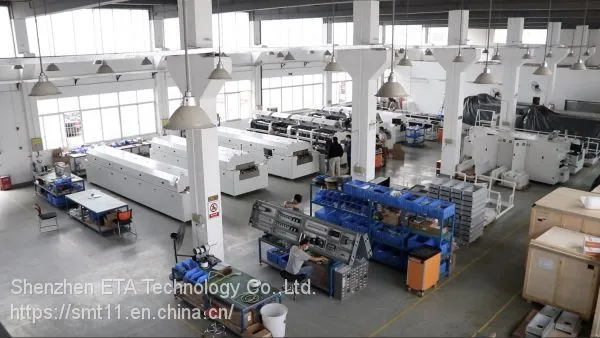

Our Company
