GOGO ATC 5 way 2 position Pneumatic air hand pull push valve
4R310-10 Port 3/8" BSP Manual control valve
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **

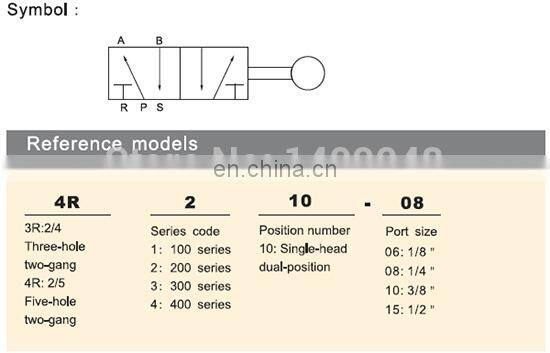

1.Specification
Model |
4R110-06 |
4R210-06 |
4R210-08 |
4R310-08 |
4R310-10 |
Working Medium |
Air |
||||
Number of Places |
2-position 5-way |
||||
Joint Pipe Bore |
Air Inlet=Air Outlet=1/8 |
Air Inlet=Air Outlet=1/4 |
Air Inlet=Air Outlet=3/8 |
||
Effective Sectional Area |
12mm2 (CV=0.67) |
14mm 2 (CV=0.78) |
16mm 2 (CV=0.89) |
25mm 2 (CV=1.39) |
30mm 2 (CV=1.67) |
Working Pressure |
0~0.8Kgf/cm 2 |
||||
Ensured Pressure Resistance |
12.0Kgf/cm 2 |
||||
Operating Temperature Range |
-5~60°C |
||||

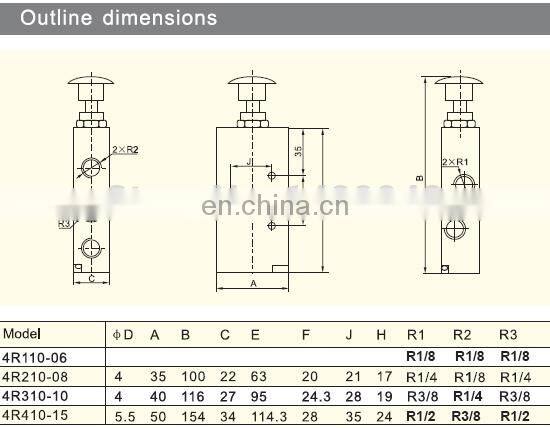

2.Dimensions

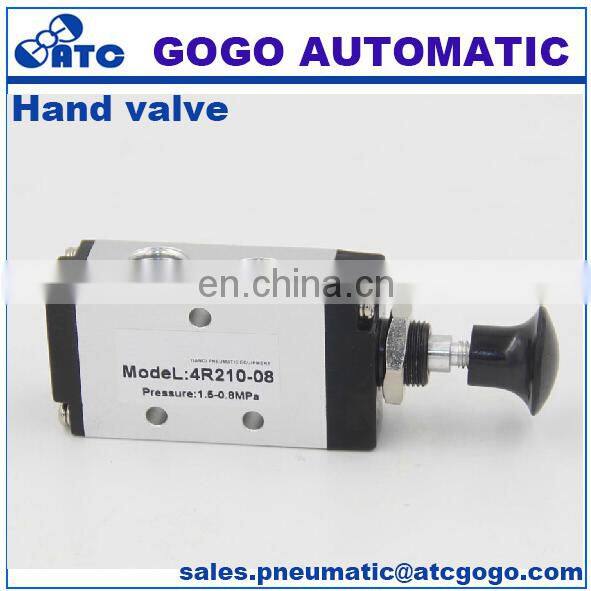

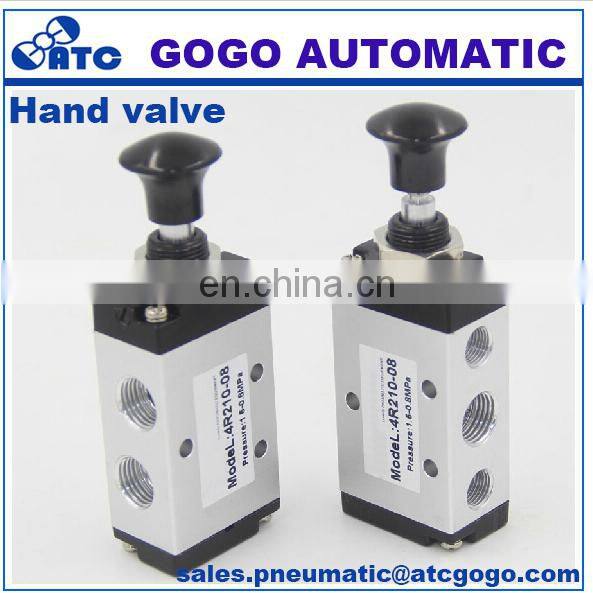

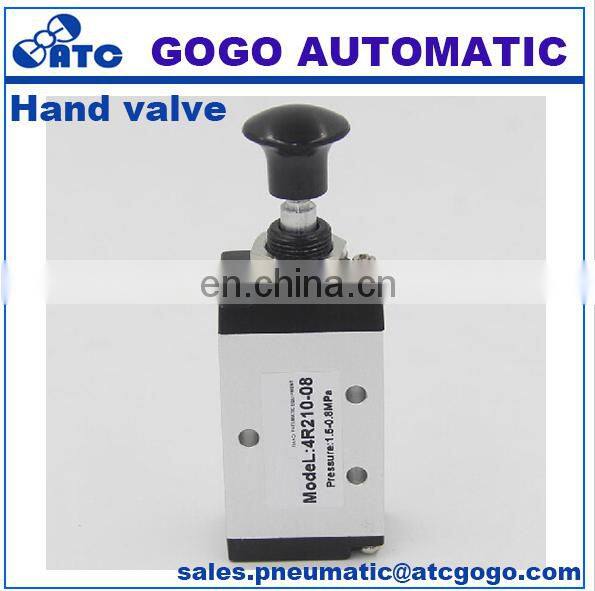

3.PICTURE
