Home > Products > Pneumatic Cylinder > Pneumatic cylinder double acting , 32mm diameter 125mm stroke pneumatic cylinder sc32*125

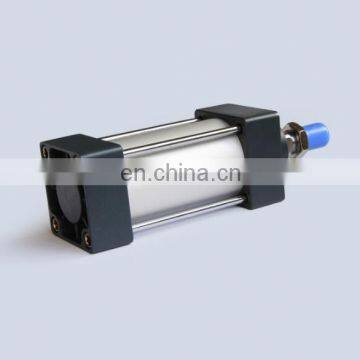

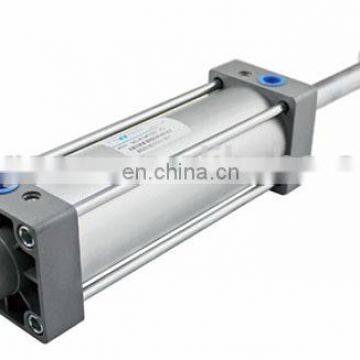

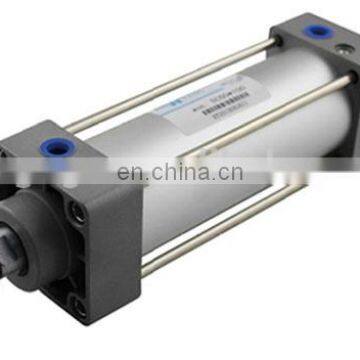

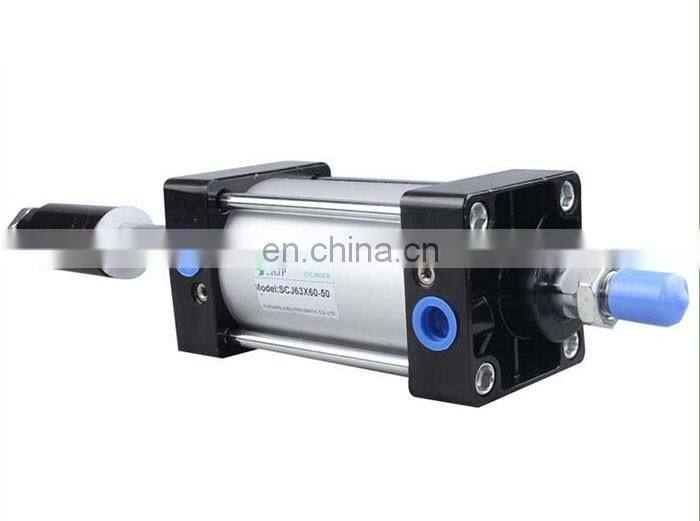

Pneumatic cylinder double acting , 32mm diameter 125mm stroke pneumatic cylinder sc32*125
- Ning Bo
- T/T Credit Card
You May Like
-
MH series smc type cylinders gripper air pneumatic / pneumatic gripper
-
CDM2B Double shaft mini pneumatic cylinders / cylinder electric
-
DNC double acting pneumatic cylinder 32mm bore 75mm stroke cylinder
-
Standard dual action pneumatic air DNC aluminium cylinder
-
High quality double acting clamp mini gripper cylinder MHY2-10D SMC type pneumatic cylinders
-
High quality double acting new Slide Bearing compact guide pneumatic cylinder / mgqm20-20
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | SC | Power | Pneumatic | |
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Shaft Diameter | 32mm-200mm | Maximum Stroke | 1000mm | |
| Body Material | Aluminum |
Product Description
Pneumatic cylinder double acting , 32mm diameter 125mm stroke pneumatic cylinder sc32*125
Specification
1. Type Airtac standard pneumatic cylinder SC ..
2. Good quality and competitive price
3. Magnet: Optional
4.1 year warranty
SC series Airtac standard double-acting pneumatic cylinder-air cylinder
Characteristics:
1). Normal diameter of 32mm to 200mm, 250mm larger size 400mm can also be provided.
2). Provided with adjustable cushion both cylinder end covers to make sure cylinder works smoothly, safely and with low noise.
3). Body spray painted cylinder head and internal hard anodized.
4). with self-lubricating bearing, the piston rod is free lubrication.
5). Magnet and sufficient fixing style are available.
6). Paving rod, cylinder parts are processed by high precision CNC machines and good sealed to ensure good
Action and long life.
7). Make ends SCD, stroke adjustable SCJ and tow-stage SCT can also be supplied.
| Diameter (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Port Size | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 2/1 | 1/2 | 3/4 | 3/4 |
| Action | double action | ||||||||
| Working fluid | Filtered compressed air | ||||||||
| Work pressure | 0.1-0.9MPa | ||||||||
| Test pressure | 1.5MPa | ||||||||
| Work temperature | ~ 5 ~ 70 ° C | ||||||||
| Cushion | Adjustable air cushion at both ends | ||||||||
| Stem threads | M10x1.25 | M12x1.25 | M16x1.5 | M20x1.5 | M27X2.0 | M36X2.0 | |||
Dimensions
Imagen
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order .
Skype:live:hunter_1656
