Home > Products > Pneumatic Cylinder > CDM2B Double shaft mini pneumatic cylinders / cylinder electric

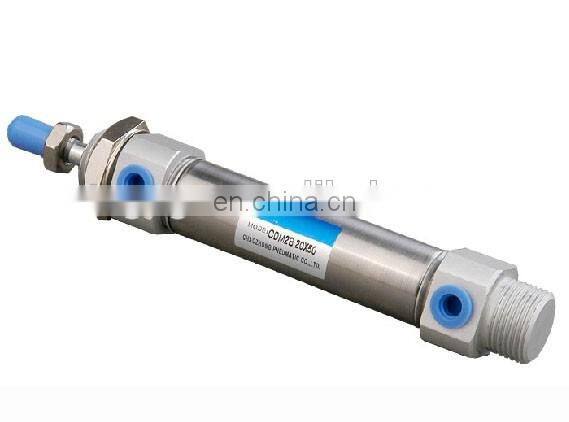

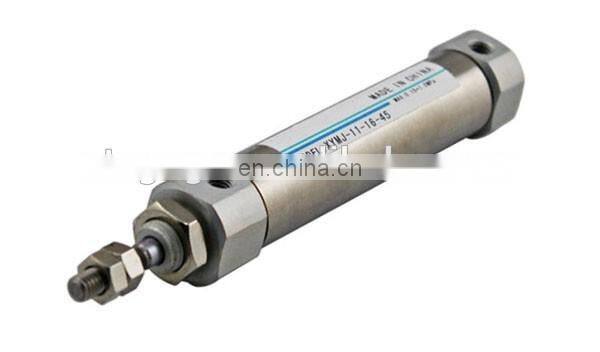

CDM2B Double shaft mini pneumatic cylinders / cylinder electric
- 2000 Piece / Pieces per Month
- Ning Bo
- T/T Credit Card
You May Like
-
DNC double acting pneumatic cylinder 32mm bore 75mm stroke cylinder
-
Standard dual action pneumatic air DNC aluminium cylinder
-
High quality double acting clamp mini gripper cylinder MHY2-10D SMC type pneumatic cylinders
-
High quality double acting new Slide Bearing compact guide pneumatic cylinder / mgqm20-20
-
Double acting compact air cylinders Diameter 63 mm stroke 20 mm SDA63 X 20
-
Double acting air standard pneumatic cylinder
Product Details
Brand Name | GOGO | Place of Origin | Zhejiang, China | |
Model Number | CDM2D | Power | Pneumatic | |
Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
Shaft Diameter | 20mm~40mm | Maximum Stroke | 500mm | |
Body Material | Stainless Steel |
Product Description
CDM2B Double shaft mini pneumatic cylinders / cylinder electric
1. Specification
F1. SMC reference cdm2b mini stainless steel pneumatic cylinders
2. SMC cm2 series
3rd hole: 20 ~ 40mm
SMC reference cdm2b mini stainless steel pneumatic cylinders
features:
1 cm2 series stainless steel cylinder pneumatically.
2. SMC cm2 series stainless steel cylinder pneumatically, with the same appearance.
3rd hole (mm): 20,25,32,40.
4. Double-acting, single / double rod
5. Rubber buffers, or with adjustable air cushions at both ends (option).

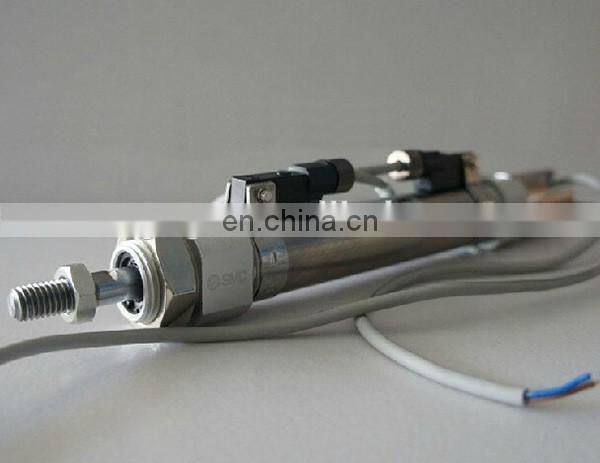

6. Installation is optional magnet.
7. cylinder kits, barrel, piston is.
Bore (mm) | 20 | 25 | 32 | 40 | |
liquid | air | ||||
action | cm2 | Double acting, single / double rod | |||
Cm2-s/t | Single acting, single rod, spring return / extend | ||||
Minimum Operating Pressure | double-acting | 0.05 mpa | |||
Spring Return | 0.18 mpa | ||||
extend spring | 0.23 mpa | ||||
Maximum operating pressure | 1.0 mpa | ||||
proof pressure | 1.5 mpa | ||||
Ambient and fluid temperature | -20 To 80 & deg. c (with no icing) | ||||
pillow | double-acting | Rubber buffers | |||
adjustable air cushions at both ends | |||||
single acting | Rubber buffers | ||||
lubrication | non- lube | ||||
Piston rod dia. | 8 mm | 10 mm | 12 mm | 14 mm | |
Piston rod thread | M8x1.25 | M10 x 1.25 | M14 x 1.5 | ||
connection size | G1/8 | G1/4 |

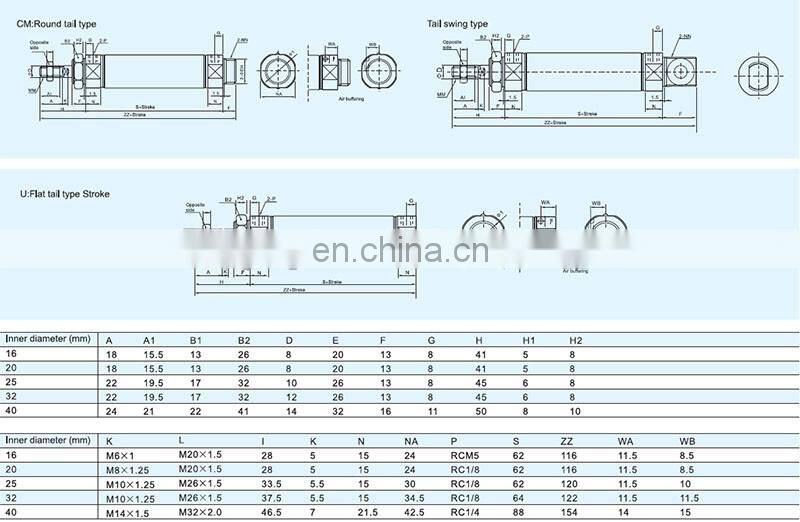

Dimensions
Imagen

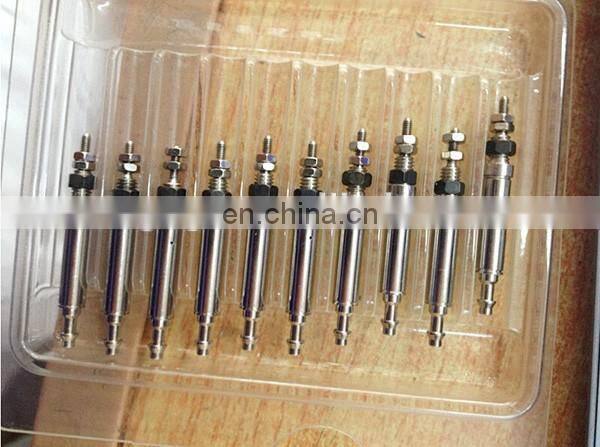

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order .
Skype:live:hunter_1656
