Home > Products > Pneumatic Cylinder > High quality aluminum alloy mini type pneumatic cylinder kits
High quality aluminum alloy mini type pneumatic cylinder kits
- Ning Bo
- T/T Credit Card
You May Like
-
SMC Type Single Acting mini screw thread pneumatic cylinder
-
China Ningbo hot selling mini air cylinder MA25-25 diameter 25mm stroke 25mm Aluminum alloy small pneumatic cylinder
-
CDU Free Mount Cylinder With Magnet mini square air cylinder
-
China Ningbo suppliers sell MAL stroke adjustable mini air cylinder
-
China Ningbo suppliers sell mini double rod air piston cylinder
-
China Ningbo manufacturer sell pneumatic mini cylinder piston rod
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | SC/SI/DNC | Power | Pneumatic | |
| Standard or Nonstandard | Standard | Structure | General Cylinder | |
| Shaft Diameter | 16mm~40mm | Maximum Stroke | 500mm | |
| Body Material | Aluminum |
Product Description

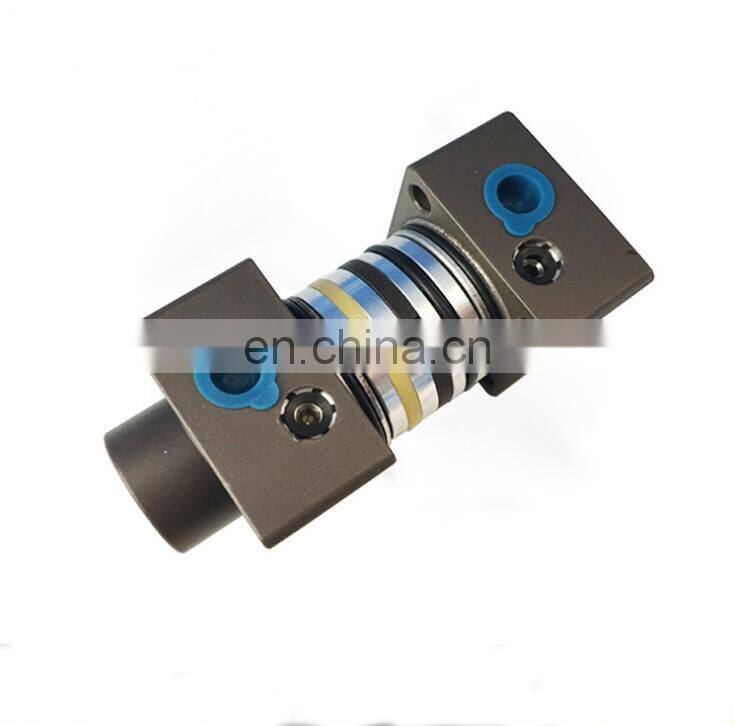

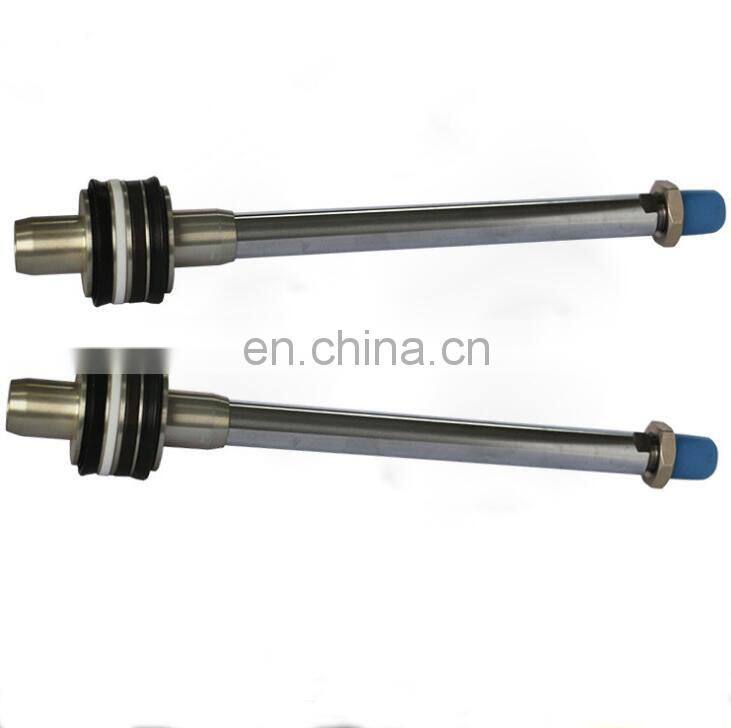

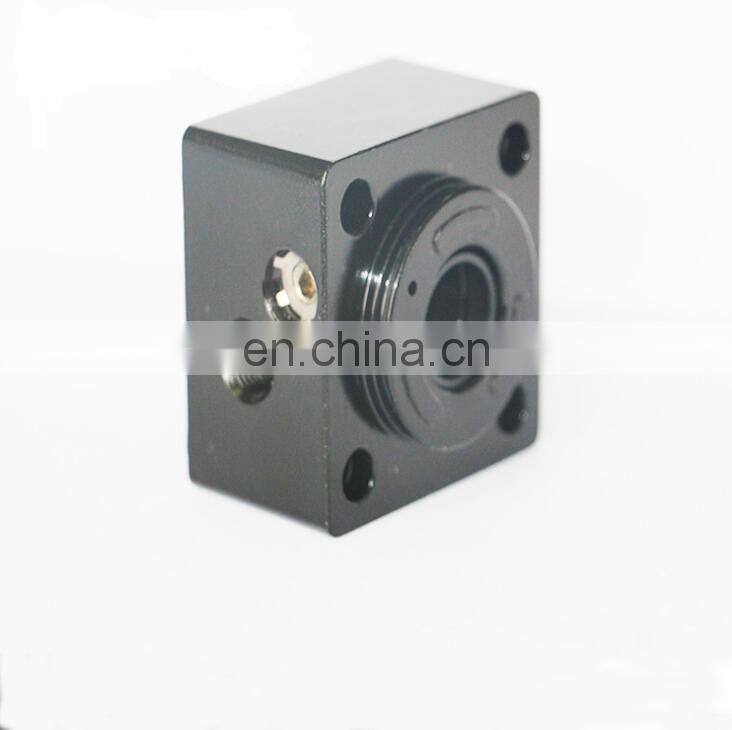

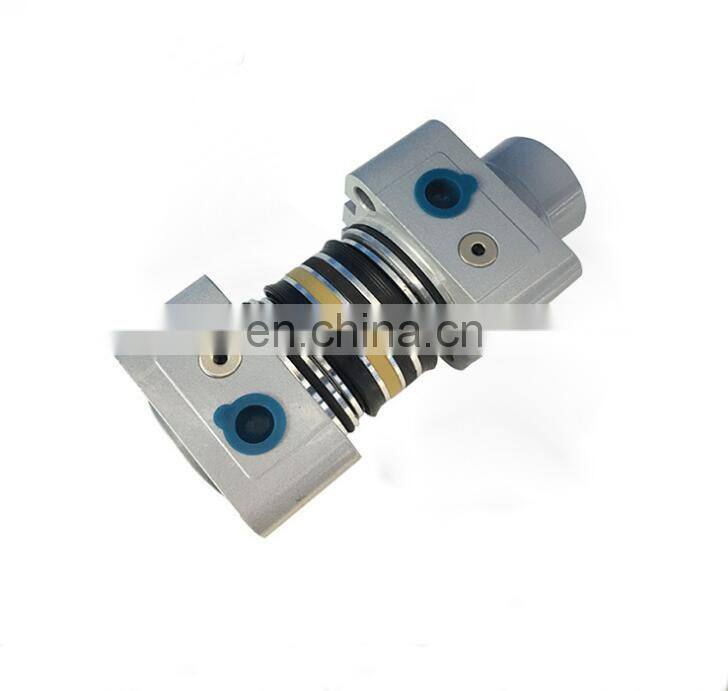

High quality aluminum alloy mini type pneumatic cylinder kits
1:AIRTAC standard pneumatic cylinder.
2: widely used in machinery.
3:Bore size from 16 to 40mm
4:Long service of lifespan
AIRTAC Standard Aluminum Alloy pneumatic cylinder.
Features:
1.Good replacement for AIRTAC cylinder.
2.Standard design,simple structure,low starting pressure,smooth motion.
3..Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly,safely and with low noise.
4.Using self-lubricating bearing, the piston rod is lubrication free.
5.Precision grinding piston rod to guarantee long working lifetime.
6.Bore size:16mm,20mm,25mm,32mm,40mm.
7.Various back cover type:Fishtail,rounded,horizantal.
| Diameter (mm) | 16 | 20 | 25 | 32 | 40 | |
| Movement pattern | Double action or single action | |||||
| Motion pattem | Air | |||||
| fixed Type | Normal rate: lb / fa / sdb type | |||||
| Working pressure range | 0.1-0.9Mpa | |||||
| Pressure resistance secured | 1.35Mpa | |||||
| Operating temperature range | -5-70 ° C C | |||||
| Operating speed range | 30-800 mm/s | |||||
| Buffer type | standard Type | Anti-crash pad | ||||
| cushioning type | adjustable damper | |||||
| Port Size | M5 * 0.8 | G 1/8" | G 1/8" | G 1/8" | G 1/4" | |
Dimensions
Imagen
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order .
If you need more product about pneumatic , please contanct me, thanks.
Skype:live:hunter_1656
