CJ1 High Quality Single Acting Stainless Steel Compact Pin Air Cylinder

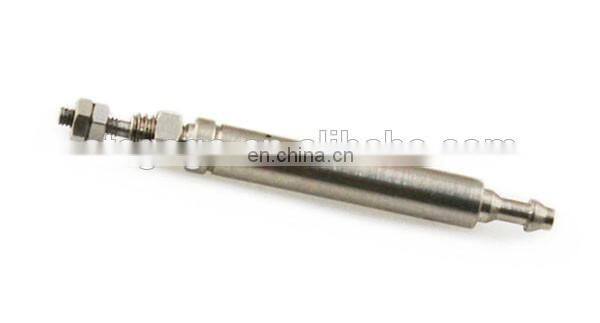

CJ1 High Quality Single Acting Stainless Steel Compact Pin Air Cylinder photo-1

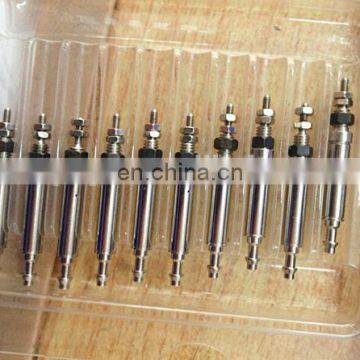

CJ1 High Quality Single Acting Stainless Steel Compact Pin Air Cylinder photo-2
US$ 5 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
GOGO
Place of Origin:
Zhejiang, China
Model Number:
CJ1B
Payment & Shipping
Payment Methods:
Port of Shipment:
Ning Bo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name GOGO
Place of Origin Zhejiang, China
Model Number CJ1B
Power Pneumatic
Standard or Nonstandard Standard
Structure Piston Cylinder
Shaft Diameter 2.5mm-4mm
Maximum Stroke 20mm
Body Material Stainless Steel

CJ1 high quality single acting stainless steel compact pin air cylinder

1.SMC CJ1 series Pin Cylinder
2.Equivalent to SMC CJ1 series pin cylinder
3.Bore size(mm): 4mm

 Order

CJ1 high quality single acting stainless steel compact pin air cylinder

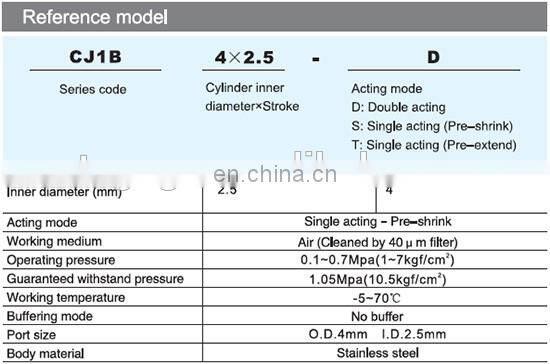

Specification



1.SMC style CJ1 series pin cylinder.
2.Equivalent to SMC CJ1 series pin cylinder, with the same appearance.
3.Bore size(mm): 2.5 ,4.
4.Single acting, Single rod, Spring return
5.With barb fiting connection.



Bore size (mm)2.5 , 4
FluidAir
ActionSingle acting, Single rod, Spring return
Minimum operating pressure0.03 MPa
Maximum operating pressure0.7 MPa
Proof pressure1.05 MPa
Ambient and fluid temperature -20 to 80°C (No freezing)
CushionNone
LubricationNon-lube
Piston rod dia.2 mm
Piston rod threadM2x0.4

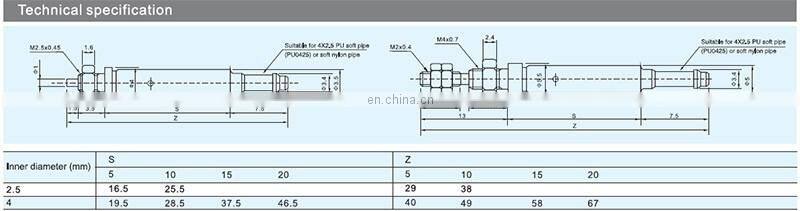

 Dimensions



CJ1 high quality single acting stainless steel compact pin air cylinder

CJ1 high quality single acting stainless steel compact pin air cylinder

Imagen

CJ1 high quality single acting stainless steel compact pin air cylinderCJ1 high quality single acting stainless steel compact pin air cylinderCJ1 high quality single acting stainless steel compact pin air cylinder

CJ1 high quality single acting stainless steel compact pin air cylinder

CJ1 high quality single acting stainless steel compact pin air cylinderCJ1 high quality single acting stainless steel compact pin air cylinderCJ1 high quality single acting stainless steel compact pin air cylinder





Packaging & Shipping

                              1.Inner packing: opp bag, then carton box for each product                                                                                                                              2.Outer packing: export standard carton, Foam outside protecting the goods against damage                          3.Usually we ship your order by sea or by air...                                                                                                    4.We do our best to ship your order within 1 week after receiving your payment                                                5.We'll tell you the tracking number once your order has been sent                                                                    6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal



Company Information

Q: What is your main market?



A: Our main market is north America, especially USA.



Q: Are you products standard?



A: Our model is standard, if you have specific demand, pls tell us.



Q: Do you have interest to do our own design items?



A: Absolutely! We have big interest.



Q: How to make the order?



A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.

 CJ1 high quality single acting stainless steel compact pin air cylinder
