CY3B40-800 High Quality Aluminum Alloy Rodless Cylinder 40mm Diameter 800mm Stroke Pneumatic Air Cylinder

CY3B40-800 High quality aluminum alloy rodless cylinder 40mm diameter 800mm Stroke pneumatic air cylinder

1. Specification

. CY3B Series rodless pneumatic cylinder are very wide used in automation line
2. Normally hole size : 10mm, 15mm, 20mm, 25mm, 32mm, 40mm
3. Use rubber cushion for standard type to keep the cylinder operating smoothly, safe and quiet.
4. Easier and various mounting.
5. type sliding bearing.
Diameter (mm)                         6                 10                15               20                 25             32                 40
Working fluid                             Compressed air
Proof pressure                         1.05MPa
Working pressure                     0.18 ~ 0.7Mpa
Working temperature                ~ 10 ~ 60 degrees
Piston speed                            50 ~ 500 mm / s
Cushion                                    Rubber bumpers on both ends
lubrication                                 No need lubrication
Mounting method                      Direct mounting type

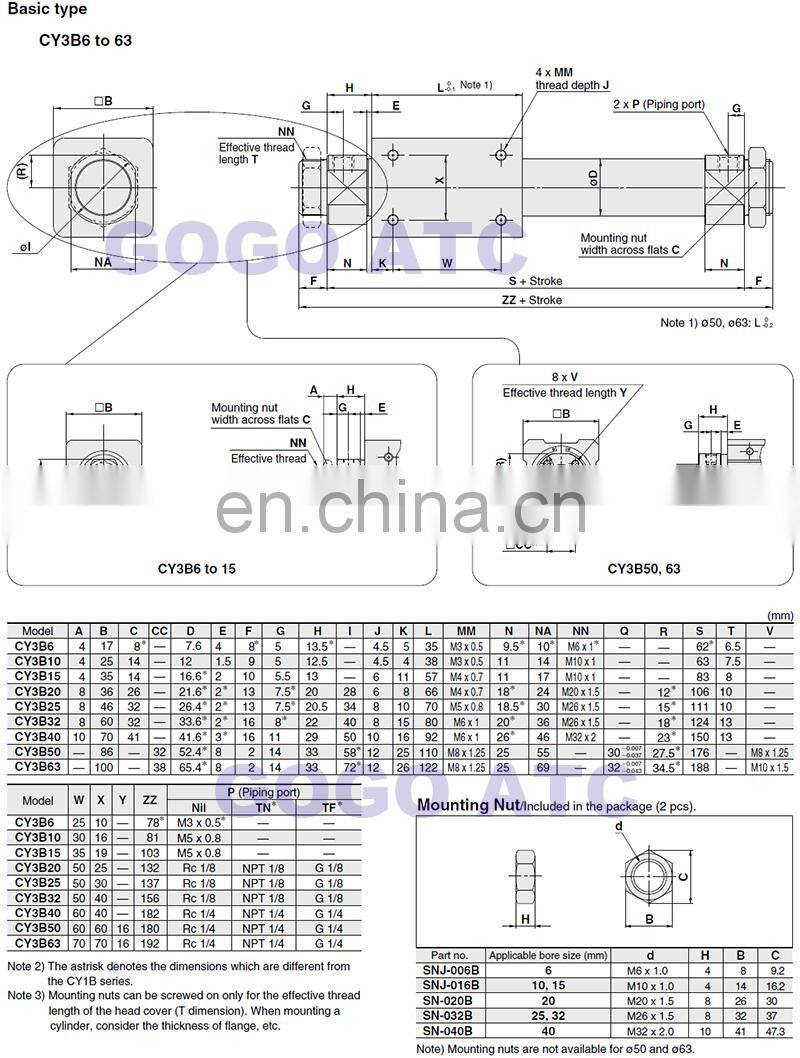

 Dimensions

Imagen
