Home > Products > Pneumatic Cylinder > High Quality Aluminum Alloy Double-acting Rodless Air Cylinder
High Quality Aluminum Alloy Double-acting Rodless Air Cylinder
- Ning Bo
- T/T Credit Card
You May Like
-
SRC Rotating Clamping Air Cylinder
-
MSQB20A Basic Type With Adjustment Bolt Rotary Table/Rack & Pinion Type Air Cylinder
-
China Ningbo Supplier Long Stroke Mini Pneumatic Cylinder
-
SMC Type Screw Thread Save Space Pneumatic Mini Cylinder
-
MA20 x 50 Double Action Mini Pneumatic Cylinder Bore 20mm Stroke 50mm Stainless Steel
-
CM2 /CDM2 Series Stainless Steel Mini Pneumatic Air Cylinder Double Action
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | CY1B | Power | Pneumatic | |
| Standard or Nonstandard | Standard | Structure | Other | |
| Shaft Diameter | 6mm~63mm | Maximum Stroke | 6000mm | |
| Body Material | Aluminum |
Product Description

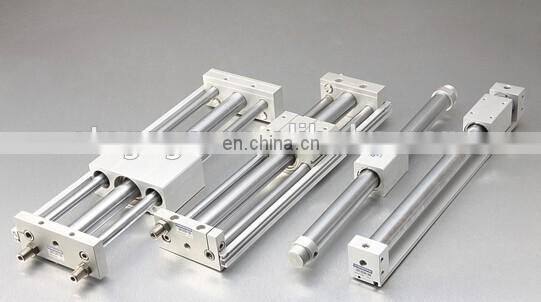

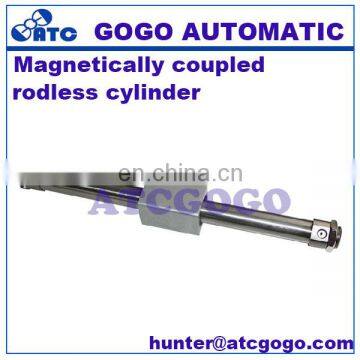

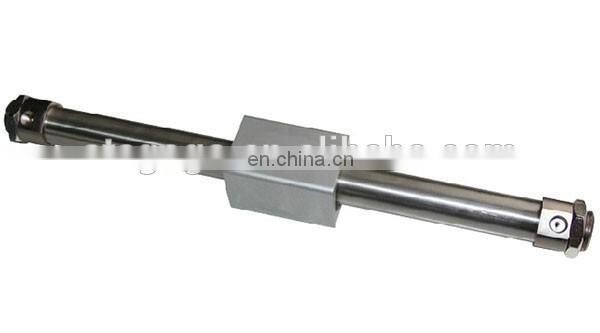

High quality aluminum alloy double-acting rodless air cylinder
1. Specification
. CY1S Series rodless pneumatic cylinder are very wide used in automation line
2. Normally hole size: 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm.
3. Use rubber cushion for standard type to keep the cylinder operating smoothly, safe and quiet.
4. Easier and various mounting.
5. type sliding bearing.
Diameter (mm) 6 10 15 20 25 32 40
Working fluid Compressed air
Proof pressure 1.05MPa
Working pressure 0.18 ~ 0.7Mpa
Working temperature ~ 10 ~ 60 degrees
Piston speed 50 ~ 500 mm / s
Cushion Rubber bumpers on both ends
lubrication No need lubrication
Mounting method Direct mounting type

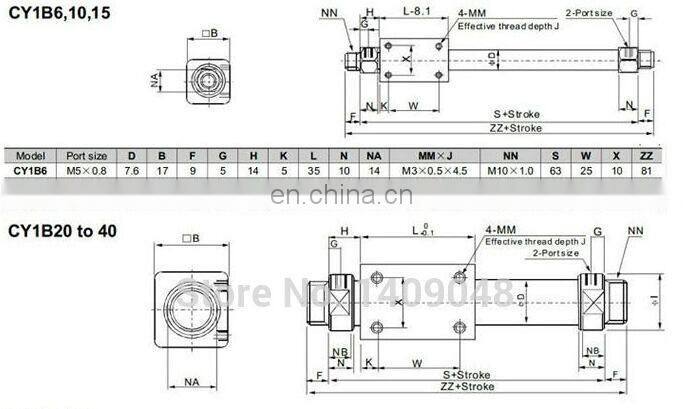

Dimensions
Imagen
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order .
Skype:live:hunter_1656
