Mechanical control valve 1/4 inch

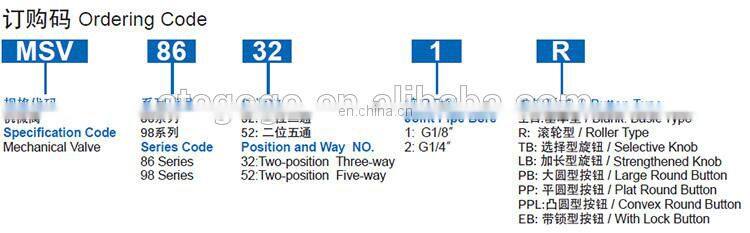

Specification
| MSV | 86 | 32 | - | 1 | R |
| Mechanical Valve | Body Size | Position and Way NO. | Port Size | Button Type | |
| 86 Series | 32:Two-position Three-way | 1:G1/8" | Blank:Basic Type | ||
| 98 Series | 52:Two-position Five-way | 2:G1/4" | R:Roller Type | ||
| TB:Selective Knob | |||||
| PB:Large Round Button | |||||
| PP:Plat Round Button | |||||
| PPL:Convex Round Button | |||||
| EB:With Lock Button | |||||
Specifications
| Model | MSV86321 | MSV86522 | MSV98322 |
| Working Medium | 40 Micron Filtered Air | ||
| Position and Way NO. | Two-position Three-way | Two-position Five-way | Two-position Three-way |
| Effective Setion Area(mm²) | 12 | 16 | 16 |
| CV Value | 0.67 | 0.89 | 0.89 |
| Working Pressure | 0~0.8MPa | ||
| Environment Temperature | 0~60℃ | ||
| Joint Pipe Bore Size | G1/8" | G1/4" | G1/4" |

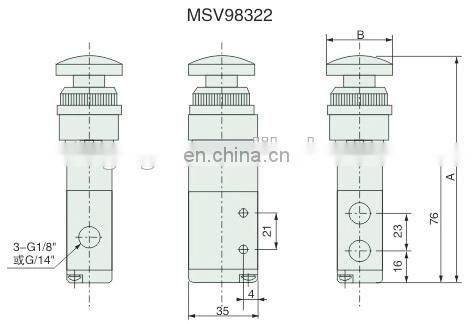

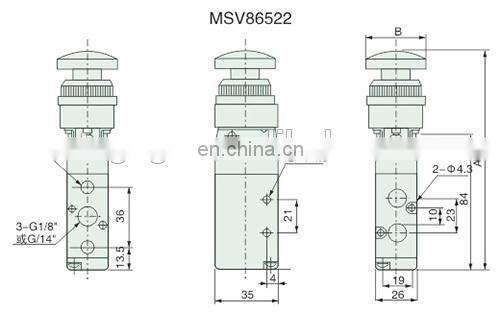

Dimensions
Packing
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
