US$ 5 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
stainless tank valve
Place of Origin:
Zhejiang, China
Model Number:
SPX series
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solenoid Valve Stainless Steel 12 Volt Normally Open 15mmUS$ 5 - 50MOQ: 1 Piece -
Plastic Water Solenoid Valve 24vUS$ 2 - 5MOQ: 1 Piece
-
Unid Solenoid Valve Three WayUS$ 12 - 15MOQ: 1 Piece
-
GOGO High Temperature Pneumatic ValvesUS$ 2.9 - 3.6MOQ: 1000 Pieces
-
Solenoid Valve With TimerUS$ 5 - 50MOQ: 1 Piece
Brand Name
stainless tank valve
Place of Origin
Zhejiang, China
Model Number
SPX series
Standard or Nonstandard
Standard
Power
Solenoid
Port Size
1/8" 1/4" 3/8" 1/2" 1" 2"
Temperature of Media
Medium Temperature

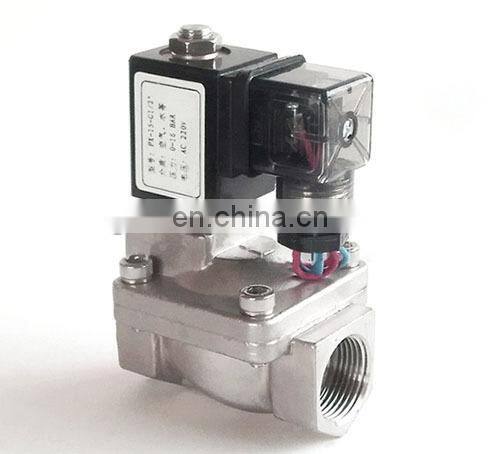

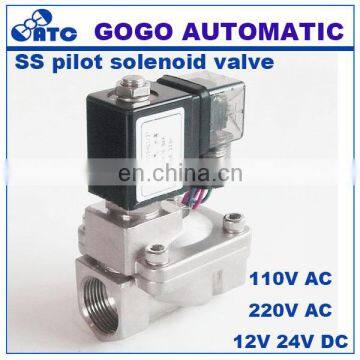

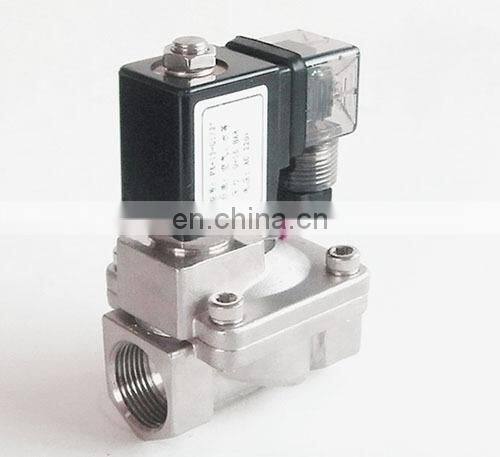

Stainless tank valve
1. Normally closed
2. Normally open
Specification
| Pattern: | Two-port two-position | |||
| Principium: | Pilot Diaphragm type | |||
| Control mode: | normally close | |||
| Valve body: | brass ,stainless steel | |||
| Diaphragm material: | NBR: ≤80°C ,EPDM≤120°C ,FKM: ≤150°C ,PTFE≤180°C | |||
| Working pressure: | 0.5~15bar | |||
| Max pressure: | 25bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,hot water ,Liquid ,oil ect. | |||
| Application: | Medium pressure large-flow air water control system | |||
| Model | Pipe | Orifice Diameter(mm) |
Principium | CV | Body material |
Seal | Work Pressure |
| PX-M03 | 1/8" 1/4" | 2.5 | Pilot Diaphragm type | 0.23 | Brass , SS304 |
NBR | 0-16bar |
| PX-10 | 3/8" | 15 | 4.6 | NBR | 0.5-16bar | ||
| PX-15 | 1/2" | 15 | 4.6 | NBR | 0.5-16bar | ||
| PX-20 | 3/4" | 20 | 8.5 | NBR | 0.5-16bar | ||
| PX-25 | 1" | 25 | 12 | NBR | 0.5-16bar | ||
| PX-35 | 1-1/4" | 35 | 26 | NBR | 0.5-16bar | ||
| PX-40 | 1-1/2" | 35 | 26 | NBR | 0.5-16bar | ||
| PX-50 | 2" | 50 | 48 | NBR | 0.5-16bar |
Dimensions
(MM)
| Orifice(mm) | A | B | C | D | E |
| DN2.5 | 40 | 26 | 80 | 52 | 30 |
| DN10 | 68 | 49 | 107 | 52 | 30 |
| DN15 | 68 | 49 | 107 | 52 | 30 |
| DN20 | 76 | 57 | 114 | 52 | 30 |
| DN25 | 96 | 70 | 122 | 52 | 30 |
| DN35/40 | 120 | 90 | 141 | 52 | 30 |
| DN50 | 150 | 112 | 158 | 52 | 30 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
