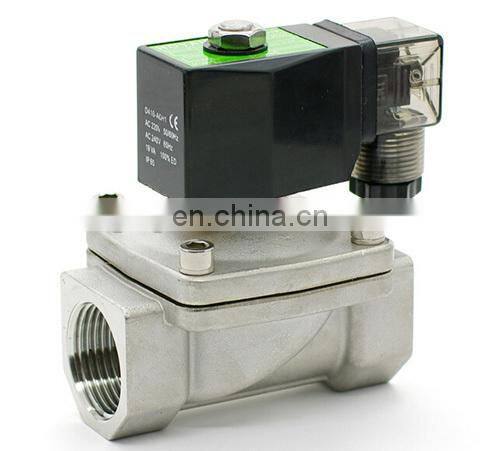

Solenoid valve stainless steel 12 volt normally open 15mm
1. Brass ;
2. Stainless steel .
Specification
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| PU-03 | 1/8" 1/4" | 2.5 | direct acting type | 0.3 | Brass or SS304 | NBR | 0-10bar |
| PU-04 | 1/4" | 4 | 0.58 | 0-10bar | |||
| PU-05 | 1/4" | 5 | 0.65 | 0-7bar | |||
| PU-06 | 1/4" | 6 | 0.8 | 0-5bar | |||
| PU-10 | 3/8" | 15 | Kick pilot type | 4.6 | 0-10bar | ||
| PU-15 | 1/2" | 15 | 4.6 | 0-10bar | |||
| PU-20 | 3/4" | 20 | 8.5 | 0-10bar | |||
| PU-25 | 1" | 25 | 12 | 0-10bar | |||
| PU-35 | 1-1/4" | 35 | 24 | 0-10bar | |||
| PU-40 | 1-1/2" | 35 | 29 | 0-10bar | |||
| PU-50 | 2" | 50 | 48 | 0-10bar | |||
| PU-25F | Flange | 25 | 12 | 0-10bar | |||
| PU-35F | 35 | 24 | 0-10bar | ||||
| PU-40F | 40 | 29 | 0-10bar | ||||
| PU-50F | 50 | 48 | 0-7bar |
Dimensions
(mm)
| Size | A | B | C | D | E |
| DN2.5 | 40 | 26 | 66 | 27 | 30 |
| DN4/5/6 | 40 | 26 | 75 | 59.5 | 38 |
| DN10 | 65 | 47 | 93 | 59.5 | 38 |
| DN15 | 65 | 47 | 93 | 59.5 | 38 |
| DN20 | 72 | 54 | 100 | 59.5 | 38 |
| DN25 | 90 | 70 | 108 | 59.5 | 38 |
| DN35/40 | 120 | 90 | 131 | 64.5 | 48 |
| DN50 | 150 | 112 | 146 | 64.5 | 48 |
| DN35/40(DC) | 120 | 90 | 150 | 65.5 | 63 |
| DN50(DC) | 150 | 112 | 165 | 65.5 | 63 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
Packing
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Shipment and Payment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
About us
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
