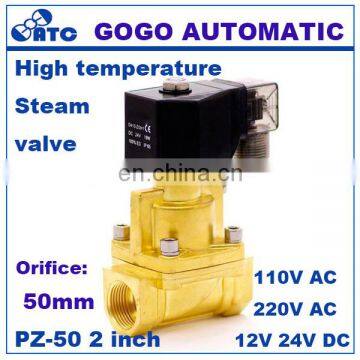

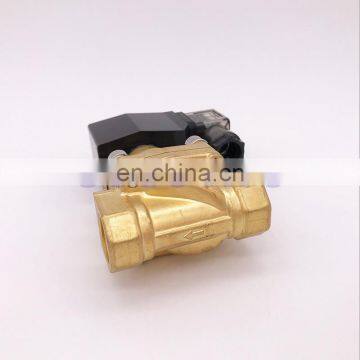

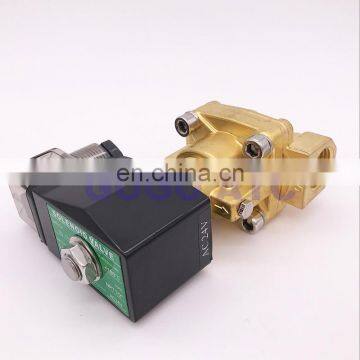

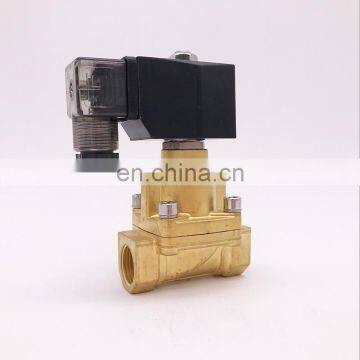

Pneumatic steam control valve 2 inch brass
1. Normally closed
2. Normally open
Specification
| Pattern: | Two-port two-position | |||
| Principium: | pilot piston type | |||
| Control mode: | normally close | |||
| Valve body: | brass ,stainless steel | |||
| Diaphragm material: | FKM: ≤150°C ,TEFLON≤180°C | |||
| Working pressure: | 0.5~25bar | |||
| Max pressure: | 40bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,hot water ,steam ,oil ect. | |||
| Application: | high pressure large-flow steam water control system | |||
| Model | Pipe | Orifice Diameter(mm) |
Principium | CV | Body material |
Seal | Work Pressure |
| PZ-M03 | 1/8" 1/4" | 2.5 | Pilot piston type | 0.65 | Brass , SS304 |
FKM | 0-16bar |
| PZ-04 | 1/4" | 4 | 0.8 | FKM | 0-7bar | ||
| PZ-10 | 3/8" | 15 | 1.8 | TEFLON | 0.5-25bar | ||
| PZ-15 | 1/2" | 15 | 4.6 | TEFLON | 0.5-25bar | ||
| PZ-20 | 3/4" | 20 | 8.5 | TEFLON | 0.5-25bar | ||
| PZ-25 | 1" | 25 | 12 | TEFLON | 0.5-25bar | ||
| PZ-35 | 1-1/4" | 35 | 24 | TEFLON | 0.5-25bar | ||
| PZ-40 | 1-1/2" | 35 | 29 | TEFLON | 0.5-25bar | ||
| PZ-50 | 2" | 50 | 48 | TEFLON | 0.5-25bar |
Dimensions
(mm)
| Orifice(mm) | A | B | C | D | E |
| DN2.5 | 40 | 28 | 79 | 59.5 | 38 |
| DN4 | 40 | 28 | 79 | 59.5 | 38 |
| DN10 | 68 | 49 | 122 | 59.5 | 38 |
| DN15 | 68 | 49 | 122 | 59.5 | 38 |
| DN20 | 76 | 57 | 133 | 59.5 | 38 |
| DN25 | 96 | 70 | 144 | 59.5 | 38 |
| DN35/40 | 120 | 90 | 168 | 59.5 | 38 |
| DN50 | 150 | 112 | 190 | 59.5 | 38 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | EPDM ,FKM .PTFE | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
Packing
