Vacuum Solenoid Valve -1bar-1bar 3/4 Inch Normally Close Vacuum Pressure Safety Valve
- Ningbo
- T/T Credit Card
You May Like
-
Pressure Vacuum Valve -1bar-1bar 3/8 Inch Normally Close Vacuum Gate Valve
-
Brass Vacuum Solenoid Valve -1bar-1bar 1/4 Inch Normally Close Vacuum Regulator Valve
-
Brass Valve Vacuum Relief Valve -1bar-1bar 1/2 Inch Valve for Vacuum Bag
-
Brass Valve Vacuum -1bar-1bar 1 Inch Normally Close Vacuum Valve
-
Brass Solenoid Valve Vacuum -1bar-1bar 2 Inch Normally Close Vacuum Solenoid Valve
-
QJH High Pressure Ball Core Stop Valve / Globe Stop Valve
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | Liquid filling machine parts | Application | General | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Power | Manual | Port Size | 1/8" 1/4" 3/8" 1/2" | |
| Temperature of Media | Medium Temperature |
Product Description
Pneumatic valve, high quality filter regulator FRL,valve fittings, air hose and cylinder parts for automatic filling machine water
brass solenoid valve vacuum -1bar-1bar 1 inch normally close vacuum solenoid valve
Specification
The 2W series water valve are zero differential valve series and are used for many conditions especially
for water treatment system,with thread size from G1/8" to G2".
1.Port size: G1/8"~ G2"
2.Motion pattern: Direct Action
3.Working Medium: Air,Water,Oil,Gas
4.Type: Normal Close Type
5.Working Pressure: Air:0-0.7MPa; Water:0-0.5MPa; Oil: 0-0.5MPa. Max,Pressure Resistance: 1.0Mpa
6.Operating Temperature: -5-80°C
7.Voltage Range: ±10%
8.Material of valve body: Brass
9.Material of seal: NBR,EPDM or FKM
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Fluid | Air, Water, Oil | |||||||||
| Action | Direct Acting, Normally Closed | |||||||||
| Type of Actuation | 2 port 2 position | |||||||||
| Orifice Size | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||
| Cv | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||
| Port Size | G1/8 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G1 | G1/1/4 | G1/1/2 | G2 |
| Viscosity Limit | Under 20CST | |||||||||
| Operating Pressure Range | Air:0~0.7MPa, Water:0~0.5MPa, Oil: 0~0.5MPa | |||||||||
| Proof Pressure | 1.05MPa | |||||||||
| Ambient and Fluid Temperature | -5 ~ 80 degrees centigrate | |||||||||
| Allowable Voltage Range | ±10% of rated voltage | |||||||||
| Material of Body | Brass | |||||||||
| Seal Material | NBR | |||||||||
| Power consumption | AC220V | 2.0W |
| DC12V,AC110V,AC380V | 2.5W | |
| DC24V | 3.0W | |
| AC24V | 3.5W | |
| Allowable voltage range | -15%~10% | |
| IP rate | IP65 | |
| Insulation rate | Class F | |
| Action | Internally piloted | |
| Min. activate time | 0.05 s | |
| Lubrication | Needless |
|

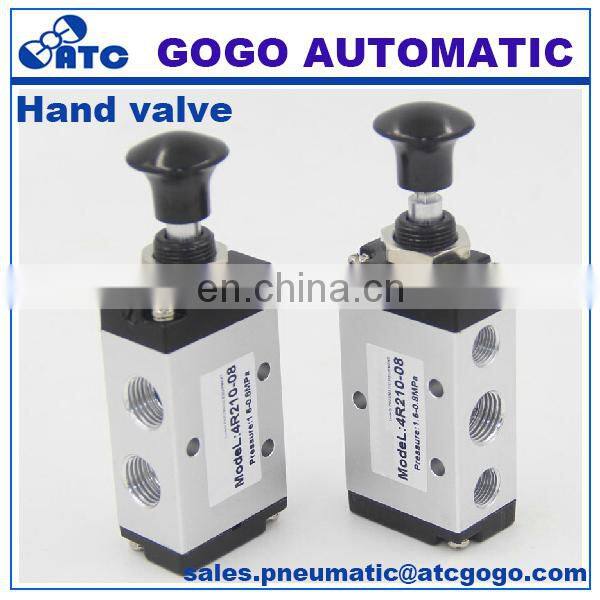

5 way 2 position pneumatic hand control valve
5 port 2 position pneumatic control valve
hand control valve

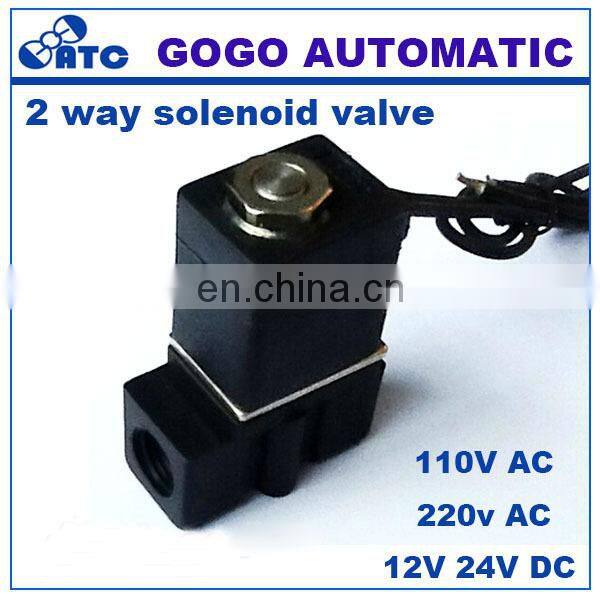

2 way water control valve
3 way air water control valve
brass solenoid valve vacuum -1bar-1bar 2 inch normally close vacuum solenoid valve
vacuum pressure safety valve
