Home > Products > Water solenoid valve GOGO > SPU Series 2 Way 1/2 Orifice 15mm Zero Pressure Start Stainless Steel Solenoid Valve Normally Closed

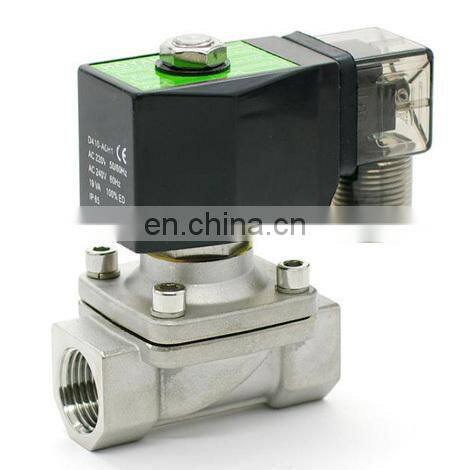

SPU Series 2 Way 1/2 Orifice 15mm Zero Pressure Start Stainless Steel Solenoid Valve Normally Closed
US$ 11.6 - 15.9
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
2 Way Air/ Water/oil Solenoid Valve 220V Normal Open G1 Inch
-
PU-20K G3/4 Inch 2 Way Normal Open Air Water Oil Brass Valve Direct Type General Solenoid Valve
-
2 Way Zero Pressure Start Solenoid Valve , 2 Inch Water Solenoid Valve
-
2 Way Brass NC Direct Action Water,air Solenoid Valve 220v/230v
-
GOGO PXC Series 2 Way Orifice 10mm Solenoid Valve Compact Pilot Valve
-
2 Way G11/2 Aluminum Alloy Body Pulse Valve Impulse Solenoid Valve for Using on Dust Collecting
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | SPU-15 | Structure | Control | |
| Standard or Nonstandard | Standard | Power | Pneumatic | |
| Port Size | 1/8" -2" | Media | Water | |
| Temperature of Media | Medium Temperature |
Product Description
SPU series 2 way 1/2 orifice 15mm zero pressure start stainless steel solenoid valve normally closed
Specification
| Model | Tube | Orifice (Mm) | CV | Pressure (bar) | |||||
| AC | DC | ||||||||
| Air | Water | oil | Air | Water | oil | ||||
| SPU-03 | 1/8"1/4" | 2.5 | 0.23 | 0-10 | 0-10 | 0-7 | 0-10 | 0-10 | 0-7 |
| SPU-04 | 1/4" | 4 | 0.58 | 0-7 | 0-7 | 0-5 | 0-7 | 0-7 | 0-5 |
| SPU-05 | 1/4" | 5 | 0.65 | 0-5 | 0-5 | 0-3 | 0-5 | 0-5 | 0-3 |
| SPU-06 | 1/4" | 6 | 0.8 | 0-10 | 0-10 | 0-7 | 0-7 | 0-7 | 0-5 |
| SPU-10 | 3/8" | 15 | 4.6 | ||||||
| SPU-15 VALVE | 1/2" | 15 | 4.6 | ||||||
| SPU-20 | 3/4" | 20 | 8.5 | ||||||
| SPU-25 | 1" | 25 | 12 | ||||||
| SPU-35 | 5/4" | 35 | 26 | ||||||
| SPU-40 VALVE | 6/4" | 35 | 26 | ||||||
| SPU-50 | 2" | 50 | 48 | ||||||
| SPU-25F | Brida | 25 | 12 | ||||||
| SPU-35F | 35 | 24 | |||||||
| SPU-40F | 40 | 29 | |||||||
| SPU-50F | 50 | 48 | |||||||
| Pattern : | Two ports two positions | |||||
| Principium: | Pilot kick type | |||||
| Control model: | normally close | |||||
| valve body: | Stainless Steel | |||||
| Diaphragm: | NBR: <80 ° C, EPDM: <12 ° C FKM: <150 ° C | |||||
| Working pressure: | 0 ~ 10bar | |||||
| Max pressure: | 16bar | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | Air, water, hot water, oil ect. . | |||||
| Application: | Low pressure large-flow normally air water control system | |||||
Dimensions
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
