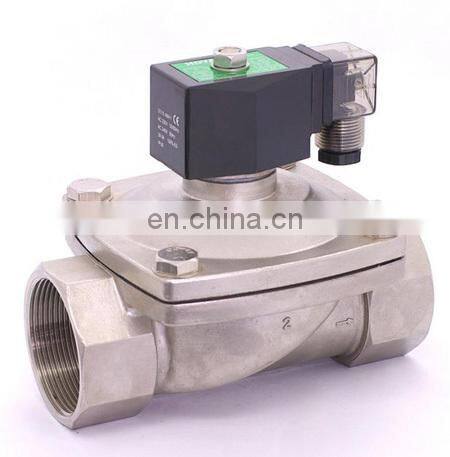

SPU series 2 way zero pressure start electric solenoid water valve 0-10bar 2 inch solenoid valve NBR seal
- 1000 Piece / Pieces per Month
- T/T Credit Card
- PU series normal colse zero pressure start solenoid valve, 2 way 3/4 orifice 20mm air water solenoid valve 220v
- SPU series 2 way zero pressure start stainless steel normally closed 3/4" solenoid valve
- SPU series 2 way 1/2 orifice 15mm zero pressure start stainless steel solenoid valve normally closed
- 2 way air/ water/oil solenoid valve 220V normal open G1 inch
- PU-20K G3/4 inch 2 way normal open air water oil brass valve direct type General solenoid valve
- 2 way zero pressure start solenoid valve , 2 inch water solenoid valve
Product Details
Brand Name: | GOGO | Place of Origin: | Zhejiang, China | Model Number: | SPU-50 |
Material: | Stainless Steel | Application: | General | Structure: | Control |
Standard or Nonstandard: | Standard | Pressure: | Low Pressure | Power: | Pneumatic |
Port Size: | 2" | Media: | Water | Temperature of Media: | Medium Temperature |
Product Description
SPU series 2 way zero pressure start electric solenoid water valve 2 inch solenoid valve NBR seal
Specification
Model | Tube | Orifice (Mm) | CV | Pressure (bar) | |||||
AC | DC | ||||||||
Air | Water | oil | Air | Water | oil | ||||
SPU-03 | 1/8"1/4" | 2.5 | 0.23 | 0-10 | 0-10 | 0-7 | 0-10 | 0-10 | 0-7 |
SPU-04 | 1/4" | 4 | 0.58 | 0-7 | 0-7 | 0-5 | 0-7 | 0-7 | 0-5 |
SPU-05 | 1/4" | 5 | 0.65 | 0-5 | 0-5 | 0-3 | 0-5 | 0-5 | 0-3 |
SPU-06 | 1/4" | 6 | 0.8 | 0-10 | 0-10 | 0-7 | 0-7 | 0-7 | 0-5 |
SPU-10 | 3/8" | 15 | 4.6 | ||||||
SPU-15 VALVE | 1/2" | 15 | 4.6 | ||||||
SPU-20 | 3/4" | 20 | 8.5 | ||||||
SPU-25 | 1" | 25 | 12 | ||||||
SPU-35 | 5/4" | 35 | 26 | ||||||
SPU-40 VALVE | 6/4" | 35 | 26 | ||||||
SPU-50 | 2" | 50 | 48 | ||||||
SPU-25F | Brida | 25 | 12 | ||||||
SPU-35F | 35 | 24 | |||||||
SPU-40F | 40 | 29 | |||||||
SPU-50F | 50 | 48 |
Pattern : | Two ports two positions | |||||
Principium: | Pilot kick type | |||||
Control model: | normally close | |||||
valve body: | Stainless Steel | |||||
Diaphragm: | NBR: <80 ° C, EPDM: <12 ° C FKM: <150 ° C; Teflon: <180 ° C | |||||
Working pressure: | 0 ~ 10bar | |||||
Max pressure: | 16bar | |||||
Voltage: | AC220V AC110V DC12V DC24V | |||||
Medium: | Air, water, hot water, oil ect. . | |||||
Application: | Low pressure large-flow normally air water control system |

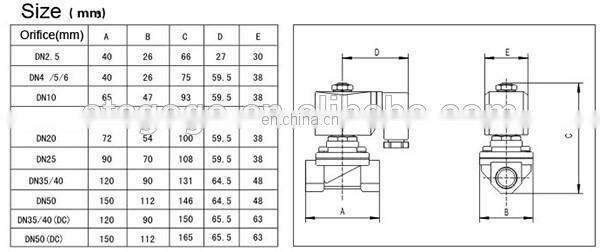

Dimensions
