Home > Products > Water solenoid valve GOGO > 4pcs Manifold Valve Connect Pipe O.D 4mm 6mm 8mm 10mm 12mm Aluminium Solenoid Valve 3V1-06 AC DC 3 Way Direct Acting Valve
4pcs Manifold Valve Connect Pipe O.D 4mm 6mm 8mm 10mm 12mm Aluminium Solenoid Valve 3V1-06 AC DC 3 Way Direct Acting Valve
- T/T Credit Card
You May Like
-
2 Way Copper Coil Water Solenoid Valve FB2E-V-08/10 3 Way 2 Position Brass Valve DC231Y-08/10 Wire Lead Type KSD 1/4 3/8 Inch
-
GOGO 3 Way Pneumatic Aluminium Solenoid Valve 3V1-06 Port 1/8" BSP AC DC Micro Control Gas Electric Valve Manifold
-
Normally Open/close Direct Acting Brass Gas Valve Zero-pressure Start 1/8" 1/4" BSP 1.5mm/2.5mm/4mm NBR 3/2 Way Solenoid Valve
-
D16011 Normal Open/close Direct Acting Brass Gas Valve 0 Pressure Start 1/8" 1/4" BSP 1.5mm/2.5mm/4mm NBR 3/2 Way Solenoid Valve
-
GOGO N.O N.C Direct Acting Stainless Steel 304 3/2 Way Gas Solenoid Valve 1/4" BSP 220V AC 1.5mm/2.5mm/3mm FKM NBR Seals Valve
-
0-16bar Screw Air Compressor Loading Solenoid Valve Q23-015K Q22-02K Intake Valve Red Five Ring Panel Mounting 3 Way Brass Valve
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, 3V1-06 | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", 1/8" | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO 3 way Pneumatic Aluminium solenoid valve
3V1-06 micro control gas valve with Plug type light
Connet pipe: O.D 4mm,6mm,8mm,10mm,12mm
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 110V AC ,220V AC ,12V DC ,24V DC .
1.Specification
Model | 3V1-M5 | 3V1-06 |
Working medium | go through 40 microns air by filtered | |
Action | e-style | |
Caliber | M5 | G1/8 |
Diameter(mm) | 1.2 | |
Using temperature range | -10~60 | |
lubrication | Don’t need | |
Using pressure | 0-0.8Mpa | |
Maximum pressure resistance | 1.2Mpa | |
Using voltage range | ±10% | |
Electrical connections form | Terminal type | |
Protection level / Insulation | IP65/F rank | |
Power consumption | AC:4.5V/DC:3W | |
Materials | aluminium alloy | |
The highest frequency of action | 10 per sec. | |
The shortest time of excitation | 0.05 sec. | |

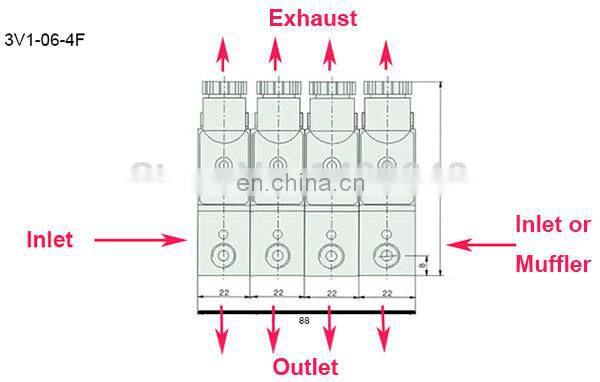

3 .Picture




4.Packing
4pcs parallel valve x1 set
Mounting brackets x2sets
