Home > Products > Water solenoid valve GOGO > GOGO Normally closed Direct acting Brass Small Gas 3/2 way plug Solenoid Valve 1/4" BSP 220V AC 1.5mm/2.5mm/3mm NBR Seals valve

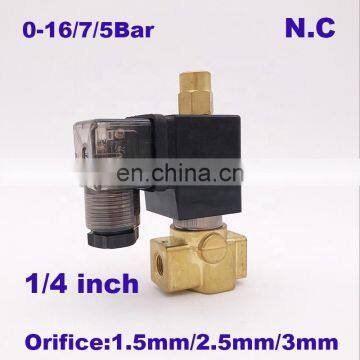

GOGO Normally closed Direct acting Brass Small Gas 3/2 way plug Solenoid Valve 1/4" BSP 220V AC 1.5mm/2.5mm/3mm NBR Seals valve
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
GOGO Normally open Brass Small Gas Solenoid Electric 3 ways valve 1/4" BSP 110V AC 1.5mm/2.5mm/3mm NBR Seals Direct valve
-
GOGO 0-10bar/5bar/4bar Normally open Direct acting Brass Small Gas valve 3 way Electric valve G1/8" NBR Seals
-
4pcs manifold valve connect pipe O.D 5/32 1/8 5/16 1/4 3/8 1/2 Aluminium solenoid valve 3V1-06 220V 12V 24V direct acting valve
-
4pcs manifold valve connect pipe O.D 4mm 6mm 8mm 10mm 12mm Aluminium solenoid valve 3V1-06 AC DC 3 way direct acting valve
-
2 way copper coil water solenoid valve FB2E-V-08/10 3 way 2 position brass valve DC231Y-08/10 Wire lead type KSD 1/4 3/8 inch
-
GOGO 3 way Pneumatic Aluminium solenoid valve 3V1-06 Port 1/8" BSP AC DC micro control gas electric valve manifold
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, PV-NC | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", G1/4" | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO Normally closed Direct acting Brass Small Gas
3 way Solenoid Valve 1/4" BSP NBR Seals
PV-M02 Orifice: 1.5mm ,Pressure: 0-16bar
PV-M03 Orifice: 2.5mm ,Pressure: 0-7bar
PV-03 Orifice: 3mm ,Pressure: 0-5bar
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 110V AC ,220V AC ,12V DC ,24V DC .
PV Series Small Direct 3 way Slenoid valve
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| PV-M02 | 1/8" 1/4" | 1.5 | direct acting | 0.07 | Brass | NBR | 0-16bar |
| PV-M03 | 1/8" 1/4" | 2.5 | 0.21 | NBR | 0-7bar | ||
| PV-03 | 1/8" 1/4" | 3 | 0.23 | NBR | 0-5bar |
1.Specification
| Pattern: | Three-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | General Purpose ,normally close ,normally open | |||
| Valve body: | brass ,stainless steel | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Single acting air cylinder, test equipment small-flow ,oil control system | |||

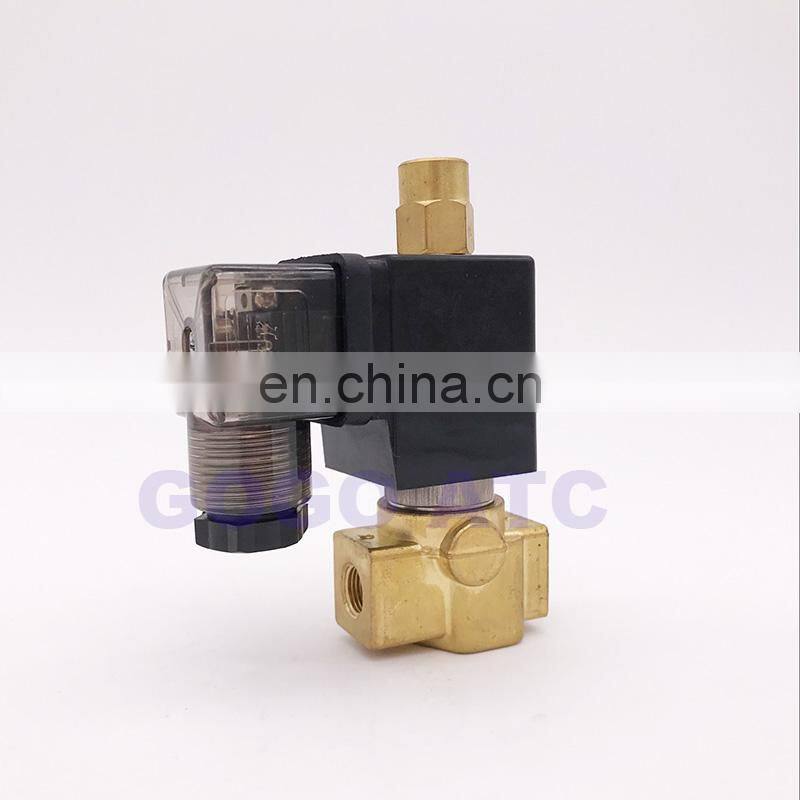

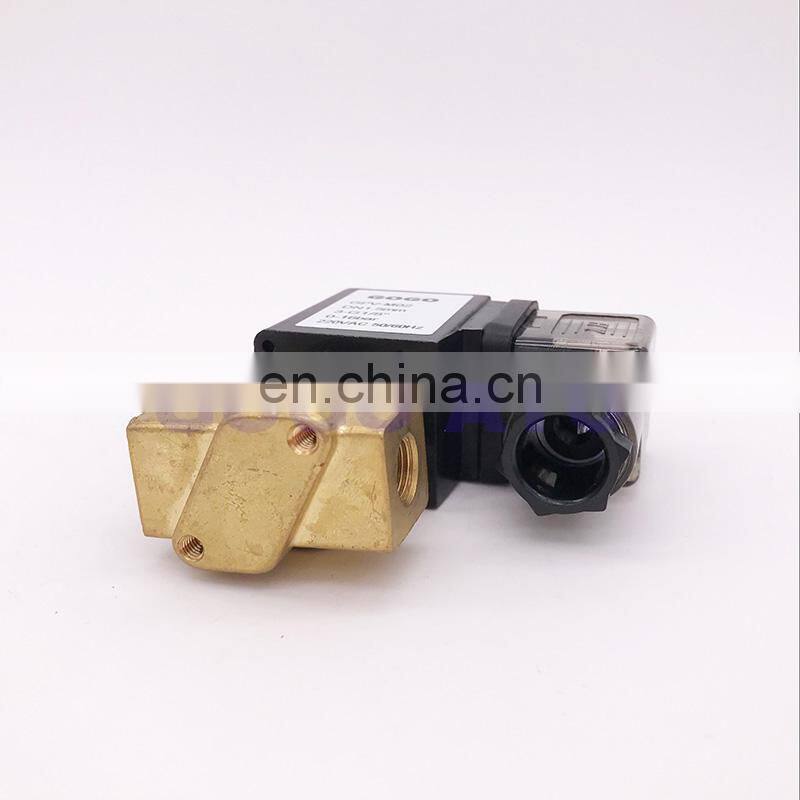

3 .Picture
4.Packing
one pieces valve + a carton
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
