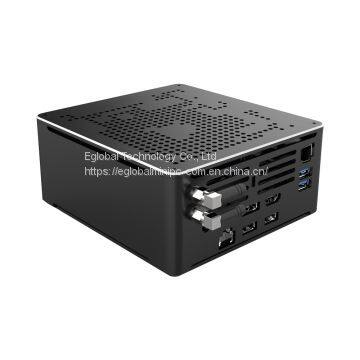

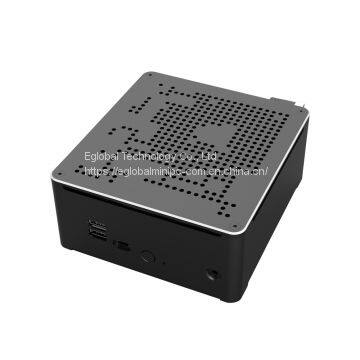

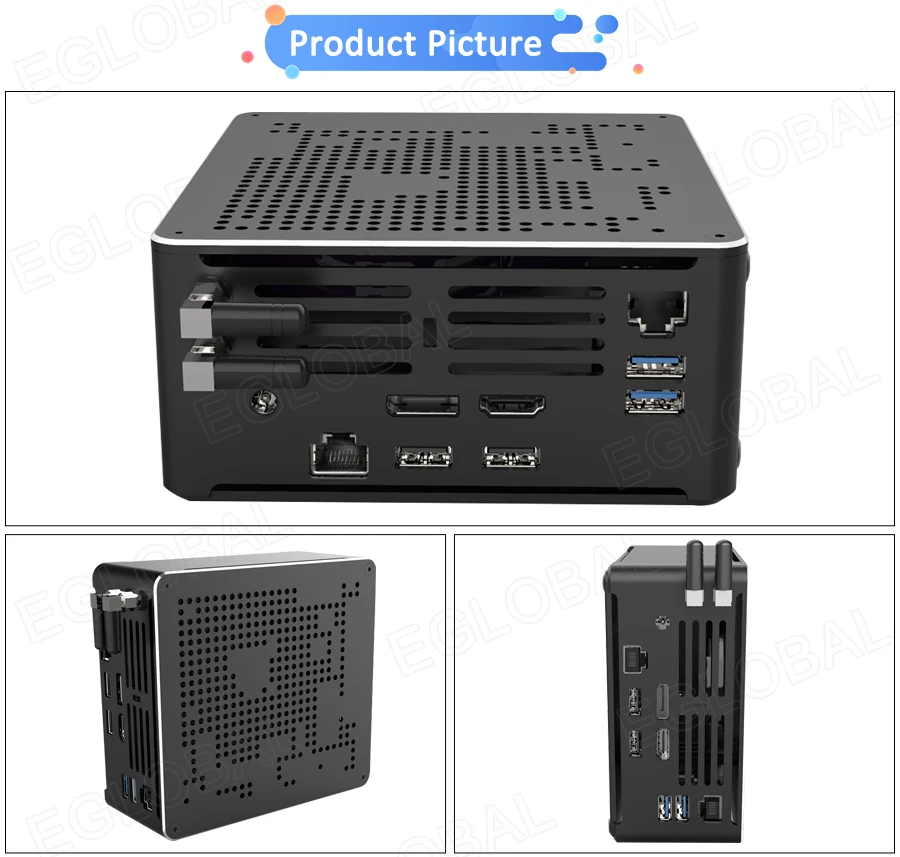

Eglobal Mini Pc Windows 10 S210H Intel Core i9 8950HK Pc Gaming Computer Desktop DDR4 DP1.2+HDMI2.0

CPU

Intel Core i9-8950HK

CPU install Method

BGA1440

TDP

45W

Level 2 Cache

Depend on CPU

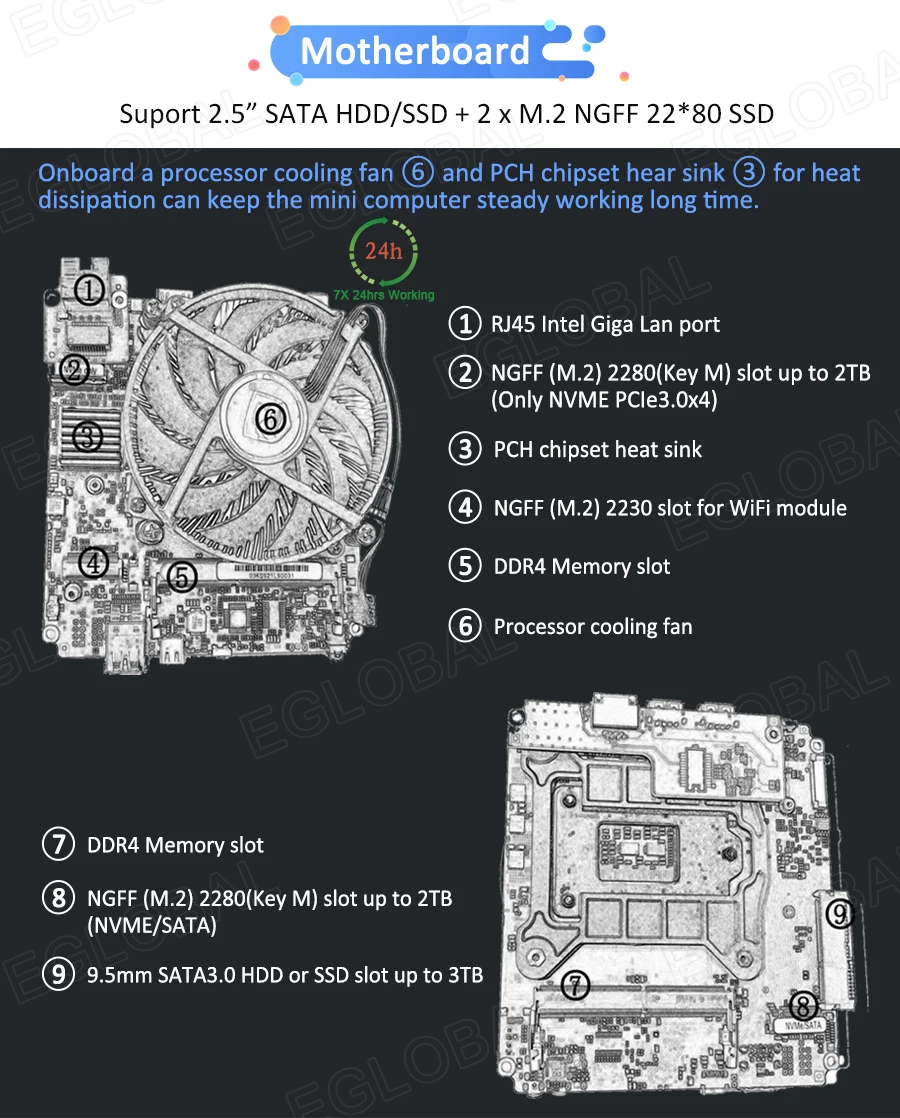

Motherboard

136 x 126mm customized size

Code Name

Intel Coffee Lake

Chipset

Intel 300 series PCH

Memory

2 x SO-DIMM Slot, up to 64GB DDR4

Dual Channel, DDR4-2800MHz, DDR4-2666MHz, DDR4-2400MHz, DDR4-2133MHz

ECC Memory Support: YES

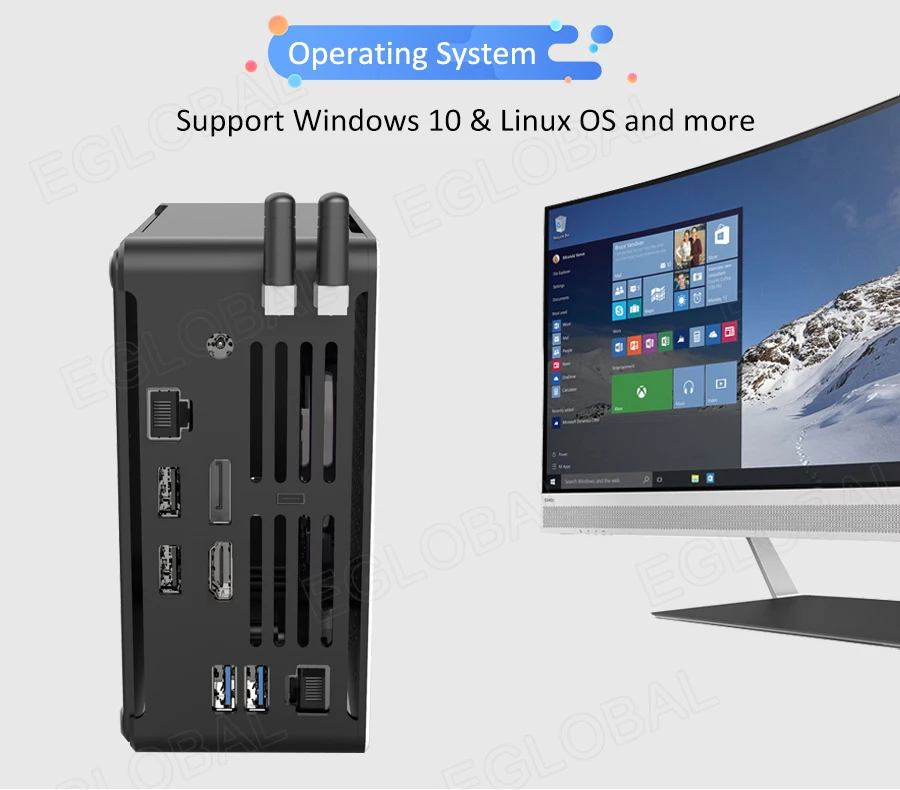

OS

Windows 10

Audio

Azalia Codec support 2.1 channel output

High Definition Audio Controller

Network

1)10/100/1000Mbps Ethernet

2) Intel® Ethernet Connection I219-V

3) Intel® Ethernet Connection I211-AT

Video

Intel® UHD Graphics 630

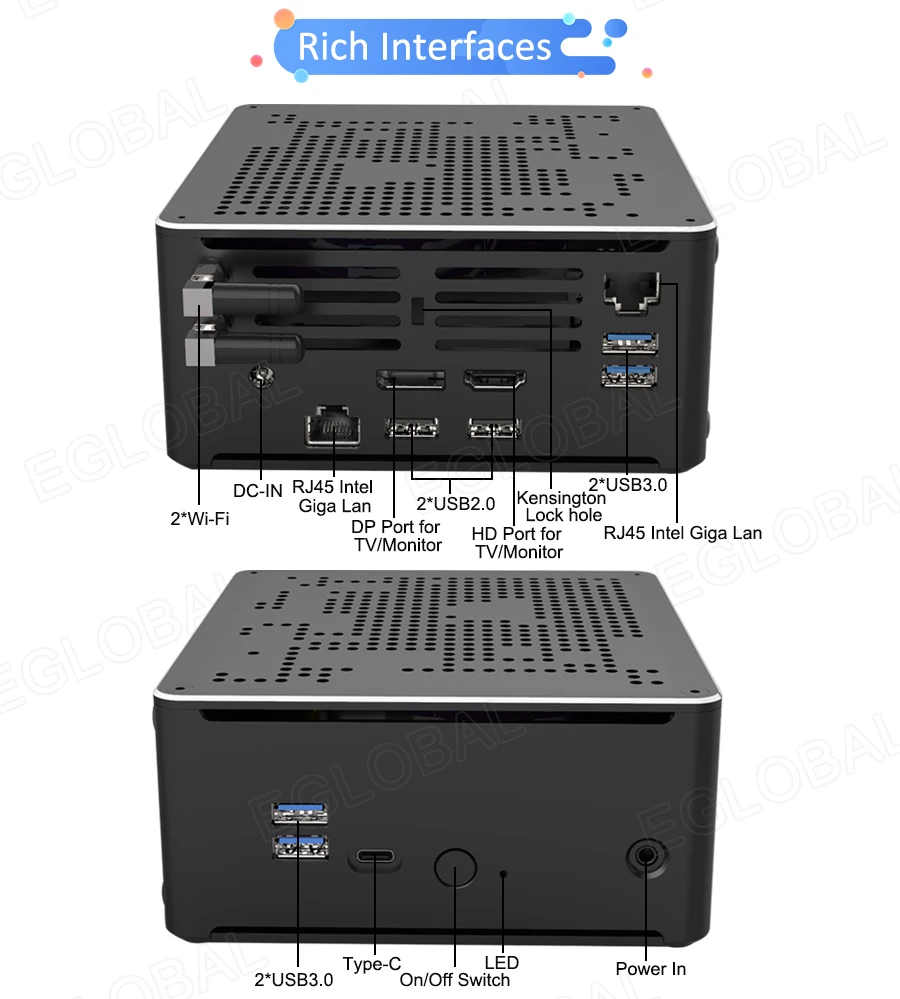

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 19V DC In

LED

1 x LED

USB

4 x USB3.0, 2X USB2.0

Type-C

1 x Type-C USB3.1

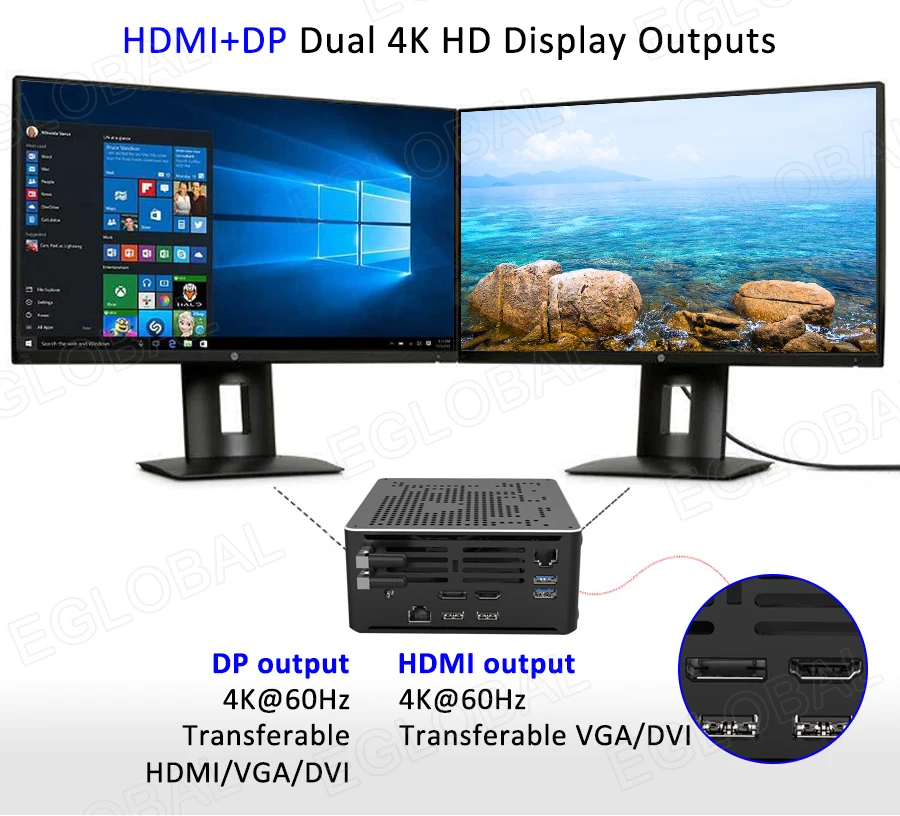

Display

1 x DP1.2 out(support 4k@60Hz), 1 x HDMI2.0 out(support 4K@60Hz)

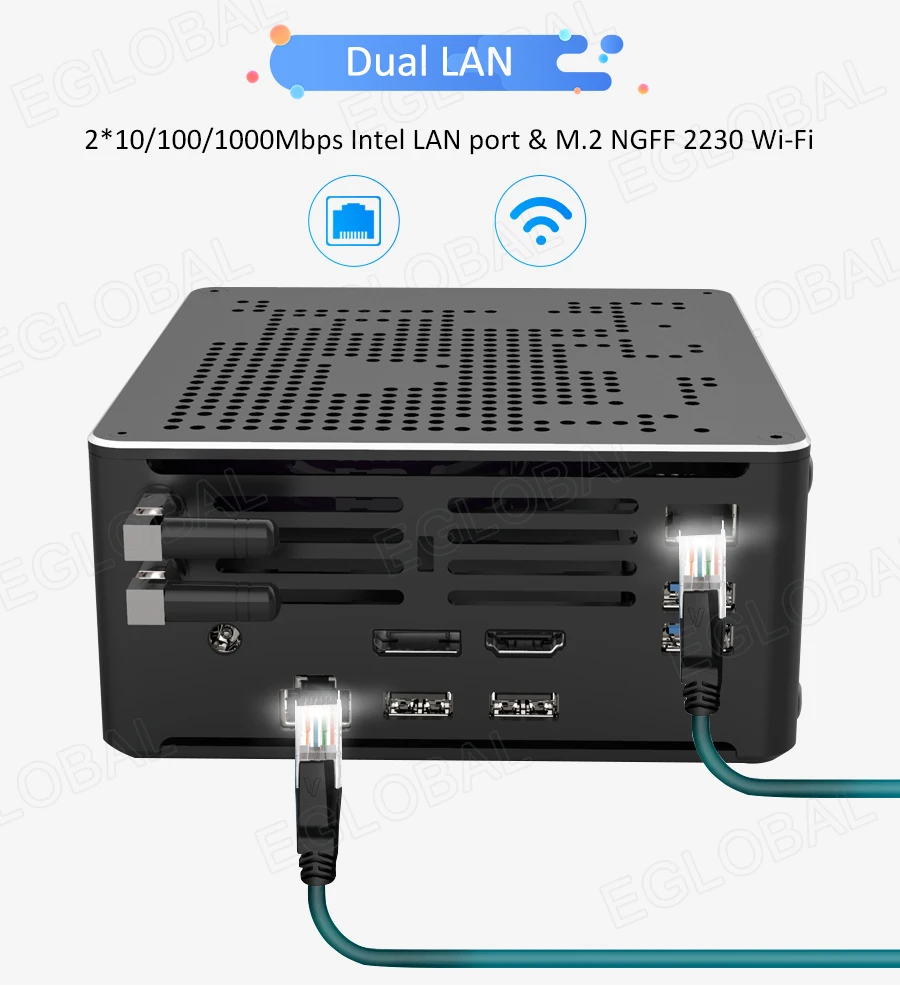

LAN

2 x RJ45 Intel Giga LAN

Audio

1 x Audio(MIC&SPK)

Others

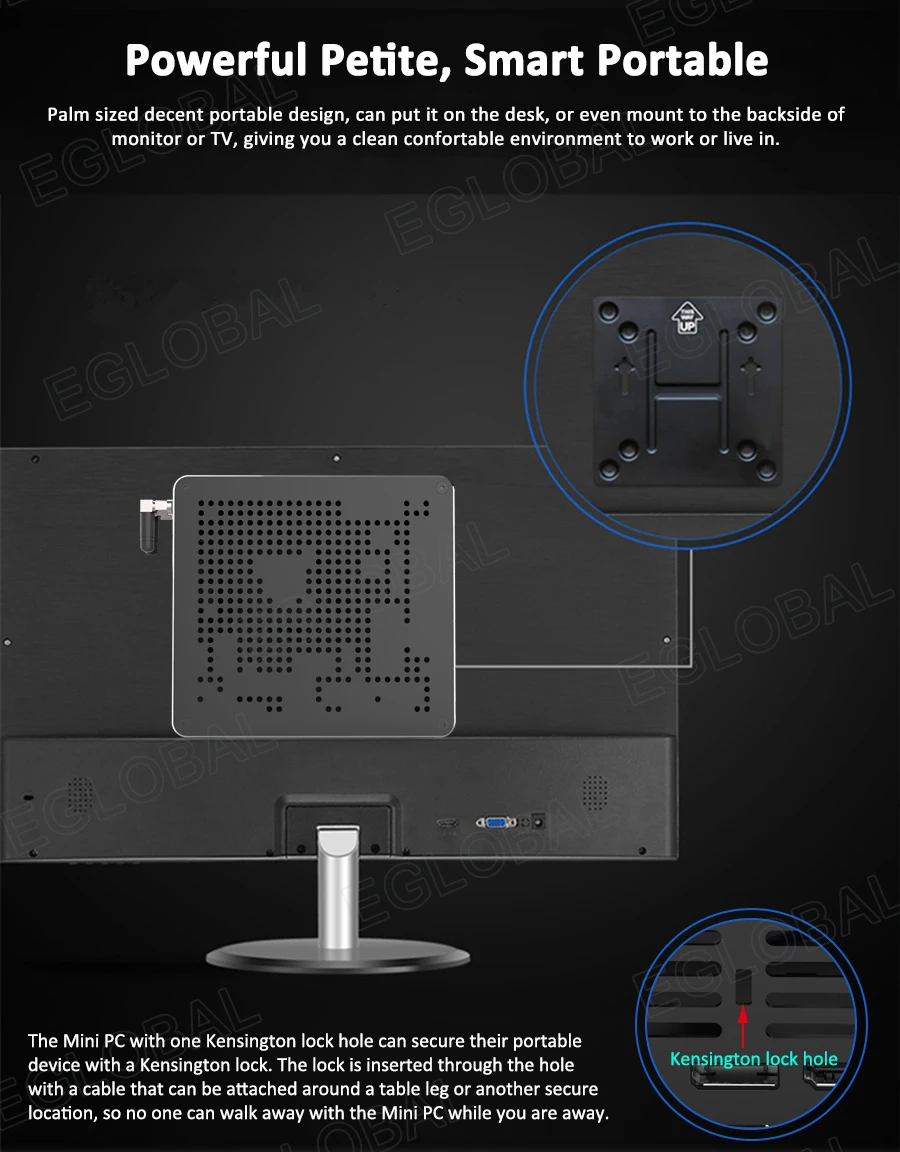

1 x Kensington Lock hole

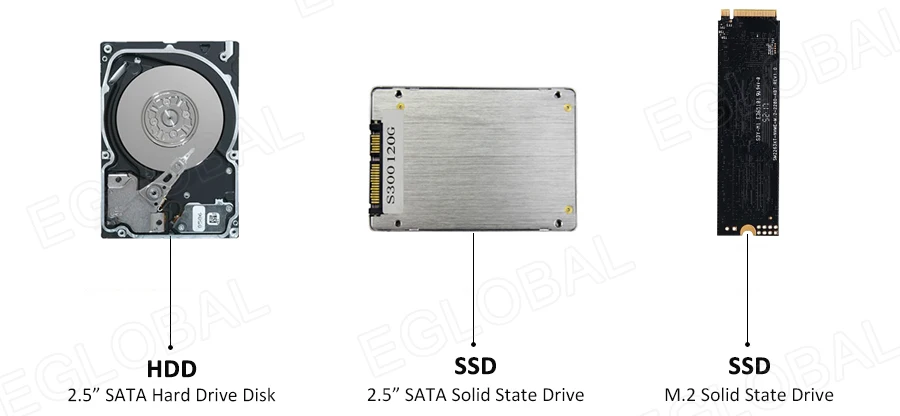

Storage

MSATA

1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4), support 6Gb/s

1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA), support 6Gb/s

SATA

1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s

Wi-Fi

Module

1 x M.2 NGFF 2230(Key E) slot for Wi-Fi module(2.4G or 5G Wi-Fi B/G/N/AC or Bluetooth)

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 19V 90W

Operating Temperature

0/70 Centigrade

Storage Temperature

-20/+80 Centigrade

Relative Humidity

0%~90% (non-condensing)

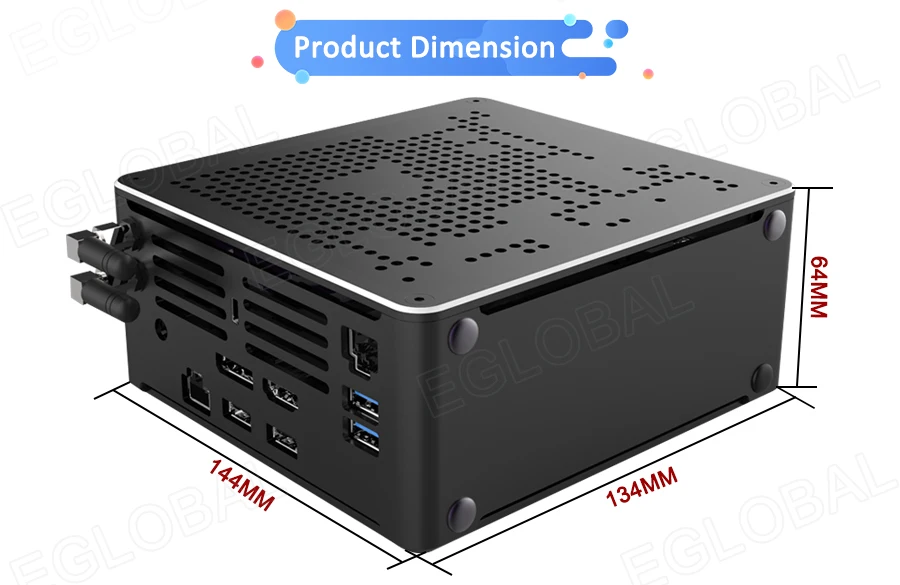

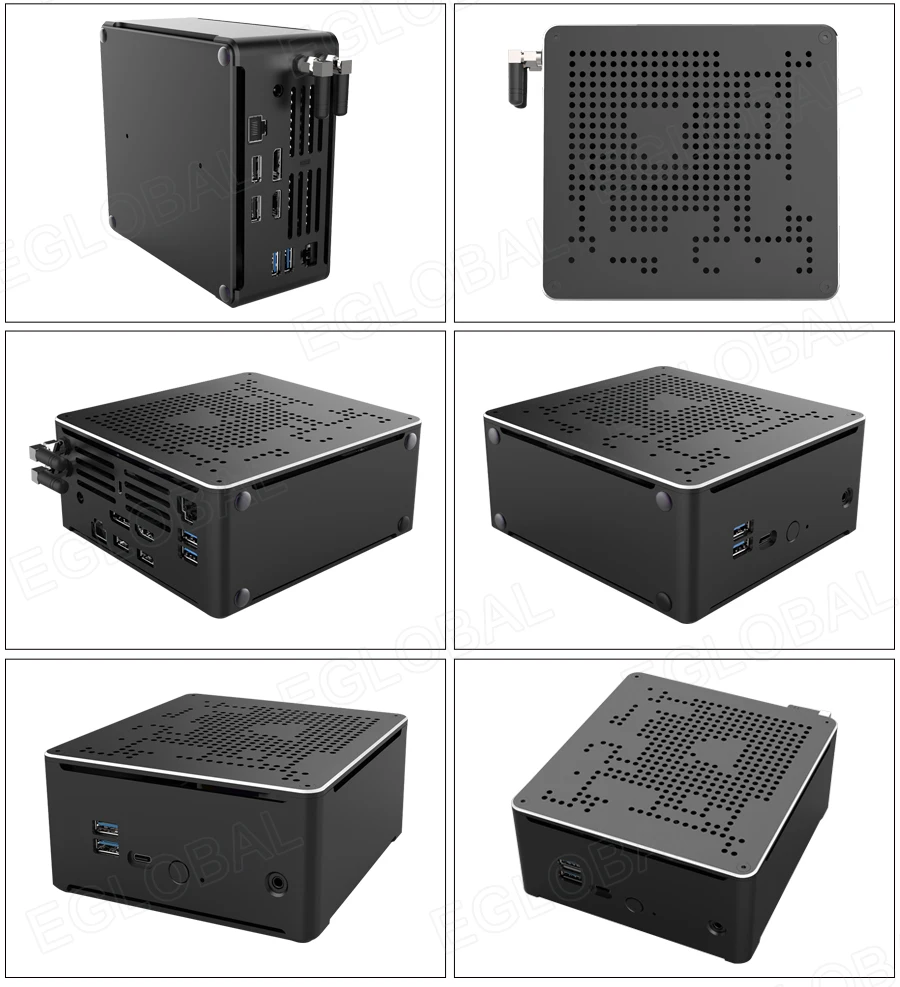

Product Dimension & Details

Size

134*144*64mm

Weight

Net 1.05kg, Gross 3.0kg

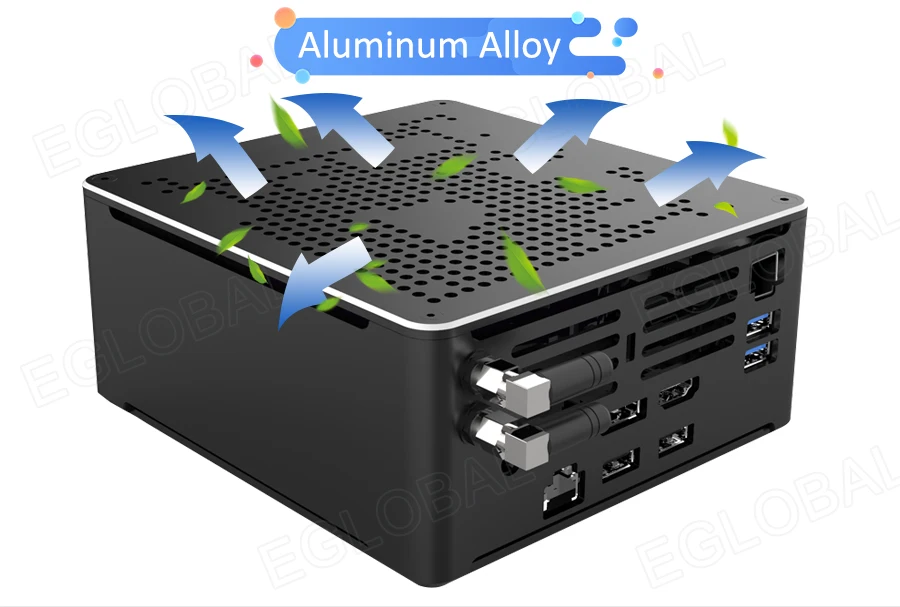

Shell

Brushed Black color aluminum alloy

Cooling Mode

Cooling Fan

Functions

1) Intel® Optane™ Memory Supported: Yes

2) Intel® Virtualization Technology (VT-x): Yes

3) Wake on Lan : Yes

4) Wake on AC : Yes

5) PXE Boot: Yes.

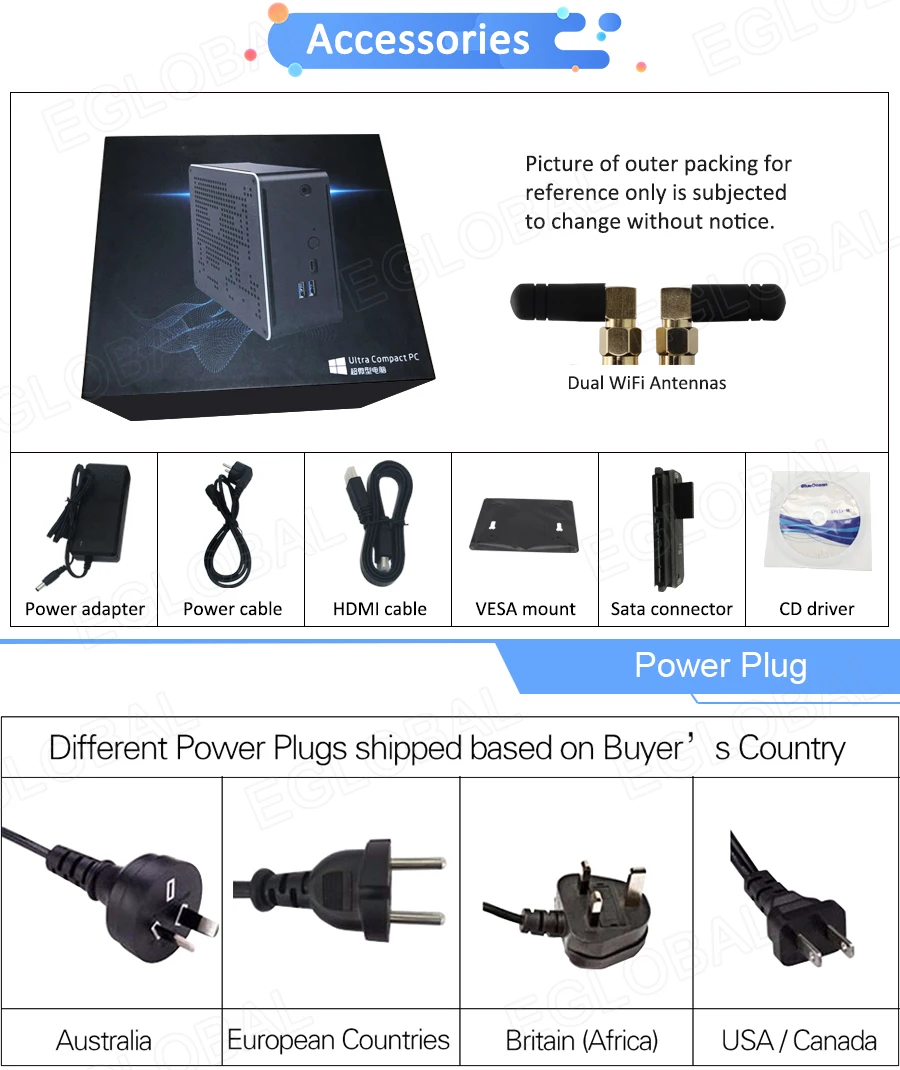

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount

Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
