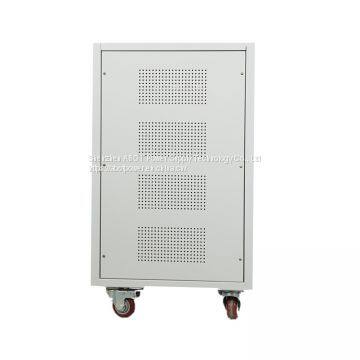

ABOT AC Automatic Three Phase Voltage Stabilizer 220 To 380

Name: ABOT AC Automatic Three Phase Voltage Stabilizer 220 To 380
Brand: ABOT
Price: USD $2000 - 5000 / Set

FOB Price

USD $2000 - $5000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T Credit Card Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ABOT	Place of Origin:	China	Model Number:	ZBW-80KVA
Usage:	DBW	Phase:	Three Phase	Current Type:	AC

Product Description

Brief Introduction:

ZBW series non-contact compensated voltage regulator use high power thyristor (silicon controlled rectifier) instead of mechanical and carbon brush to control and adjust voltage, which can realize 2000KVA high capacity. Max compensation range is ±50%, efficiency is up to 99%. This type of voltage regulator is the newest regulator which has full protection functions, high reliability and adaptability, continuous working time over one hundred thousand hours without any failure.

Technical Parameters

AC input	Input Voltage Range	3-phase 304V-456V
AC input	Frequency	47hz-63Hz
AC output	Rated voltage	3-phase 4-wrie 380V/220V
	Regulation precision	±1-5%(optional)
	Waveform distortion	Without additional waveform distortion(static)
	Efficiency	≥98%
	Response time	20-100ms
	Power factor	0.8
	Output Delay	Stabilize voltage first, then output
Protections	Overvoltage or low voltage	Voltage at output phase over 10%, cutting off output or continuous steering bypass
	Overload	Electronic detection,cutting off output within 3 minute of overload
	Missing phase	Automatic cut-off
	Bypass	Continuous automatic bypass in case of failure
Indication	Voltage	LCD display for A, B, V, ∑ABC 3 phases with virtual value
	Current	LCD display for A, B, V, ∑ABC 3 phases with virtual value
	Working Condition	stabilized voltage/electric supply
	Abnormal	over voltage, low voltage, overload, fuse wire broken
LCD Interface		intelligent operation interface, easy to set and research various parameters
Working Modes		with two working modes, stabilize voltage and electric supply mode
Overload capacity		5 times of rated current for 1 second

Product Features

Fast response	12 BMP high speed AD collection, collect 128 points for each cycle, MCU handling digital processing and calculation, quick compensation with digital module
Various adjustment modes available	simultaneous adjustment; separate adjustment; automatic adjustment
No waveform distortion	non-contact design, same frequency, phase lock, sine wave added compensated
Resistance to harmonic interference	effective voltage detection
Wide load range	adapted to resistive load, capacitive load, inductive load
Low operating noise	≤45Db
Communication interface	RS485

Product Dimensions

Model	Capacity (KVA)	Input Voltage (V)	Output Voltage(V)	Rated Output Current(A)	Size (mm) LWH	Weight (kg)
ZBW-S10	10	380V±20% (three phase)	3Φ4W+G380V 3Φ4W+G220V 3Φ4W+G200V 3Φ4W+G460V ±7%; Optional	15	350×600×750	140
ZBW-S20	20			30		160
ZBW-S30	30			46		180
ZBW-S50	50			76	390×650×870	195
ZBW-S80	80			120	460×650×1200	316
ZBW-S100	100			152		330
ZBW-S120	120			180		380
ZBW-S150	150			228	700×700×1600	450
ZBW-S180	180			273		490
ZBW-S200	200			300		530
ZBW-S250	250			342	1100×800×2100	630
ZBW-S320	320			486		720
ZBW-S400	400			608		810
ZBW-S500	500			760		910
ZBW-S600	600			912		1050
ZBW-S800	800			1216	1800×1000×2100	1300
ZBW-S1000	1000			1520		1650
ZBW-S1200	1200			1824		1900
ZBW-S1400	1400			2127	2400×1000×2000	2100
ZBW-S1600	1600			2431	2400×1000×2000	2300
ZBW-D3	3	220V±20% (single phase)	220V±7%; Optional	14	300×600×600	20
ZBW-D5	5			23		28
ZBW-D10	10			45		50
ZBW-D20	20			91		80
ZBW-D30	30			136		100
ZBW-D50	50			227	660×660×1400	140

Q1, Are you a manufacturer or a trading company?

Re: We are an original manufacturer working from design, production to sell, specializing in various voltage regulator stabilizer and transformer for more than 11 years.

Q 2, what's the payment terms?

Re: We accept T/T, PayPal, Western Union, Alipay.

Q 3, What is your standard of packaging?

Re: For the small capacity products, we will use carton, for big capacity products, we shall use strong wooden case for good protection.

Q 4, Can you accept OEM /ODM?

Re: Yes, we welcome OEM/ODM orders. We offer customer with customized products, as we have strong R&D team with 5 experienced engineers to meet kinds of custom requirements.

Q 5, how's the delivery time ?

Re: usually it will take about two weeks for production, also depending on the order quantity.

Q 6, How do you control quality?
Re: We have QC to inspect the goods during materials coming, production, and packaging. 100% full inspection is guaranteed before delivery.

Q 7, What's your shipping method?

Re: We are in Shenzhen, near to Hong Kong. All shipments are convenient here. International express (TNT, UPS, DHL and FedEx), by air and by sea. We always compare at least 3 shipping costs before decision.
