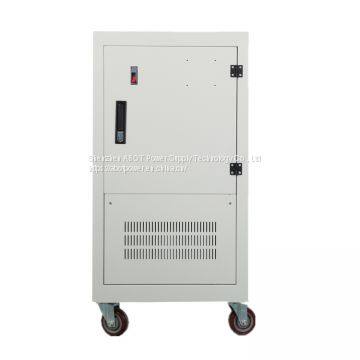

ABOT AC Regulator 3 Phase Automatic Voltage Stabilizer 2500kva

Name: ABOT AC Regulator 3 Phase Automatic Voltage Stabilizer 2500kva
Brand: ABOT
Availability: InStock

FOB Price

US$ 3500 - 4800 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ABOT	Place of Origin	China
Model Number	SBW-200KVA	Usage	Other, SBW
Phase	Three Phase	Current Type	AC

Product Description

Product Introduction

SBW series intelligent digital AC voltage regulator stabilizer is designed for high power/capacity requirement with servo motor(alternator ). When the supply voltage of the distribution network fluctuates or the load changes, the voltage regulator will stabilize the output voltage automatically. It has high capacity, high efficiency, wide regulation range, fast response, no additional waveform occurred and other valuable features. The size is two-thirds than traditional machine, to help customer save space. Humanized design with LED digital indication, easy to operate.

Technical Parameters

Input	Voltage	304V-456V (three phase)
Input	Frequency	50Hz/60Hz
Output	Voltage	380V±2%
	Accuracy	±(1~5)% optional (±2% general setting)
	Response Time	<1s
	Waveform Distortion	No additional waveforms generated (static)
	Efficiency	≥98%
Protection	Over Voltage	delay 3~5 seconds cut off output, when output voltage over 10%
	Low Voltage	delay 3~5 seconds cut off output, when output voltage lower than 15%
	Phase Failure	cut off output automatically
	Over Load	electronic detection, cut off output or uninterrupted transfer to city electricity
	Over Current	delay 3~5 seconds cut off output, when over rated current
	Short Circuit	cut off output
	Bypass	Manually transfer to DC power supply in case of voltage regulator failure or repair
Noise	<55dB
Relative Humidity	0%~90% Non-condensing
Withstand Voltage	2000VAC
Insulation Resistance	≥2MΩ
EM filtering device	Optional
Working method	Can be long-term continuous unattended work
Cooling System	Fan

Product Dimensions

	Amy Xiang (sales manager)
	Mobile Phone	+86 183 4402 9017
	Email
	Skype	yanqing_xiang520
	WhatsAPP/Wechat	+86 183 4402 9017
	Address	6th Floor, No, 543 Jinbi Road, Biling Community, Pingshan District, Shenzhen, 518111, China

Q1, Are you a manufacturer or a trading company?

Re: We are an original manufacturer working from design, production to sell, specializing in various voltage regulator stabilizer, transformer, UPS and solar inverter for more than 11 years.

Q 2, what's the payment terms?

Re: We accept T/T, PayPal, Western Union, Alipay.

Q 3, What is your standard of packaging?

Re: For the small capacity voltage regulator stabilizer/transformer/UPS/solar inverter, we will use carton, for big capacity products, we shall use strong wooden case for good protection.

Q 4, Can you accept OEM /ODM?

Re: Yes, we welcome OEM/ODM orders for voltage regulator stabilizer/transformer/UPS/solar inverter. We offer customer with customized products, as we have strong R&D team with 5 experienced engineers to meet kinds of custom requirements.

Q 5, how's the delivery time ?

Re: Usually it will take about two weeks for production, also depending on the order quantity. Voltage regulator stabilizer/transformer/UPS/solar inverter.

Q 6, How do you control quality?
Re: We have QC to inspect the goods during materials coming, production, and packaging. 100% full inspection is guaranteed before delivery.

Q 7, What's your shipping method?

Re: We are in Shenzhen, near to Hong Kong. All shipments are convenient here. International express (TNT, UPS, DHL and FedEx), by air and by sea. We always compare at least 3 shipping costs before decision.
