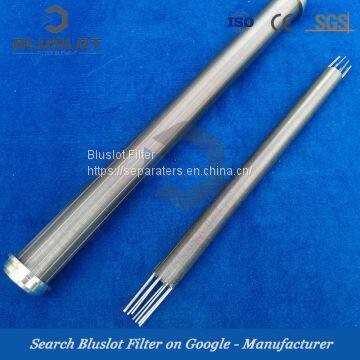

Help Center10 Microns Water Treatment Wedge Wire Screen Pipe Filter Element
Related Products
-
10 Microns Wedge Wire Slot Screen Johnson Type Liquid FilterNegotiableMOQ: 1 Piece -
10 Microns Stainless Steel Wedge Wire Screen Filter ElementNegotiableMOQ: 1 Piece
-
10 Microns Stainless Steel Wedge Wire Filter Candle for Beer FilterNegotiableMOQ: 1 Piece
-
Wedge Wire Filter Distributors - Bluslot FilterUS$ 10 - 100MOQ: 1 Piece
-
High Roundness Wedge Wire Filter - Bluslot FilterUS$ 10 - 100MOQ: 1 Piece
Specification:
| Material | low carbon galvanized wire, mild steel wire, stainless steel wire (SS302, SS304, SS304L, SS316, SS316L, etc.) |
| Wedge wire |
Width: 1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm. Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm. |
| Support rod: |
Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm. Height: 2.70, 3.60, 4.70, 5.60, 6.30. |
| Slot opening | 0.05mm, 0.08mm, 0.10mm, 0.15mm, 0.2mm, 0.3mm, 0.6mm, etc |
| Round wire diameter | 2.50 - 5.0mm |
| Diameter | 20 - 1000mm |
| Length | up to 6 meters |
| Filter type | from outside to inside or inside to outside. |
| End Connection | welded rings (plain beveled ends for butt welding) or threaded male and female coupling (spiral). |
| Packing | in wooden cases, boxes lined with waterproof material. |

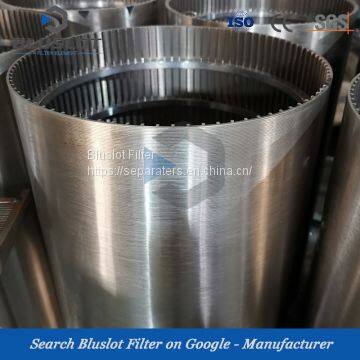

Wedge Wire Screen Filter Element is divided into cylindrical screens and flat screens.
The Wedge Wire Screen Filter cylinder screens mainly composed of V wire and support rod, each cross point connected in welding, solid structure, good mechanical properties.V-shaped cross-section to avoid clogging, while ensuring the smooth flow of water. Continuous slits have a greater flow area while reducing groundwater penetration speed, avoiding sand under large pressure into the tube, better filtration properties of sand, the gap may be varied depending on the geological, mainly for and deep good pump, submersible pump supporting the use.
Wedge Wire Screen Filter Flat screens have good filtration and dehydration in the solid-liquid separation.we can produce for you a different width. length, slit width, and wedge wire size according to your requirements and the amount of filtration filter material. Sieve is mainly used for sewage treatment, water purification laundry, poultry, fish, fruit, and vegetable wastewater treatment industry.
