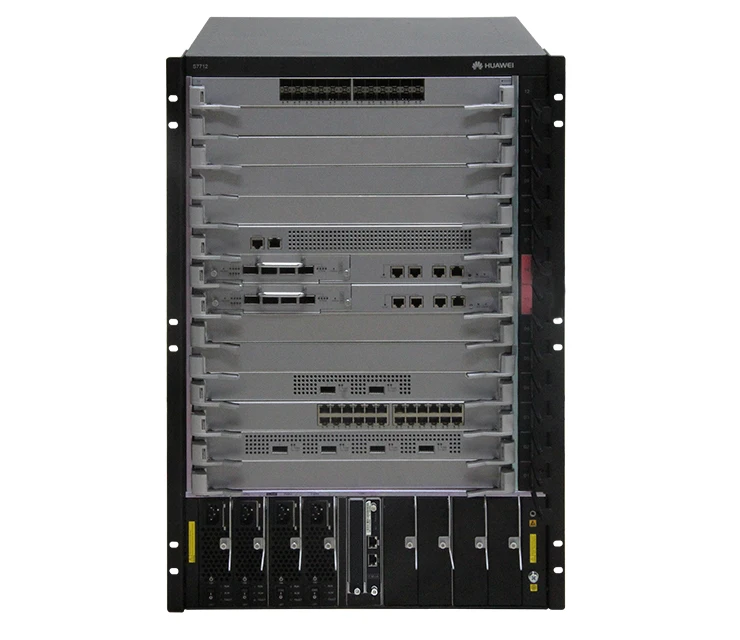

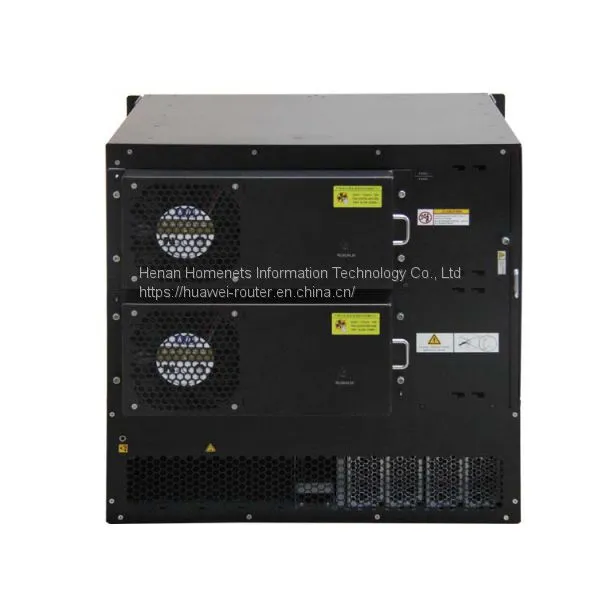

Huawei S7700 Series Network Switches Avaya

Switching Capacity

3.84 Tbit/s

Forwarding Performance

2,880 Mpps

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

Virtualization

CSS horizontal virtualization

SVF 2.0 vertical virtualization

Buffer Capacity

200 ms per Port

Pack Weight
 (kg)

56.1

Pack Volume
 (m^3)

0.322

Pack Dimension
 (D*W*H mm)

810*650*610

Net Dimension
 (D*W*H mm)

489*442*664

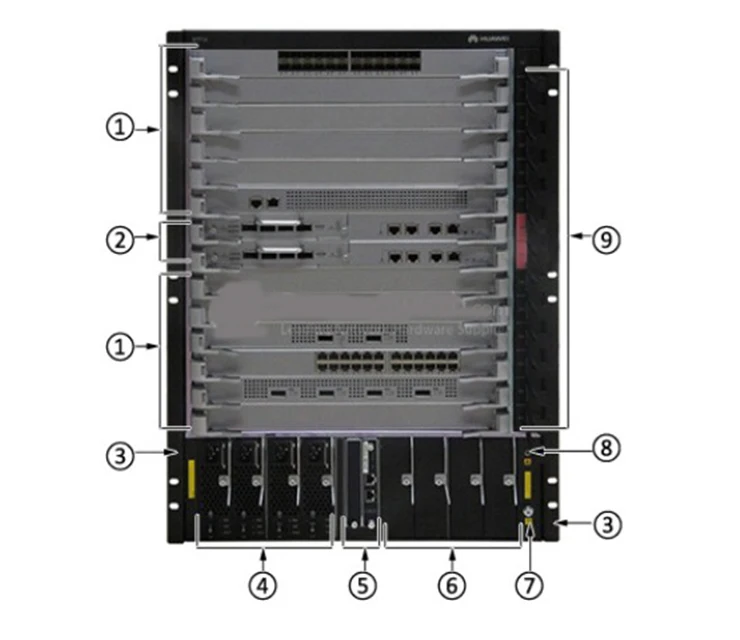

2

Two MPUs

3

A pair of mounting brackets

NOTE:

The mounting brackets are used to secure the chassis in the cabinet.

4

Four power modules

5

Two EH1D200CMU00-Centralized Monitoring Unit

6

Four PoE power modules

In versions earlier than V200R006C00:

800 W AC Power Module

2200 W AC Power Module

In V200R006C00 and later versions:

2200 W DC Power Module

800 W AC Power Module

2200 W AC Power Module

7

Ground screw

NOTE:

The ground screw is used to ground the chassis.

8

Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

9

Cable management frames

NOTE:

Cable management frames are used to route cables.

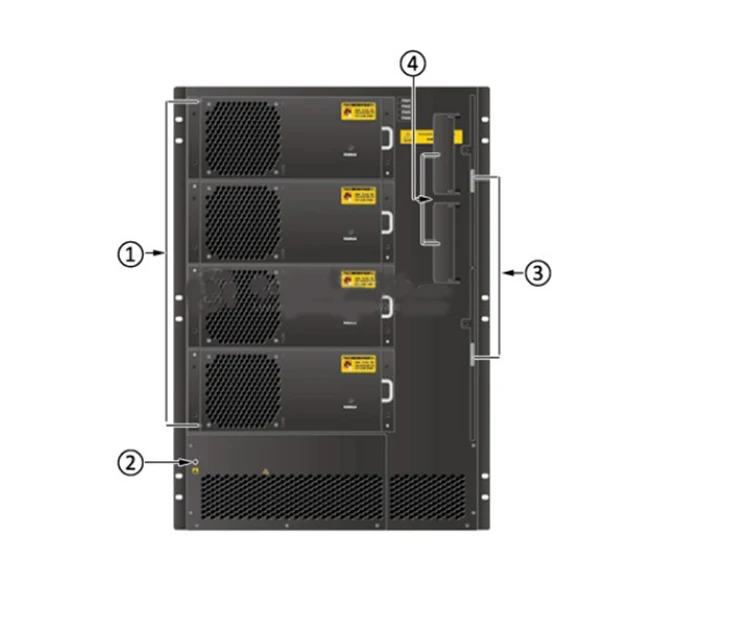

2

Rear ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

3

Air filter

NOTE:

The air filter prevents dust from entering the chassis.

4

A pair of removable handles

NOTE:

You can install these handles on two sides of the chassis to lift the chassis.

Switching Capacity

3.84 Tbit/s

1.92 Tbit/s

3.84 Tbit/s

Forwarding Performance

2,880 Mpps

1,440 Mpps

2,880 Mpps

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

Supervisors, Power modules, CMUs, Fans trays

Supervisors, Power modules, CMUs, Fans trays

Buffer Capacity

200 ms per Port

200 ms per Port

200 ms per Po rt

Pack Weight
 (kg)

45.8

21.8

56.1

Pack Volume
 (m^3)

0.247

0.124

0.322

Pack Dimension
 (D*W*H mm)

638*612*632

652*595*322

810*650*610

Net Dimension
 (D*W*H mm)

489*442*442

489*442*175

489*442*664
