New Original Huawei S1700 Series 8 Port Network Management Switches

Henan Homenets Information Technology Co., Ltd
New Original Huawei S1700 Series 8 Port Network Management Switches thumbnail-1
New Original Huawei S1700 Series 8 Port Network Management Switches thumbnail-2
New Original Huawei S1700 Series 8 Port Network Management Switches thumbnail-3
New Original Huawei S1700 Series 8 Port Network Management Switches thumbnail-4
New Original Huawei S1700 Series 8 Port Network Management Switches thumbnail-5
New Original Huawei S1700 Series 8 Port Network Management Switches photo-1
New Original Huawei S1700 Series 8 Port Network Management Switches photo-2
New Original Huawei S1700 Series 8 Port Network Management Switches photo-3
New Original Huawei S1700 Series 8 Port Network Management Switches photo-4
New Original Huawei S1700 Series 8 Port Network Management Switches photo-5
US$ 90 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Huawei
Place of Origin:
China
Model Number:
S1700
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huawei
Place of Origin China
Model Number S1700
S1700 SERIES HUAWEI NETWORK SWITCH PRODUCT CHARACTERISTICS:

Huawei S1700 series switches are ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and others. They are easy to install and maintain and provide rich services, helping customers build secure, reliable, and high-performance networks.
Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.
1.Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management.
2.Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).
3.Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.

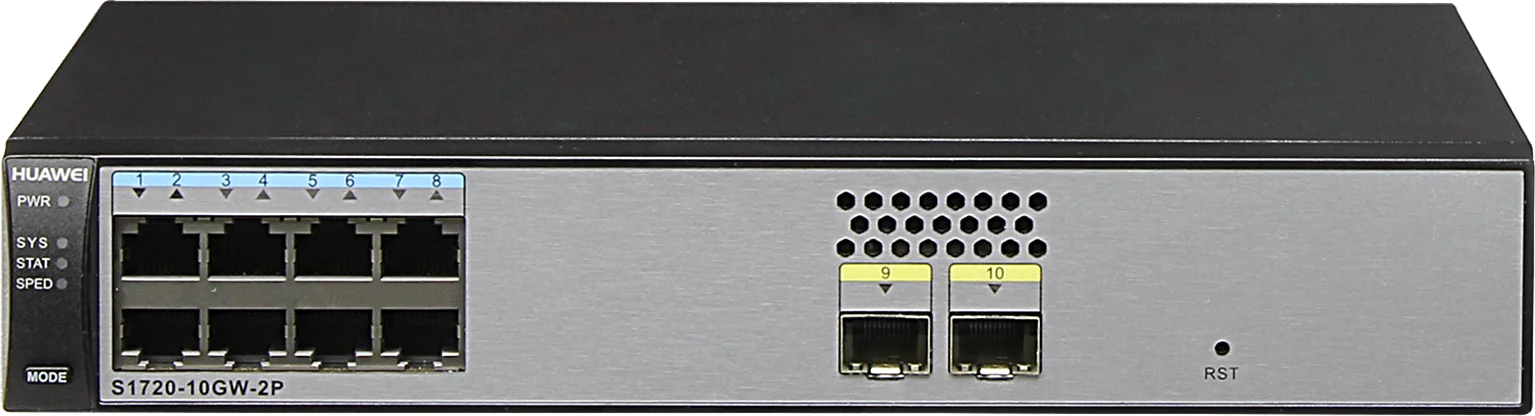

Type:S1720-10GW-2P
Downlink: 8 Ethernet 10/100/1000 ports
Uplink: 2 Gig SFP ports
AC power supply
Forwarding performance: 15Mpps
Switching Capacity: 68Gbps

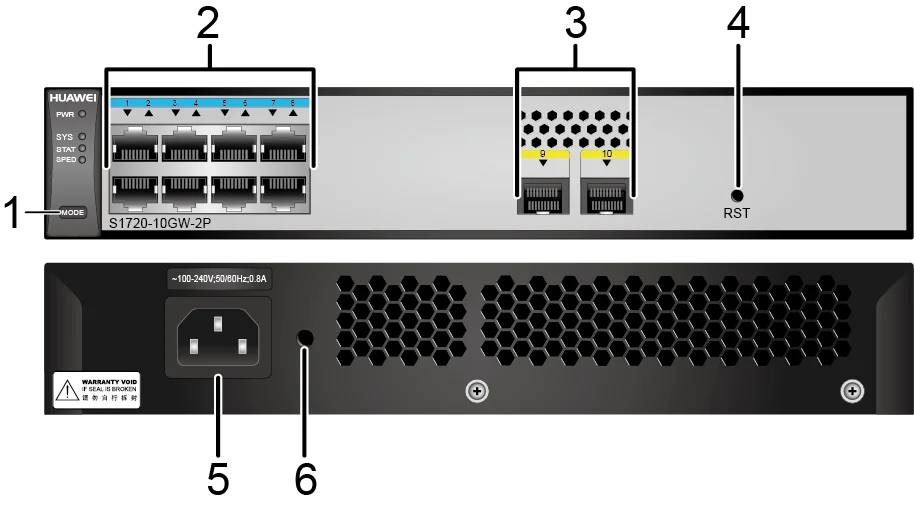

Details Images
1.Mode switching button
2.Eight 10/100/1000BASE-T ports
3.Two 1000BASE-X Ethernet ports
Applicable modules: * GE optical module (the maximum transmission distance cannot exceed 40 km)
* GE copper transceiver module
* GPON optical module (applicable in V200R012C00 and later versions)
4.Reset button
5.AC power socket
6.Jack reserved for AC terminal locking latch

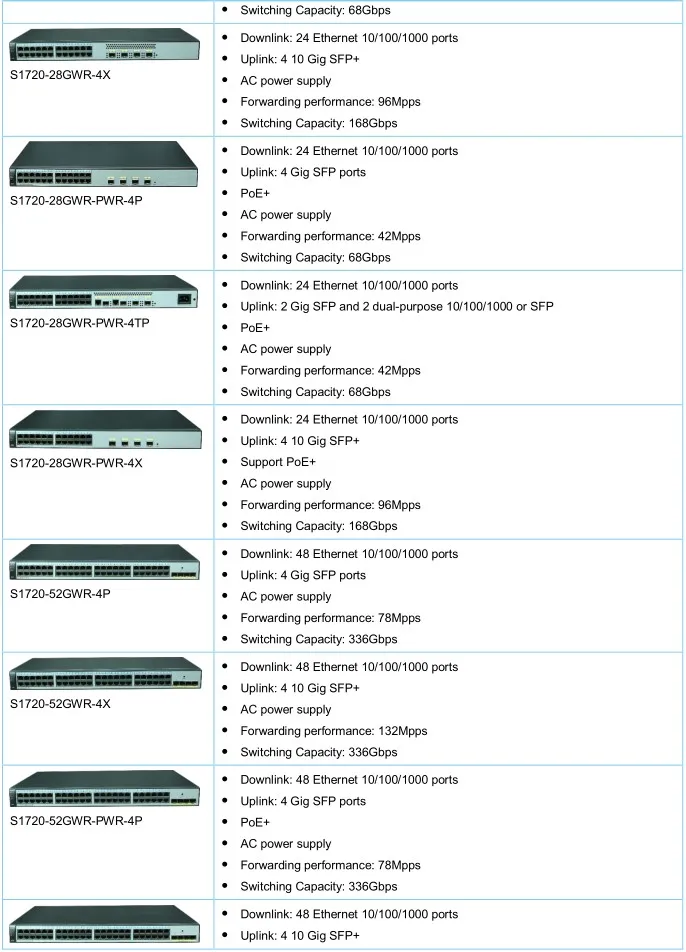

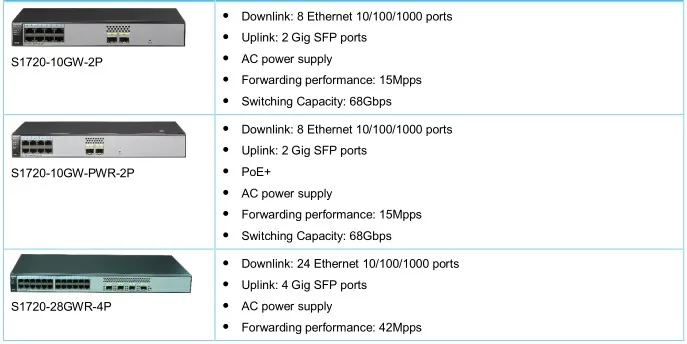

Product Paramenters
Product Model
S1720-10GW-2P-E
S1720-10GW-PWR-2P-E
S1720-28GWR-4P-E
S1720-28GWR-PWR-4P-E
S1720-28GWR-PWR-4TP-E
S1720-28GWR-4X-E
S1720-28GWR-PWR-4X-E
S1720-52GWR-4P-E
S1720-52GWR-PWR-4P-E
S1720-52GWR-4X-E
S1720-52GWR-PWR-4X-E
S1720X-16XWR-E
S1720X-32XWR-E
Device
Management
SNMP
Web system network management (HTTPS)
DHCP client
User password protection
One-key restoration
CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series)
Switching Capacity
68 Gbit/s
S1720-28GWR-P/TP series: 68 Gbit/s
S1720-28GWR-X series: 168 Gbit/s
S1720-52GWR-P series: 336 Gbit/s
S1720-52GWR-X: 336 Gbit/s
680 Gbit/s
Forwarding Performance
15 Mpps
S1720-28GWR-P/TP series: 42 Mpps
S1720-28GWR-X series: 96 Mpps
S1720-52GWR-P series: 78 Mpps
S1720-52GWR-X series: 132 Mpps
S1720X-16XWR-E: 240 Mpps
S1720X-32XWR-E: 252 Mpps
Fixed Ports
Downlink: 8 x 10/100/1,000 Base-T electrical ports
Uplink: 2 x 1,000 Base-X optical ports
S1720-28GWR-P series
Downlink: 24 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 1,000 Base-X optical ports
S1720-28GWR-TP series
Downlink: 24 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports
S1720-28GWR-X series
Downlink: 24 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 10G Base-X optical ports
S1720-52GWR-P series
Downlink: 48 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 1,000 Base-X optical ports
S1720-52GWR-X series
Downlink: 48 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 10G Base-X optical ports
S1720X-32XWR-E: 32 x 10G Base-X optical ports
Note: These ports can be used for both upstream and downstream transmission.
VLAN Features
4K VLANs
Access port
Trunk port
Hybrid port
Management VLAN
Voice VLAN
IP Routing
IPv4 and IPv6 static routing
RIP, RIPng, and OSPF (S1720-E series)
Device
Maintenance
Remote Network Monitoring (RMON)
System log
Ping and traceroute
Virtual Cable Test (VCT)
Link Layer Discovery Protocol (LLDP)
