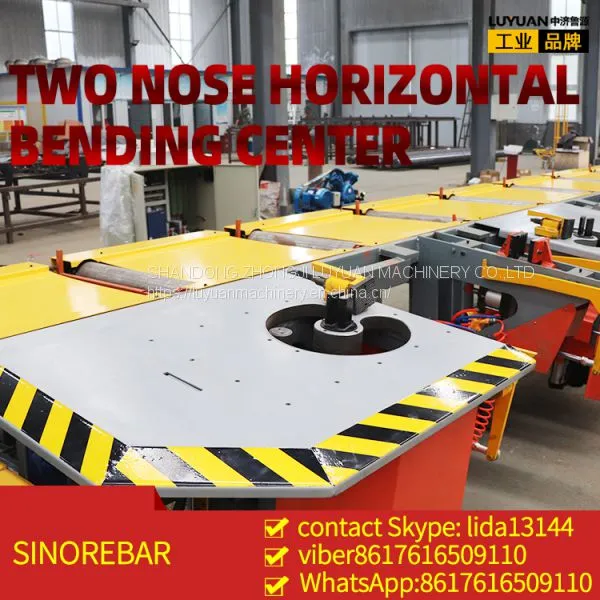

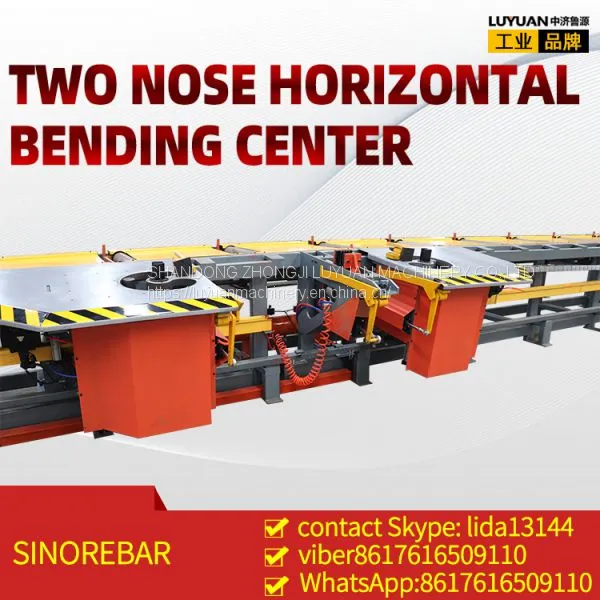

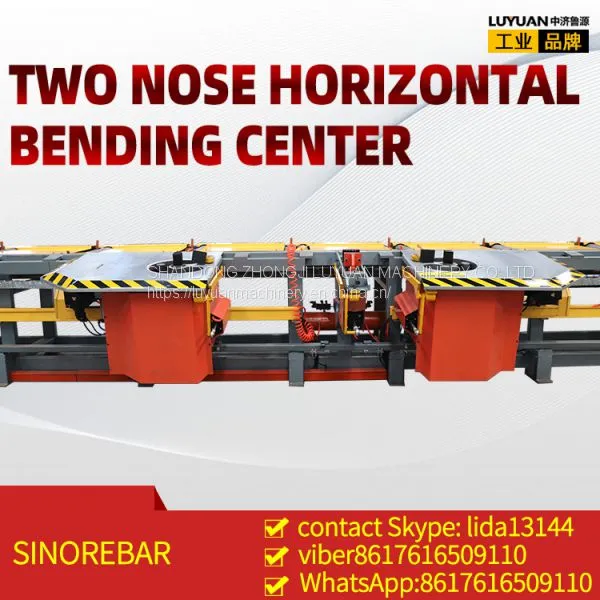

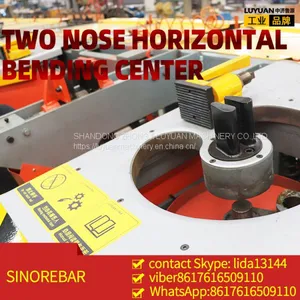

FULLY AUTOMATIC HORRIZONTAL REBAR BENDING MACHINE FOR SALE
- 100 Set / Sets per Month
- QINGDAO,TIANJIN,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
Product Details
| Brand Name | LUYUAN | Place of Origin | China | |
| Model Number | LYWQ-32H |
Product Description
1. The steel bar is supported by a crank connecting rod mechanism. While the steel bar is held up, the steel bar is sent to the top of the bending head, which is convenient for the operator to discharge the material and reduce the labor intensity of the worker. , The transmission is stable and reliable.
2. The walking mechanism of the bending machine head adopts the flexible engagement of the rack and pinion, which solves the problem of incomplete meshing of the rack and the gear due to manufacturing errors. The rack is thickened, rigid, and the walking positioning is more accurate and stable.
3. The curved main shaft adopts spline design, and the main shaft itself is made of high-quality alloy steel through a special process, which has the characteristics of high strength, wear resistance and long service life.
4. Both the left and right bending heads and grippers are equipped with automatic steel bar discharge hooks. When processing longer steel bars, automatic steel bar discharge can still be achieved.
Machine Dimension(LXWXH) | 12000X2250X1025（mm） | |||||||||||||||
Bending Speed | 8-10r.p.m | |||||||||||||||
Movement Speed | 0.4-1.2m/s | |||||||||||||||
Workbench Lean | 0 º -15 º（Adjustable） | |||||||||||||||
Voltage | 380V 50Hz | |||||||||||||||
Total Electrical Power | 24kW | |||||||||||||||
Actual Electricity Consumption | 12kW/h | |||||||||||||||
Total Weight | 6500kg | |||||||||||||||
Air Supply Pressure | 0.6Mpa | |||||||||||||||
Max Bending Angle | Up Bending Angle | Min Bending Side Size | Φ12mm 1100mm | |||||||||||||
Down Bending Angle | ||||||||||||||||
Min Length of Bending Side | 80mm | Max Bending Side Size | 11m | |||||||||||||
Min Length of Bending Rebar | 1250mm | |||||||||||||||
Double Bending Rebar (mm) | Φ10-32mm | Single Bending Rebar (mm) | Ф36-50mm | |||||||||||||
Bending Rebar Diameter(mm)（HRB335） | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | 50 | |||
Bending Bars Number | 8 | 7 | 6 | 6 | 5 | 4 | 3 | 3 | 2 | 2 | 1 | 1 | 1 | |||
