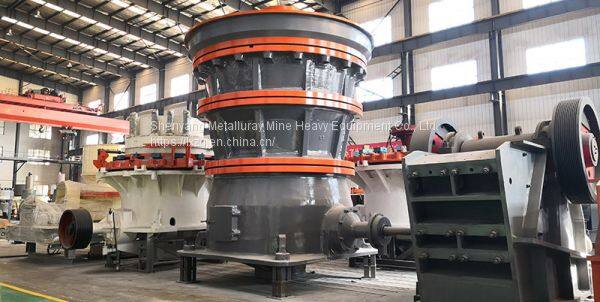

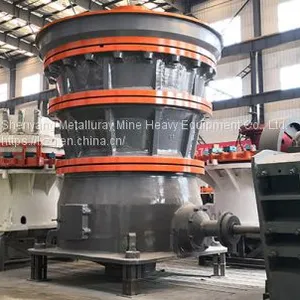

PXF cycle crushing equipment
Selection of crusher in the field of sand and gravel crushing, The design of the production line has many requirements. Depending on the crumblability of the material, The compressive strength of the material in terms of physical properties. Rocklike primiparas often used in the crushing of sand and gravel,Granite, basalt, diabase, etc... The selection of equipment greatly affects the discharge quality and crushing cost of sandstone aggregate.
PXF cycle crushing equipment, The feeding size is 1372-1829mm, The discharging dimension is 152-203mm, The production capacity is 1740-2620t /h, Motor power 400-500KW.
The output of over 1000 tons per hour can greatly meet the high output demand of mine owners.
The selection and collocation of crushing line equipment is particularly important for long-term stable production line. The rotary crusher is a good choice for space use, feeding size, large output, stable operation and other requirements.
Technical parameters of PXF Fuller rotary crusher | |||||||
type specification |
Size the opening |
Size of outlet |
Maximum size for mine |
output |
Crushing cone bottom diameter |
Main motor power |
Lubricating oil station |
PXF5474 |
1372(54，) |
152 |
1150 |
1740 |
1880(74") |
400 |
250 |
PXF5484 |
1372(54') |
203 |
1150 |
2500 |
2134(84") |
500 |
250 |
PXF6089 |
1524(60") |
178 |
1300 |
3000 |
2260(89") |
500 |
400 |
PXF60110 |
1524(60") |
178 |
1300 |
4000 |
2794(110") |
355x2 |
400 |
PXF7293 |
1829(72') |
178 |
1550 |
2620 |
2362(93") |
500 |
400 |
