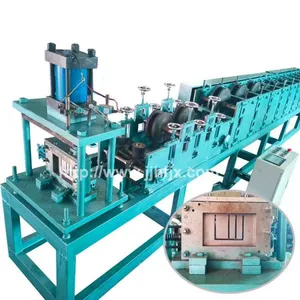

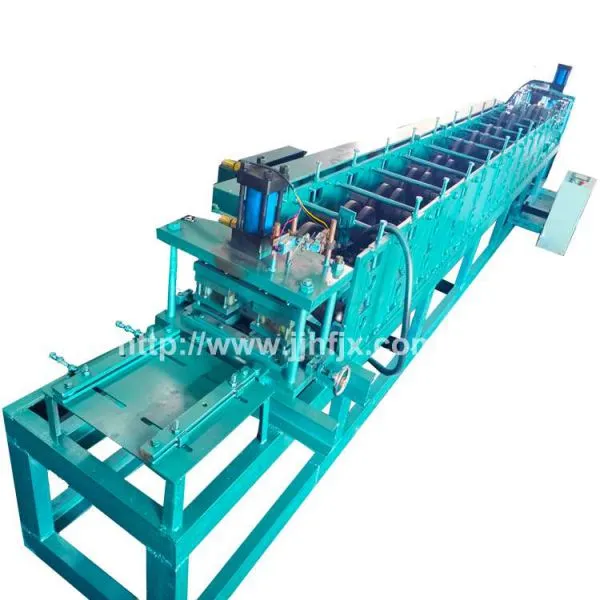

Adjustable U Channel Roll Forming Machine
Main Devices
Main Roll Forming Machine x 1 unit
Cutter Device x 1 unit
PLC Control System x 1 unit
Hydraulic Pump x 1 unit
Technical Parameter
Feeding Material: Q235 Steel
Feeding Thickness: 1-2mm
Effective Width: 50mm/75mm/100mm
Flange Height: 25-80mm
Motor Power: 7.5KW
Working Speed: 8-10m/min

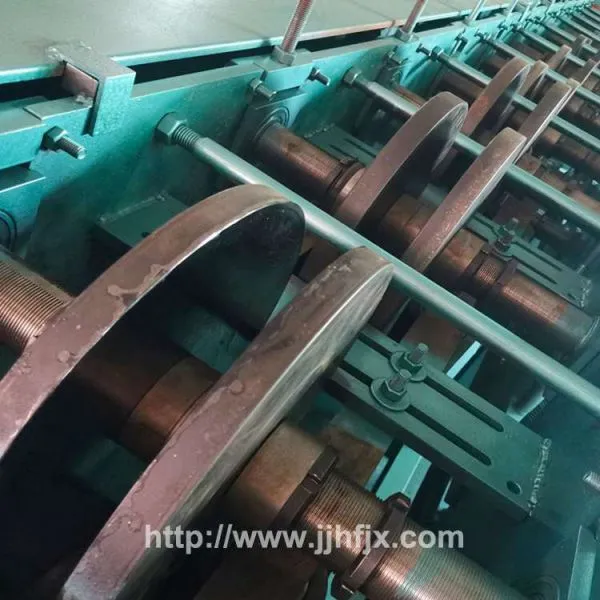

Rollers Material: GCr15 Steel with heat treatment, black treatment
Main Shafts Material: 45# Steel with tempering treatment
Cutter Material: Cr12Mvo with heat treatment
Transmission: Driven by Chains
Control System: PLC Control System with touch screen
After-Sale Service
1.Warranty Period: 12 months. We offer replacement parts to clients free of charge during the period.
2.We offer technical support for entire life.
3.We can send our technicians to install and train the workers in the clients’ factories (extra fee required).
Packing Method
Main machine is naked and covered by plastic film
Term of Trade
Minimum Order Quantity (MOQ): 1 set
Delivery Time: about 30-45 working days
Port of Loading: Port of Xiamen
Payment Term: T/T
Customization
We can customize roll forming machines for making special shape pipe/tube/profile/frame/tile sheet. Do fee free to contact us for the best quote!
