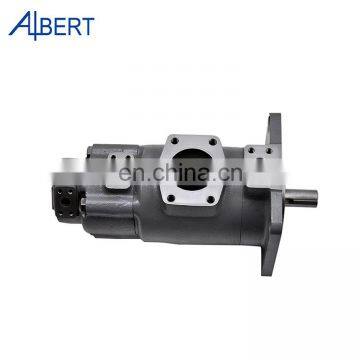

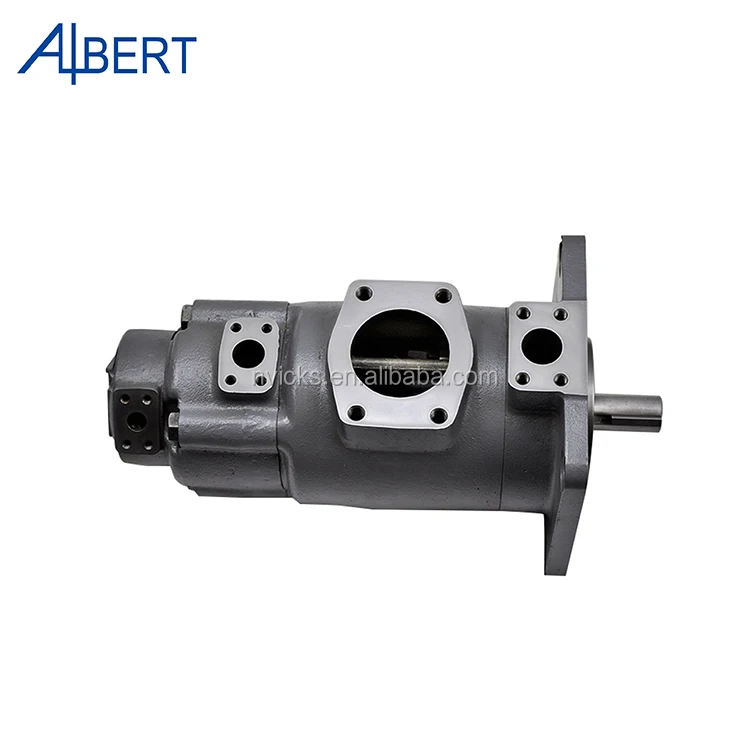

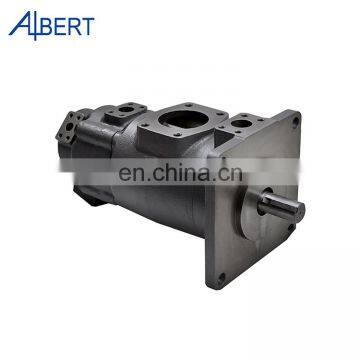

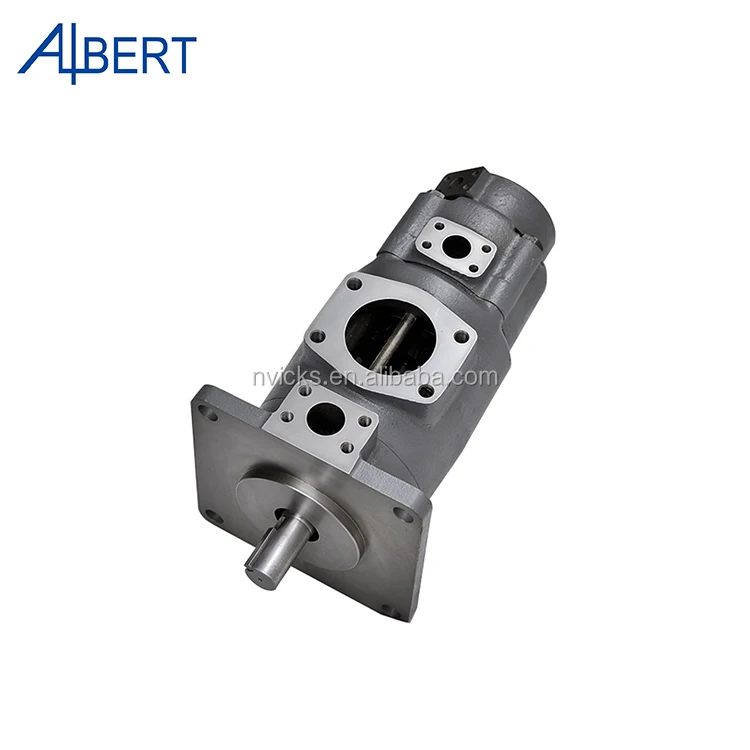

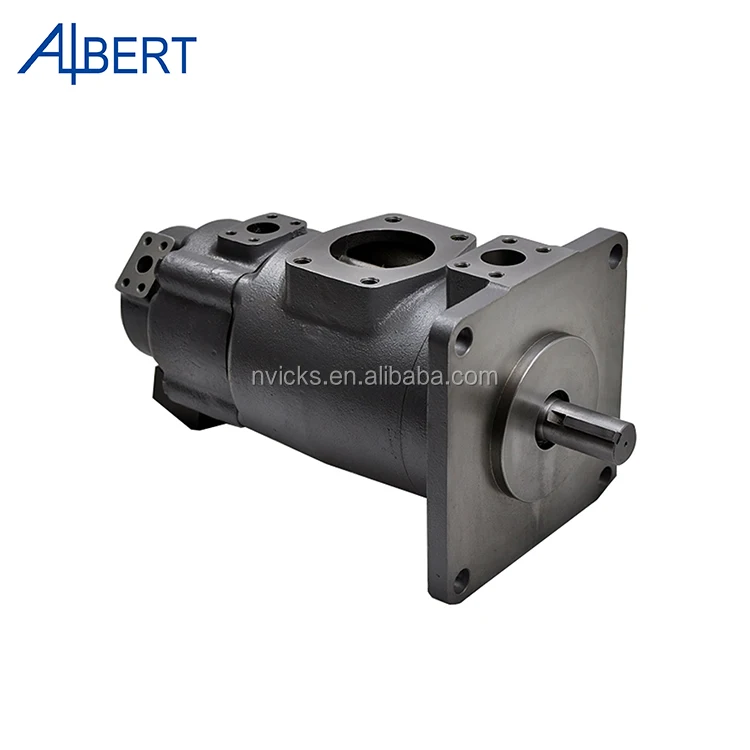

Factory Wholesale 1800Rpm Cast Iron Hydraulic Vane Pump Spare Parts
US$ 530 - 530
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ALBERT
Place of Origin:
Zhejiang, China
Model Number:
SQP321
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2020 New Design Mobile Machinery Single T6Gcc Hydraulicvane PumpUS$ 517 - 517MOQ: 1 Piece -
Hot Sale Modern Design Hydraulic Vane Single Pump PriceUS$ 286 - 286MOQ: 1 Piece
-
Factory Unique Design Steering Hydraulic Variable Vane PumpUS$ 286 - 286MOQ: 1 Piece
-
Wholesale High Quality Hydraulic Single Vane Pump For SaleUS$ 280 - 280MOQ: 1 Piece
-
Wholesale Factory Good Quality High Performance Vane Lobe PumpUS$ 303 - 303MOQ: 1 Piece
Brand Name
ALBERT
Place of Origin
Zhejiang, China
Model Number
SQP321
Product Description

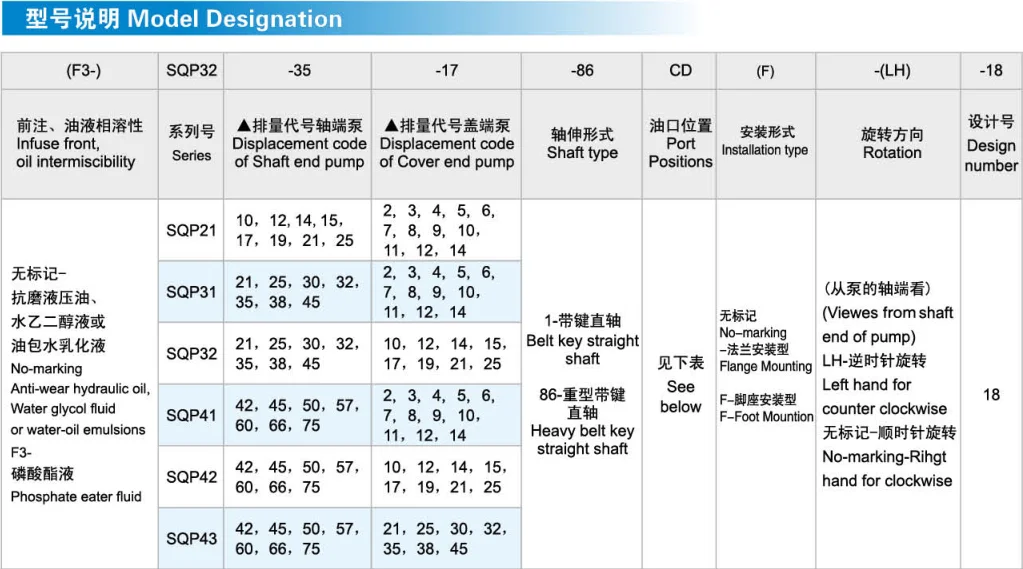

(F3-) | SQP2 | -21 | -86 | C | (F) | (LH) | Desining |
NO. | |||||||
Front mark | Model | Displacement | Shaft extension | Outlet position | Mounting type | Rotation Direction | 18 |
No mark: | SQP1 | 2,3,4,5,6,7,8,9, | (viewed from cover end of the pump) | ||||
use anti-wear | 10,11,12,14 | I-straight | (viewed from the cover | No mark-flange | LH- | ||
hydraulic oil or phospholipide | shaft with key | end of the pump) | mounting | counterclockwise | |||
rotation | |||||||
F11-use water-glucol | A: the opposite of inlet | No marks: | |||||
86-heavy-duty | B:counterclockwise 90 degree from inlet | F-foot | clockwise rotation | ||||
F3: | SQP2 | 10,12,14,15, | straight shaft | C:the same side of inlet | mounting | ||
use water-in-oil emulsion | 17, 19,21 | with key | D:clockwise 90 degree of | ||||
SQP3 | 21,25,30,32, | pump inlet port | |||||
35,38,45 | |||||||
SQP4 | 42,45,50,57, | ||||||
60,66,75 |
Company Profile
Ningbo Vicks Hydraulic Co., Ltd
Ningbo Vicks Hydraulic Co., Ltd. Was founded in 2007, is a national high-tech enterprise with several invention patents.There are 6 world leading production and testing lines for vane pump . With an annual output of more than 80,000 pcs of hydraulic pumps and 10,000 sets of energy-saving servo system.
Our company is the presiding unit of vane pump industry standard revision.Our company has been working with famous hydraulic enterprises abroad for long time, have T6, T7, V, VQ, V10, V20, SQP, PV2R series vane pumps and 35Mpa ultra high pressure ABT servo vane pump, M3B, M4C, M4D, M4E, 25M, 35M, 45M, 50M vane motors, VG internal gear pumps. Our products have passed Chinese CCS, Norway DNV, American ABS, French BV and British LS etc classification society certification.
We're the general channel business of Taiwan DELTA, and we are the strategicpartner of Italy Phase servo motor, Yunsheng Servo motor, Haitian plastic injection molding machines and Sumitomo pumps...
Production Equipment
Exhibition
Cooperating Client
Certifications
Logistics and Packaging
FAQ
Q1. Can I get 1pcs for a try?
A: Yes, of course.
Q2: How can I place an order?
A: You can email us or send us an inquiry.
Q3: Have you checked the products before shipping?
A: Absolutely, yes. We tested it after assembling.
Q4: How many days for delivery ?
A: 3-7days in stock, 15-25days for large cargo.
Q5: How many months for warranty?
A: Ordinary speaking, we can gurantee 12 months with your correct operation.
Q6: Can I use our Logo?
A: No problem.
