Genew Nubiz Carrier-class IPPBX:
The NC5200C is an all-in-one solution designed especially for small and medium- size enterprises to meet their increasingly diverse demands for communication services. Using advanced software & hardware technology and carrier-class design, NC5200C provides best-in-class efficiency and high reliability. The system utilizes high-performance CPU and DSP, embedded real-time perating system and efficient algorithm. NC5200C offers various plug-in interface modules to meet the requirements for different services and applications as well as ensuring capacity expansion.
NC5200C supports carrier-class module and network redundancy. In untoward situations resulting in damage to the system and/or network, switchover to the standby system is automatically performed to ensure normal operation.
To facilitate interoperability between the enterprise and public network, the NC5200C is equipped with built-in trunk gateway interface and functionality. NC5200C nodes can be deployed in remote branches and interconnected via the corporate intranet. For temporary or satellite offices, fixed phones can be linked directly by IAD with FXO interfaces. In distributed deployment, the NC5200C nodes enable a unified dialing plan to avoid long-distance call charges.
The NC5200C system, in conjunction with appropriate servers, can provide value-added services such as voice mail, fax, call center, operator console, dispatch system, etc.

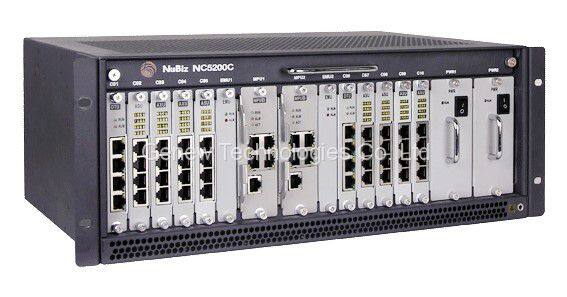

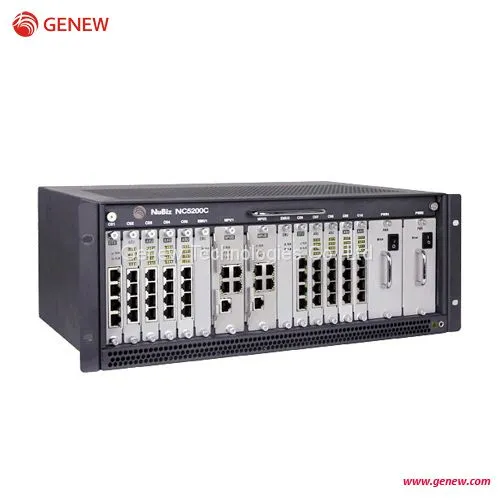

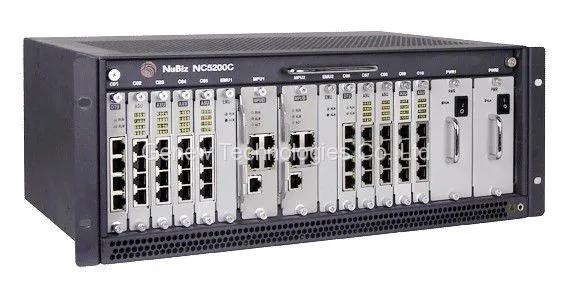

IPPBX NC5200C:
Boards Description：
1.NC21MPUA ：Main Processing Unit with TDM and Ethernet switching, with 4x 10/100Base-T ports;
2.NC21DTU:Digital Trunk Unit, 4x E1/T1;
3.NC21ASU:Supports 16 FXS ports;
4.NC21AXU:Support 8FXS + 8FXO ports;
5.NC21AEM:Supports 4 E&M ports;
6.NC21EMU:Media unit, 32 channels;
7.NC21EMUB:Media unit, 256 channels;
8.NC21PAC:Power module, AC input, 170-260V;
9.NC21PDC:Power module, DC input.
NC5200C Specification:
System design
* 4U 19” Box with carrier-class design
* High-performance CPU/FPGA and DSP chips
* Distributive modularized software architecture with professional operating system
System capacity
* max 176 FXS
* 4 E1 ports
* Support redundant M ain Process Unit
Protocols
* SIP/M GCP/H.323/T.38
* PRI/SS7
* Wi-Fi/GSM /PHS/TD-SCDMA
* SNM P/Radius/Dispatcher/CTC
Service functions
* Basic Services (CS/P S domain)
* Rich supplementary Services & flexible value-added Services
* Call center/dispatching control center
* Embedded SBC function
1 Basic: voice, fax, video
2 Supplementary: CID, CFU, CFB, CFNA, CFNR, CFOL, CT,
CW, own No. query, IVR, 3-paties, conference, number sharing, one number, call pick-up, etc.
3 Value-added: voice mail, card service, pre-pay, call center(CTC/TAPI), conference reservation, call-out immediate conference, operator console, dispatching control center etc.
Mobile technologies
1 Wi-Fi, PHS (RPC/CSC/EP300), GSM , TD-SCDM A
2 Embedded HLR/VLR/SM gateway, roaming, switching, locating
3 SM PP,SM AP
Operation and maintenance
1 Centralized NM S, multipoint management, centralized and
embedded WEB GUI for operating/maintenance.
2 Online self-service and navigation configuration with WEB GUI
3 CDR output, radius interface, call ticket management with WEB GUI
4 Signaling tracing tool
System capacity
1 BHCA > 30K
2 SIP server/M GC registration
3 call under GK/SS/IM S control
4 SIP/H.323/M GCP/SS7/PRI conversion
5 Automatic routing, alternate routing
6 Called/caller number conversion
7 Call restriction(15 ranges), black and white lists, Stopping and Resetting Service, time restriction
8 User grouping, queuing, select successively,
9 1000 caller number pooling
10 SS7 caller number hiding
11 Embedded IVR, sound reproduction
12 Account Card services, pre-pay service
13 CDR uploading to NM S/Radius Server
VoIP pe rformance
1 Silence suppression and Echo cancellation
2 Loss compensation, dynamic jitter buffer
3 Detection/ suppression /generation of DTM F/FSK
4 G.711//G.723.1/G.729/G.726-32/T.30/T.38/FR/EFR/AM R
Physical
1 Dimensions: 486mm(W)*176mm(H)*324.2mm(D)
2 Weight: 15kg
Power
1 AC input: 170V-260V, 50/60Hz
2 DC input: -48V
3 Consumption: max 150W
Environmental
1 Operating temperature: -5℃-55℃( 23℉-131℉)
2 Storage temperature:-10℃-60℃( 14℉-140℉)
3 Operating humidity: 5%-90%( non-condensing)
4 Storage humidity: 0%-95%( non-condensing)
Industry standards
1 Telecom standard: FCC part68
2 EM C standard: FCC Part15 Class A, UL, CE
Packaging:
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
