Genew Nubiz Enterprise IPPBX:
NC5200B is an all-in-one box solution designed especially for small and medium size enterprises to meet their increasingly diverse demands of communication service. Integrated with various kinds of advanced TDM, VoIP and mobile technologies in communication field, and relying on the existing enterprise intranet, NC5200B provides an integrative multi-service communication platform to help enterprises to save IT management cost, establish better corporate image and improve work efficiency. At the same time, NC5200B provides a perfect solution for enterprise-oriented operators.
Using advanced software & hardware technology and carrier-class design, NC5200B performs with high reliability. The system which uses high-performance CPU and DSP, embedded real-time operating system and efficient algorithm, processes outstanding properties. With multiple plug-in modules, NC5200B can support many kinds of interface board, provide different services according to different needs, and expand capacity easily.
NC5200B support carrier-class redundant borad and redundant network, any nods in case of disaster or damage, the system standby switchover in time to ensure the normal operation of the system.

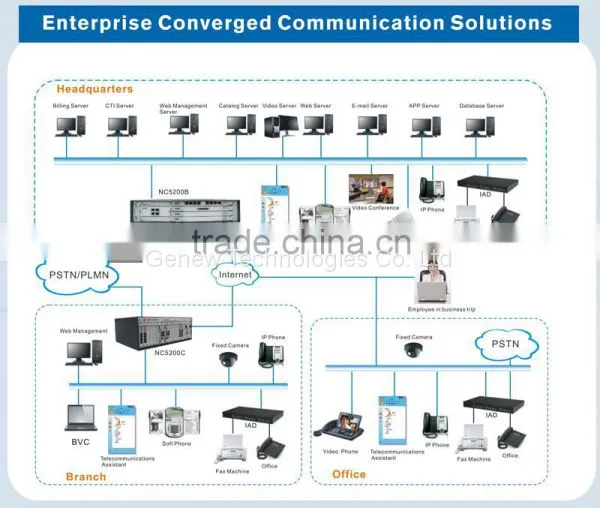

On network side, in order to realize the interoperation between enterprise and public network, NC5200B is equipped with the in-built trunk gateway function. For the branches of enterprise, multi-NC5200B can be separately deployed in different places, and interconnected with each other through intranet; for temporary office, the
office telephone can be linked directly by IAD which with FXO interfaces. With NC5200B, branches in different places unifying the dialing plan, enterprise can save a large amount of long-distant telephone charge.
NC5200B which supports comprehensive basic services, rich supplementary service, along with SM, fax and other digital services, can meet the diverse need of
enterprise and satisfy the customers to the utmost. Meanwhile, the system also goes with matched servers, providing more flexible value-added services including voice mail, fax, call center, operator console, dispatch system, etc.
IPPBX NC5200B:
System design
* 2U 19” Box with carrier-class design
* High-performance CPU,FPGA and DSP chips
* Distributive modularized software architecture with professional operating system
* Support BITS
System capacity
* 5000 subscribers
* 24 E1/16 T1 ports
* 768 DSP resources
* 100 embedded IVR resources
* 128 embedded conference resources
* 32 sets of devices interconnecting
Protocols
* SIP/M GCP/H.323/T.38
* PRI/SS7
* Wi-Fi/GSM /PHS, SM PP/SMAP
* Radius
Service functions
* Basic Services (Support broad/narrow band, wireless user)
* Rich supplementary Services & flexible value-added Services
* M obile Services (SM S, roaming, etc.)
* Call centre/dispatching control centre
* Embedded SBC function
Services
1 Basic: voice, fax, video
2 Supplementary: CID, CFU, CFB, CFNA, CFNR, CFOL, CT, CW, own No. query, IVR, 3-paties, conference, number sharing, one number, call pick-up, etc.
3 Value-added: voice mail, card service, pre-pay, call center(CTC/TAPI), conference reservation, call-out immediate conference, operator console, dispatching control center etc.
Mobile technologies
1 Wi-Fi, PHS (RPC/CSC/EP300), GSM , TD-SCDM A
2 Embedded HLR/VLR/SM gateway, roaming,
switching, locating
3 SM PP,SM AP
Operation and maintenance
1 Centralized NM S, multipoint management, centralized and embedded WEB GUI for operating/maintenance.
2 Online self-service and navigation configuration with WEB GUI
3 CDR output, radius interface, call ticket management with WEB GUI
4 Signaling tracing tool, FE port mirroring.
System capacity
1 BHCA > 70K
2 GK/SIP server registration
3 Trunk call under GK/SS control
4 SIP/H.323/M GCP/SS7/PRI conversion
5 Automatic routing, alternate routing
6 Called/caller number conversion
7 Call restriction(15 ranges), black and white lists, Stopping and Resetting Service, time restriction
8 User grouping, queuing, select successively, call pick-up
9 1000 caller number pooling
10 SS7 caller number hiding
11 Embedded IVR, sound reproduction
12 Card services, pre-pay service
13 Call ticket uploading to Radius
14 CDR uploading to NM S
VoIP pe rformance
1 Silence suppression and Echo cancellation
2 Loss compensation, dynamic jitter buffer
3 Detection/ suppression /generation of DTM F/FSK
4 G.711//G.723.1/G.729/G.726-32/T.30/T.38/FR/EFR/AM R
Physical
1 Dimensions: 428mm(W)*86.3mm(H)*383mm(D)
2 Weight: 20kg
3 8 slots
Power
1 AC input: 90V-260V, 50/60Hz
2 DC input: -48V
3 Consumption: max 150W
Environmental
1 Operating temperature: -5℃-55℃( 23℉-131℉)
2 Storage temperature:-10℃-60℃( 14℉-140℉)
3 Operating humidity: 5%-90%( non-condensing)
4 Storage humidity: 0%-95%( non-condensing)
Industry standards
1 Telecom standard: FCC part68
2 EM C standard: FCC Part15 Class A, UL, CE
Part Name |
Function Description |
NC21M PUA |
M ain Process Unit with TDM and Ethernet switching center, 4 10/100Base-T ports |
NC21DTUA |
Digital Trunk Unit with 4 E1/T1 |
NC21ASUA |
Support 16 FXS ports |
NC21EMUA |
M edia unit with 32 channels |
NC21EMUB |
M edia unit with 256 channels |
NC21PACA |
Power module of AC input, 170-260V |
NC21PDCA |
Power module of DC input, -48V |
