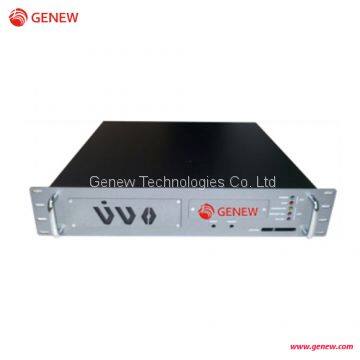

Genew Unified Communciations IPPBX VOIP Gateway NC5200I
- 10000 Set / Sets per Month
- Shenzhen, Yantian, Shekou
- T/T L/C D/P D/A Credit Card PayPal Other Cash
- 25 days
- RF Testing Wire Cable Assembly SMA Male Female connector
- 50 Watt Dummy Load/Termination Low PIM3 -150dBc N male/female
- high power good PIM -150dBc RF Coaxial Fixed Dummy Load/Termination 200W
- good low PIM3 -150dBc RF Coaxial Fixed Dummy Load/Termination 50W
- 800-2500MHz 3x2 3 in 2 out Hybrid Combiner n female type DC-3Ghz
- RF 800-2700MHz 2 in 1 out 2x1 3dB Hybrid Coupler Combiner N Female type
Product Details
Brand Name: | Genew | Place of Origin: | China | Model Number: | Nubiz NC5200I |
Product Description
* Integrated, Multi-Service Solution for Small and Medium-sized Enterprise;
NC5200I is an all-in-one box solution designed especially for small and medium size enterprises to meet their increasingly diverse demands of communication service. Integrated with various kinds of advanced TDM, VoIP and mobile technologies in communication field, and relying on the existing enterprise intranet, NC5200I provides an integrative multi-service communication platform to help enterprises to save IT management cost, establish better corporate image and improve work efficiency. At the same time, NC5200I provides a perfect solution for enterprise-oriented operators.
Using advanced software & hardware technology and carrier-class design, NC5200I performs with high reliability. The system which uses high-performance CPU and DSP, embedded real-time operating system and efficient algorithm, processes outstanding properties. With multiple plug-in modules, NC5200I can support many kinds of interface board, provide different services according to different needs, and expand capacity easily.
NC5200I support carrier-class redundant borad and redundant network, any nods in case of disaster or damage, the system standby switchover in time to ensure the normal operation of the system.
On network side, in order to realize the interoperation between enterprise and public network, NC5200I is equipped with the in-built trunk gateway function. For the branches of enterprise, multi-NC5200I can be separately deployed in different places, and interconnected with each other through intranet; for temporary office, the
office telephone can be linked directly by IAD which with FXO interfaces. With NC5200I, branches in different places unifying the dialing plan, enterprise can save a large amount of long-distant telephone charge.
NC5200I which supports comprehensive basic services, rich supplementary service, along with SM, fax and other digital services, can meet the diverse need of
enterprise and satisfy the customers to the utmost. Meanwhile, the system also goes with matched servers, providing more flexible value-added services including voice mail, fax, call center, operator console, dispatch system, etc.
System design
* 2U 19” Box with carrier-class design
* High-performance CPU,FPGA and DSP chips
* Distributive modularized software architecture with professional operating system
Models | 10 | 20 | 50 | 100 | 240 |
Mounting: | Rack 19'' 2U | ||||
Materials: | Steel - Black /Red Front panel personalized on requests | ||||
Dimensions (WxHxD): | 482mm x 520mm 88mm (2U) | ||||
Frontal Panel | 1 Power-ON, 1 Reset, signaling led | ||||
Cooling: | 4 x 8cm Fan Low Noise | ||||
Graphic Board: | chipset VIA | chipset intel 946GZ | |||
LAN: | |||||
Audio: | integrata AC97 | ||||
CPU | mITX 1000 | mITX 1300 | P4/C | Core2DUO | Core2Quad |
RAM | 1GB | 1GB | 2GB | 4GB | |
HDD/DOM | 2GB | 4GB | 8GB | ||
CF/ changeble on the frontal panel | 2GB | 4GB | |||
HDD/SSD | / | / | 8GB | 32GB | 64GB |
N° MAX CH suggested | 20 | 40 | 100 | 200 | 512 |
N° MAX FAX suggested | 1 | 3 | 6 | 18 | 39 |
Power supply | AC 220V | ||||
Batteries | 1x7Ah 12v | 2x7Ah 24v | |||
Extensions | 2x PCI | 3 x PCI |
MAIN SPECIFICATIONS AND ADVANTAGES
No limits for licences and numbers of terminals connectable to the PBX;
No licences are required to install terminals;
Every Sip standard device can be set up to the IP PBX;
The System is able to manage IP internal phones and it interacts with traditional phone by:
Analogue Ports;
Digital Ports (BRI and PRI);
High performances mobile extensions;
Unified messaging gateway to third parts chat line.
The System interacts with IP terminals such as IP Door phones, conference call systems, audio pagers, video survey, etc;
It is able to interact with building automation system (door opening, lighting control, thermo plant management, power consumption management, alarm, events, etc.);
It allows to customize services by the NFC technology;
Several software modules equipped;
On-Line manuals based on WiKi technology.

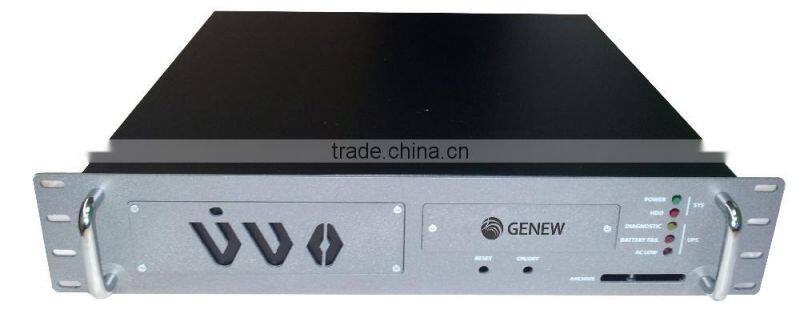

Front Panel

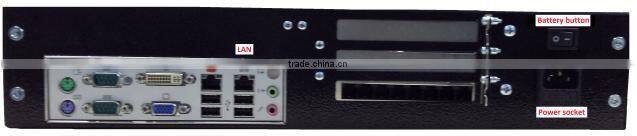

Rear Panel
In case of failure of the Primary PBX, the Spare one will resume to become primary.
Continuously on line synchronization reply the primary configuration parameters on Spare one.
Packaging:
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1 End-to-End networking solutions that integrate various functionality and technologies to deliver multiple revenue-generating services either on centralized or distributed platform, while reducing network complexity to enable seamless migration and evolution to future technologies.
2 Professional technical services focused on customized and innovative capabilities to reduce operating expenses and promote investment protection.
3 Unprecedented opportunities to leverage on what are available now, infra-wise and resource-wise, to deploy carrier-grade smart solutions and cloud-network services as complement or enhancement to existing services.
4 Advanced product solutions such as IMS, OTN, GPON, MSAN, etc., backed by strong R&D and Product Management capabilities, support and initiatives, tailored to both general and specific requirements and applications to reinforce the operators’ and service providers’ competitive edge on the ever challenging telecom market.
5 Future-proof technologies and solutions, with emphasis on IP-based services and applications, to deliver key infrastructure products with attractive growth potential in various markets worldwide.
GENEW's Service team is committed to our customers' success by delivering exceptional service in the areas of planning, Deployment, Support and Customer Services for high performance IP-based voice, data and video networks covering wireline, wireless and broadband technologies.
Our professional service team is dedicated to helping our customers introduce new and innovative applications and end-user services to market. GENEW maintains a strong global presence, operating Network Technical Response and Service Engineering Centers in China, India, Philippines, Japan, Middle East and Europe etc. These centers have highly skilled system engineering resource ready to deliver technical and consultative support -ensuring that our customers' networks function at maximum performance. Our services portfolio includes four categories; Planning, Deployment, Support and Customer Service. Deployment and Support Services are GENEW's product-related services that help our customers manage their networks efficiently and in a cost-effective manner.
