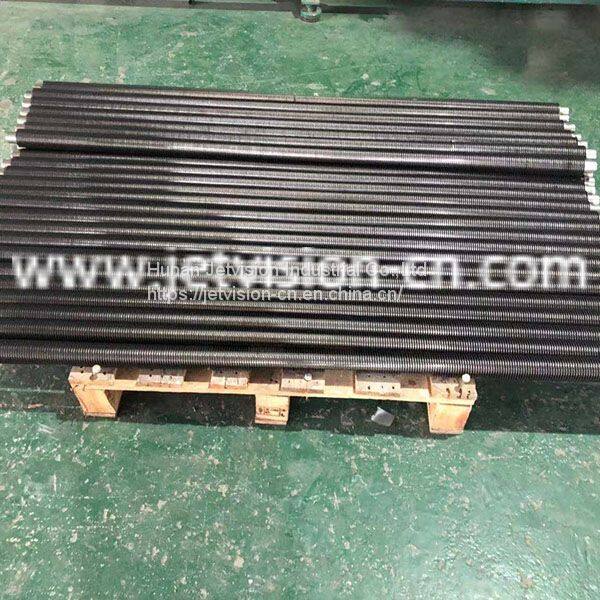

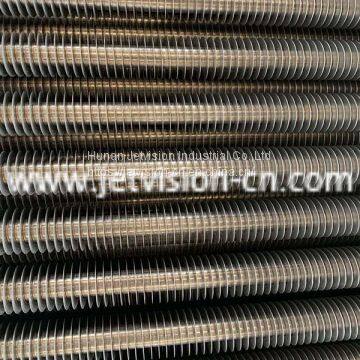

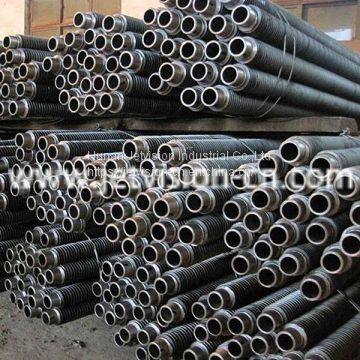

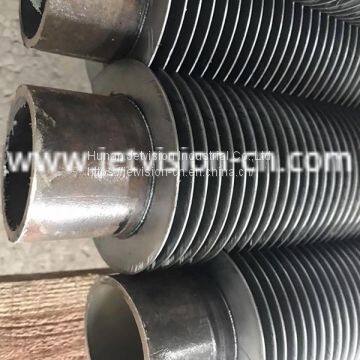

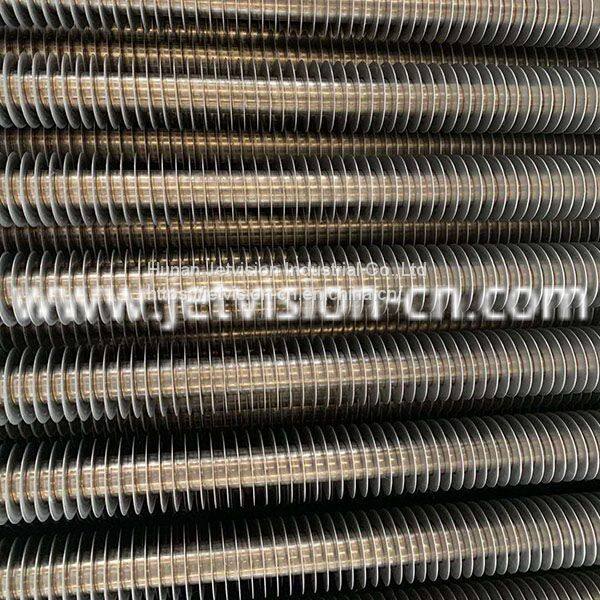

Heat Exchanger Carbon Alloy Aluminium and Stainless Spiral Fin Tube
Spiral finned tube is a high-efficiency heat transfer element with spiral fins. Its heat transfer area is several times to tens of times that of the light pipe, which can enhance heat transfer, reduce flow resistance, and reduce metal consumption, thereby improving the economics and operating reliability of heat exchange equipment. At present, spiral finned tubes have been widely used in various boilers. Spiral finned tubes can be manufactured by a variety of methods. At present, finned tubes used in heat exchange equipment such as boilers and pressure vessels mainly have the following manufacturing methods: high-frequency resistance welding spiral finned tubes, brazed spiral fins Tube and integral spiral finned tube.
Product Specification :
Product Name |
Spiral Fin Tube |
Application |
It is widely used for Heat exchanger ,Air-conditioner ,Refrigerator,Economizer |
Material of base pipe |
Carbon steel,Alloy steel, Aluminium or Stainless |
Material of fins |
Carbon steel,Alloy steel,Aluminium or Stainless |
Type of base pipe |
Seamlesss,Welded |
Type of fins |
G ,L extruded.LL,KL |
OD of Base pipes |
15mm-219mm |
WT of base pipes |
1.5-6mm |
Height of fins |
8mm-30mm |
WT of fins |
0.8mm-3.0mm |
Pitch of fins |
2.3m-20mm |
Length of blank area |
according to Customer's request. |
Length of finned tubes |
≤23m |
Advantages:
Advantages of using finned tubes:
1) Increase the heat exchange area in the effective space and improve the heat transfer effect.
2) Reduce the space occupied by the heat transfer surface and reduce its volume, especially suitable for quick installation of boilers.
3) Reduce equipment cost and improve equipment safety.
4) The operating cost is reduced due to the reduction of the water pressure drop.
5) The rigidity of the finned tube is increased, and the seismic resistance of the tube is improved.
Inspection & Test
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
2.100% Dimension & Visual Examination |
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
6.Straightness Test (optional) |
7.Roughness Test (optional) |
8.Intergranular Corrosion Test(optional) |
9.Impact Test (optional) |
10.Grain Size Determinations (optional) |
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
Packaging & Delivery
Packing Details : Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Delivery Details : By sea with FCL/LCL contianer or in bulk ;by airfreight, by railway
