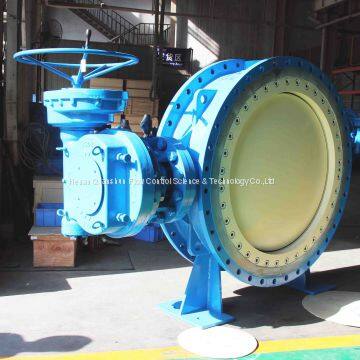

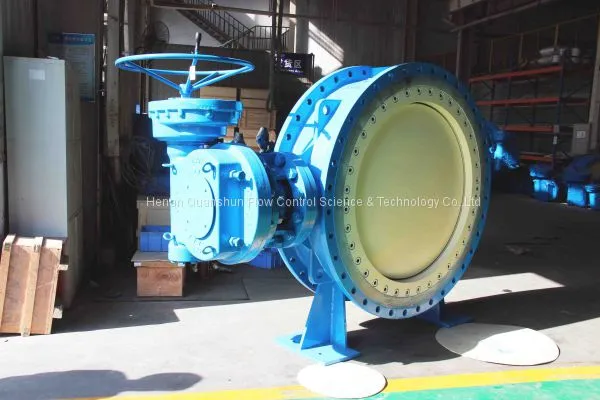

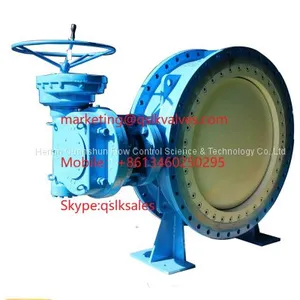

Spherical Disc High Performance Butterfly Valve For Heat Supply Network is developed based on the mechanism of the butterfly valve and segment ball valve . The special butterfly valve widely installed at Heat outlet water pipe and heat network circulating water pipeline .This kind of special butterfly valves got many likes of the heat power plant.
BENIFITS
1.Designed with bidirectional sealing structure,the installation of the high performance butterfly valve will not be restricted by the direction of the fluid.
2.Since the metal seated bi-directional sealing butterfly valve is offered with self-sealing device,reliable sealing performance can be realized under the pressure from medium.
3.Powerful specific pressure of sealing can be obtained the valve is installed on the direction in opposite to that of the fluid.The pressure acts on the valve seat of the bidirectional spherical disc valve. The contact area of the point action is annular.
4.The spherical disc butterfly valve has long service life due to wear compensation.
5.The unique rotational structure ,as well as the sphere-conical sealing surface of the valve seat,makes for the cleaning function the solid particle will be crushed when the worm gear operated bidirectional butterfly valve is opened or closed.
6. Really metal seated design ,especially suitable for non-clean industrial waters .
TECHNICAL PARAMETERS
Body material ：WCB
Sealing material：Hard alloy
Connecting type：Flange
Operating type：Worm gear

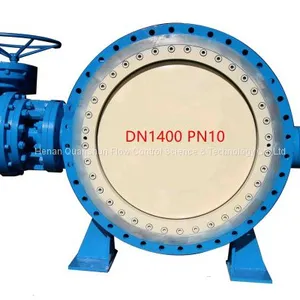

Size ：DN1400
Pressure：PN10

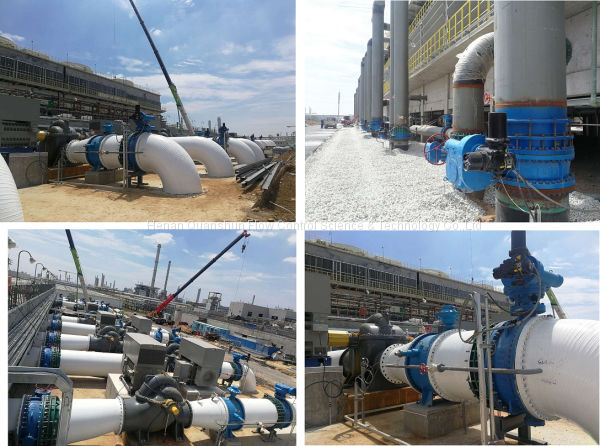

APPLICATION
Heat outlet water pipe
Heat network circulating water pipeline
Municipal Engineering
Circulating water system
Feed water system
Water treatment system
Fire extinguisher system
